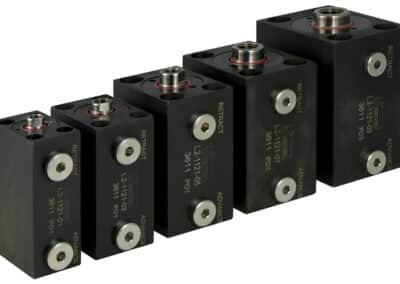

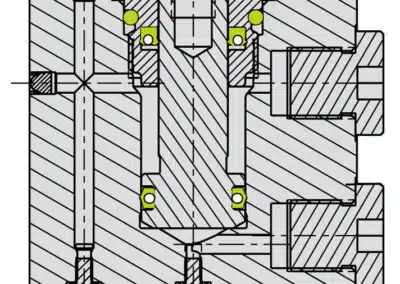

Combination Block
7MPa Cylinders
Bottom Manifold and Standard Side Porting
- Available in 5 sizes with 2 stroke lengths for each size.
- Flush top design makes this cylinder ideal for use in close push or pull applications.

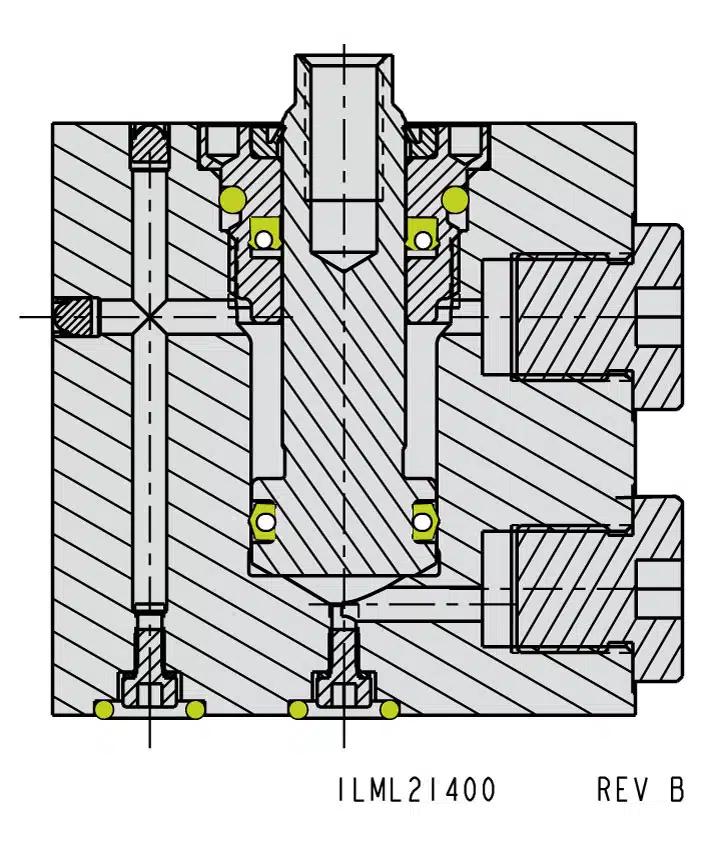

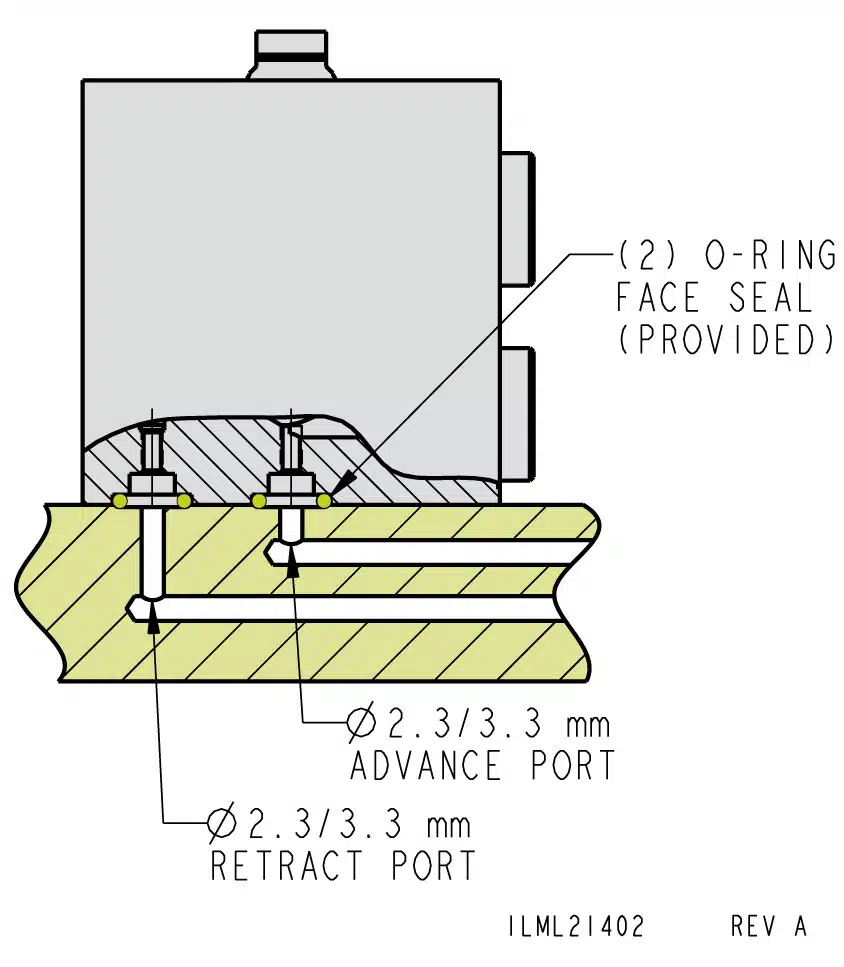

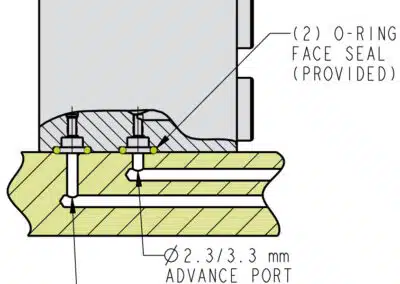

- Easy manifold mount (O-ring) to push or pull from the fixture surface.
- Standard G 1/4 side ports provide easy access to standard fitting alternate ports.
- End manifold provides an alternative to other side manifold block cylinders.
- Stock end attachments available or make your own.
* Cylinder capacities are listed at 7 MPa (70 bar) maximum operating pressure. Minimum operating pressure is 1 MPa (10 bar). The output force is adjustable by varying hydraulic system pressure. To determine the approximate output force for your application, multiply the Piston Area times Your System Operating Pressure. Actual force may vary slightly due to friction loss, seal and wiper drag.
| Model No. | Clamp Capacity (kN) Extend | Clamp Capacity (kN) Retract | Stroke (mm) | Body Size (mm) | Minimum Length (mm) | Piston Area (cm²) Extend | Piston Area (cm²) Retract | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) |
|---|---|---|---|---|---|---|---|---|---|
| L2-1121-00 | 2.0 | 1.1 | 16 | 35 X 60 | 68 | 2.9 | 1.6 | 4.6 | 2.5 |
| L2-1121-01 | 2.0 | 1.1 | 50 | 35 X 60 | 102 | 2.9 | 1.6 | 14.3 | 7.9 |
| L2-1121-02 | 3.6 | 2.2 | 20 | 45 X 65 | 71 | 5.1 | 3.1 | 10.1 | 6.2 |
| L2-1121-03 | 3.6 | 2.2 | 50 | 45 X 65 | 101 | 5.1 | 3.1 | 25.3 | 15.4 |
| L2-1121-04 | 5.5 | 3.6 | 25 | 55 X 75 | 85 | 7.9 | 5.1 | 19.8 | 12.7 |
| L2-1121-05 | 5.5 | 3.6 | 50 | 55 X 75 | 110 | 7.9 | 5.1 | 39.6 | 25.3 |
| L2-1121-06 | 9.4 | 5.8 | 25 | 63 X 85 | 89 | 13.4 | 8.3 | 33.5 | 20.8 |
| L2-1121-07 | 9.4 | 5.8 | 50 | 63 X 85 | 114 | 13.4 | 8.3 | 66.9 | 41.6 |
| L2-1121-08 | 14.2 | 8.7 | 25 | 75 X 100 | 100 | 20.3 | 12.4 | 50.7 | 30.9 |
| L2-1121-09 | 14.2 | 8.7 | 50 | 75 X 100 | 125 | 20.3 | 12.4 | 101.3 | 61.8 |

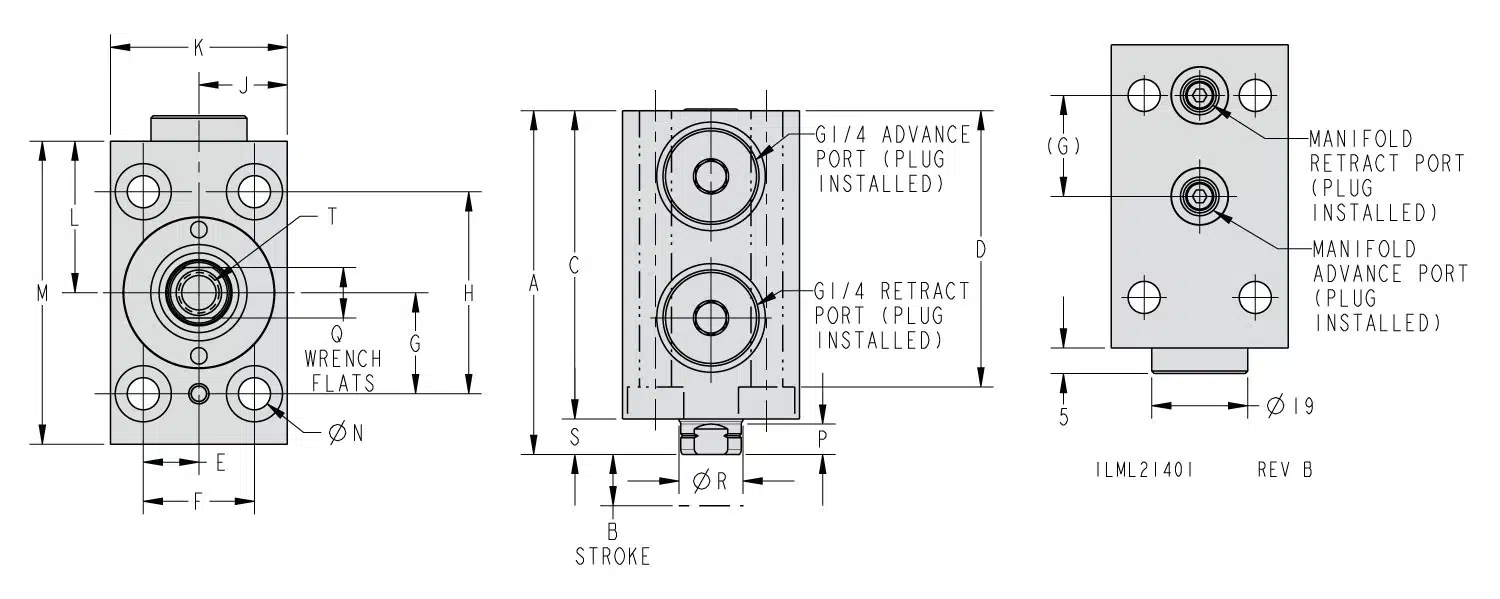

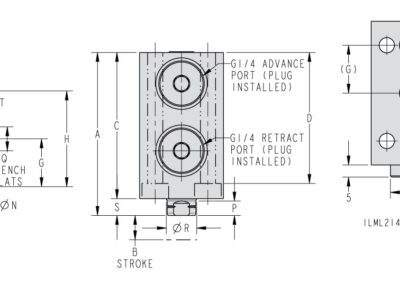

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L2-1121-00 | 68 | 16 | 61 | 54.6 | 11 | 22 | 20 | 40 | 17.5 | 35 | 30 | 60 | 6.3 | 6 | 10 | 12.7 | 7 | M8 X 1.25 X 15 |
| L2-1121-01 | 102 | 50 | 95 | 88.6 | 11 | 22 | 20 | 40 | 17.5 | 35 | 30 | 60 | 6.3 | 6 | 10 | 12.7 | 7 | M8 X 1.25 X 15 |
| L2-1121-02 | 71 | 20 | 64 | 55.5 | 15 | 30 | 25 | 50 | 22.5 | 45 | 32.5 | 65 | 8.5 | 6 | 13 | 15.8 | 7 | M10 X 1.5 X 15 |
| L2-1121-03 | 101 | 50 | 94 | 85.5 | 15 | 30 | 25 | 50 | 22.5 | 45 | 32.5 | 65 | 8.5 | 6 | 13 | 15.8 | 7 | M10 X 1.5 X 15 |
| L2-1121-04 | 85 | 25 | 75 | 64.5 | 17.5 | 35 | 27.5 | 55 | 27.5 | 55 | 37.5 | 75 | 10.5 | 9 | 16 | 19 | 10 | M12 X 1.75 X 15 |
| L2-1121-05 | 110 | 50 | 100 | 89.5 | 17.5 | 35 | 27.5 | 55 | 27.5 | 55 | 37.5 | 75 | 10.5 | 9 | 16 | 19 | 10 | M12 X 1.75 X 15 |
| L2-1121-06 | 89 | 25 | 79 | 68.5 | 20 | 40 | 31.5 | 63 | 31.5 | 63 | 42.5 | 85 | 10.5 | 9 | 22 | 25.4 | 10 | M16 X 2 X 25 |
| L2-1121-07 | 114 | 50 | 104 | 93.5 | 20 | 40 | 31.5 | 63 | 31.5 | 63 | 42.5 | 85 | 10.5 | 9 | 22 | 25.4 | 10 | M16 X 2 X 25 |
| L2-1121-08 | 100 | 25 | 90 | 77 | 22.5 | 45 | 38 | 76 | 37.5 | 75 | 50 | 100 | 13 | 9 | 27 | 31.7 | 10 | M20 X 2.5 X 30 |
| L2-1121-09 | 125 | 50 | 115 | 102 | 22.5 | 45 | 38 | 76 | 37.5 | 75 | 50 | 100 | 13 | 9 | 27 | 31.7 | 10 | M20 X 2.5 X 30 |
