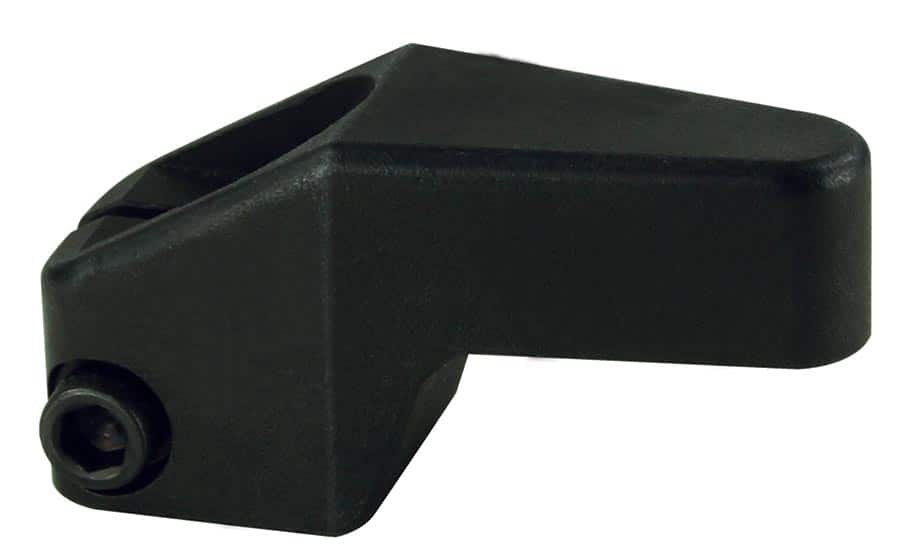

Swing Clamp Arms, Upreach
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.

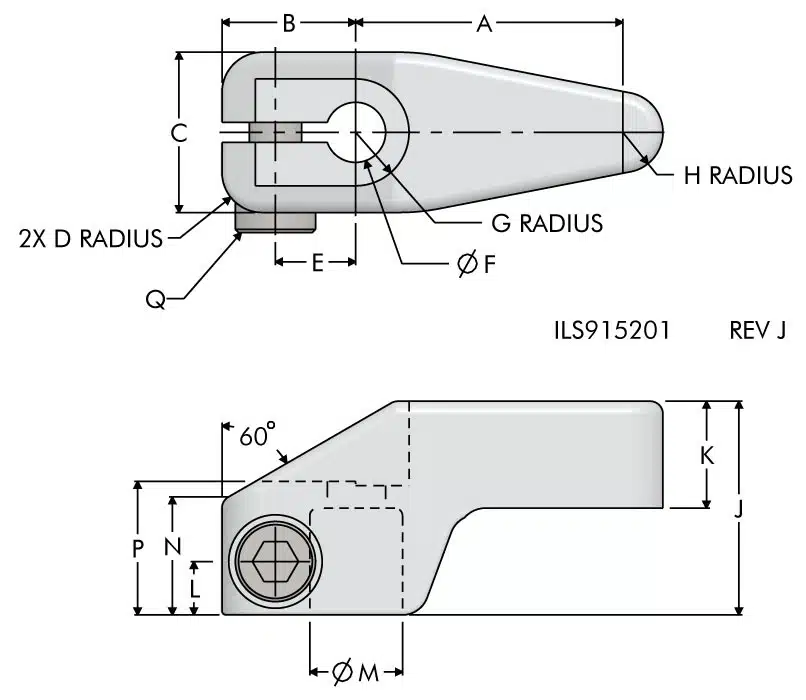

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5205-06 | 450 | 1.25 | 0.63 | 0.75 | 0.19 | 0.38 | 0.28 | 0.25 | 0.19 | 1.00 | 0.50 | 0.25 | 0.4380 / 0.4400 | 0.55 | 0.63 | 1/4 - 28 |
| 91-5209-06 | 1100 | 1.75 | 0.75 | 1.00 | 0.25 | 0.50 | 0.41 | 0.34 | 0.25 | 1.38 | 0.66 | 0.32 | 0.625 / 0.627 | 0.80 | 0.88 | 5/16 - 24 |
| 91-5213-06 | 2600 | 2.50 | 1.03 | 1.38 | 0.38 | 0.66 | 0.53 | 0.50 | 0.38 | 2.00 | 1.00 | 0.44 | 0.875 / 0.877 | 1.15 | 1.25 | 3/8 - 24 |
| 91-5218-06 | 5000 | 3.00 | 1.50 | 2.00 | 0.56 | 0.97 | 0.66 | 0.63 | 0.56 | 2.75 | 1.31 | 0.53 | 1.250 / 1.252 | 1.66 | 1.75 | 5/8 - 18 |
