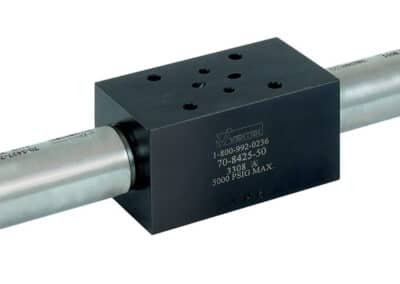

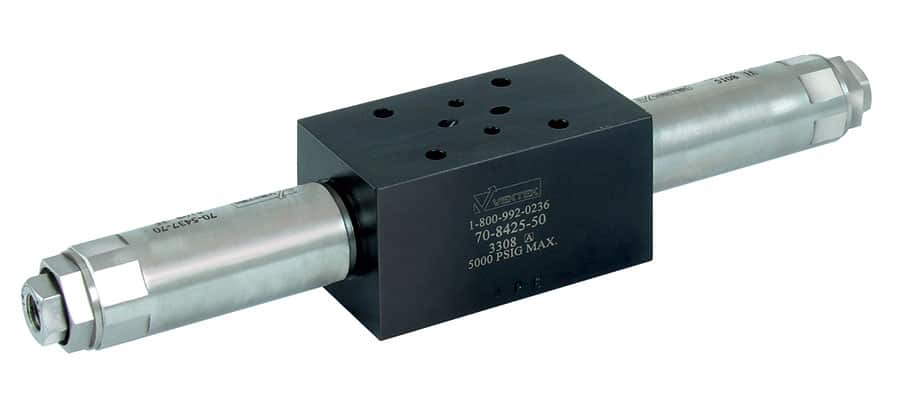

Pressure Reducing Valve Control Block – Dual
Accessory Valves
- Control pressure independently on both the clamp and unclamp side of the fixture regardless of pump pressure setting.
- Eliminate the wait for full system pressure to finish cycling workholding components.
- For use in double or single acting systems.
- DO3 Mounting, use on pump stack or as a remote mounted valve.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum).
* Maximum Inlet Pressure for Pressure Reducing Cartridges is 5,000 psi.
| Model No. | Inlet Pressure | Set Pressure Range | Repeatability |
|---|---|---|---|
| 70-8425-50 | 5000 psi | 750 - 4500 psi | ± 7% |
| 70-8425-53 | < 3000 psi / > 3000 psi | 150 - 900 psi / 300 - 900 psi | ± 10% |

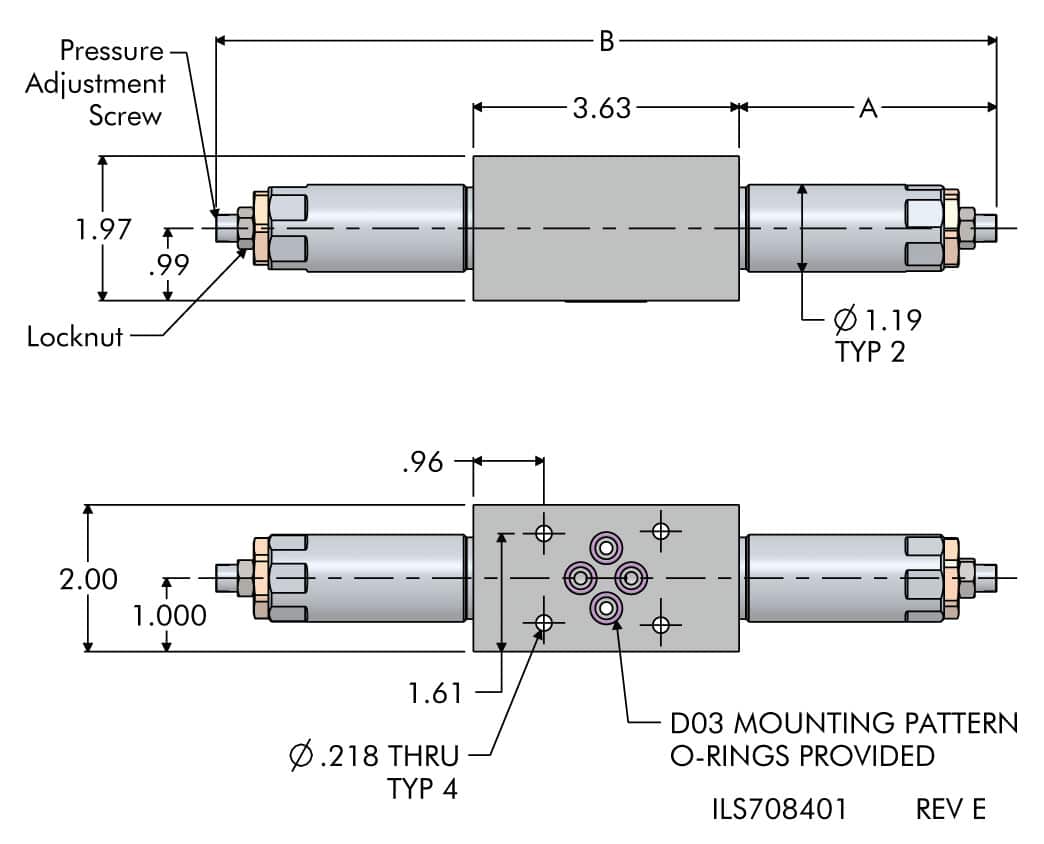

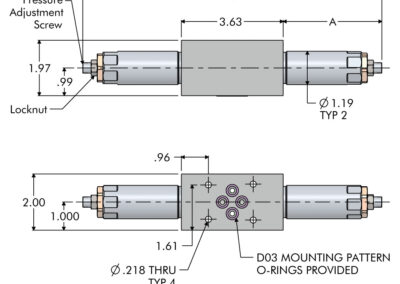

| Model No. | A | B |
|---|---|---|
| 70-8425-50 | 3.5 | 10.643 |
| 70-8425-53 | 4.2 | 12.117 |
