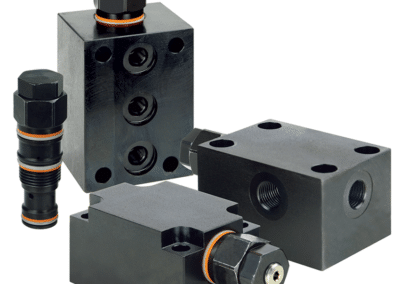

Pilot/Manual Operated Check Valves
Metric Accessory Valves
- Cartridge and Manifold Mount Versions.
- Sealed pilot piston eliminates cross circuit leakage.
- 5:1 Ratio of Pilot to Check pressure for release.
- Unclamp device sequencer, provides a way to sequence single circuit unclamp timing.
- Flows up to 5.7 l/min at 350 bar maximum pressure.

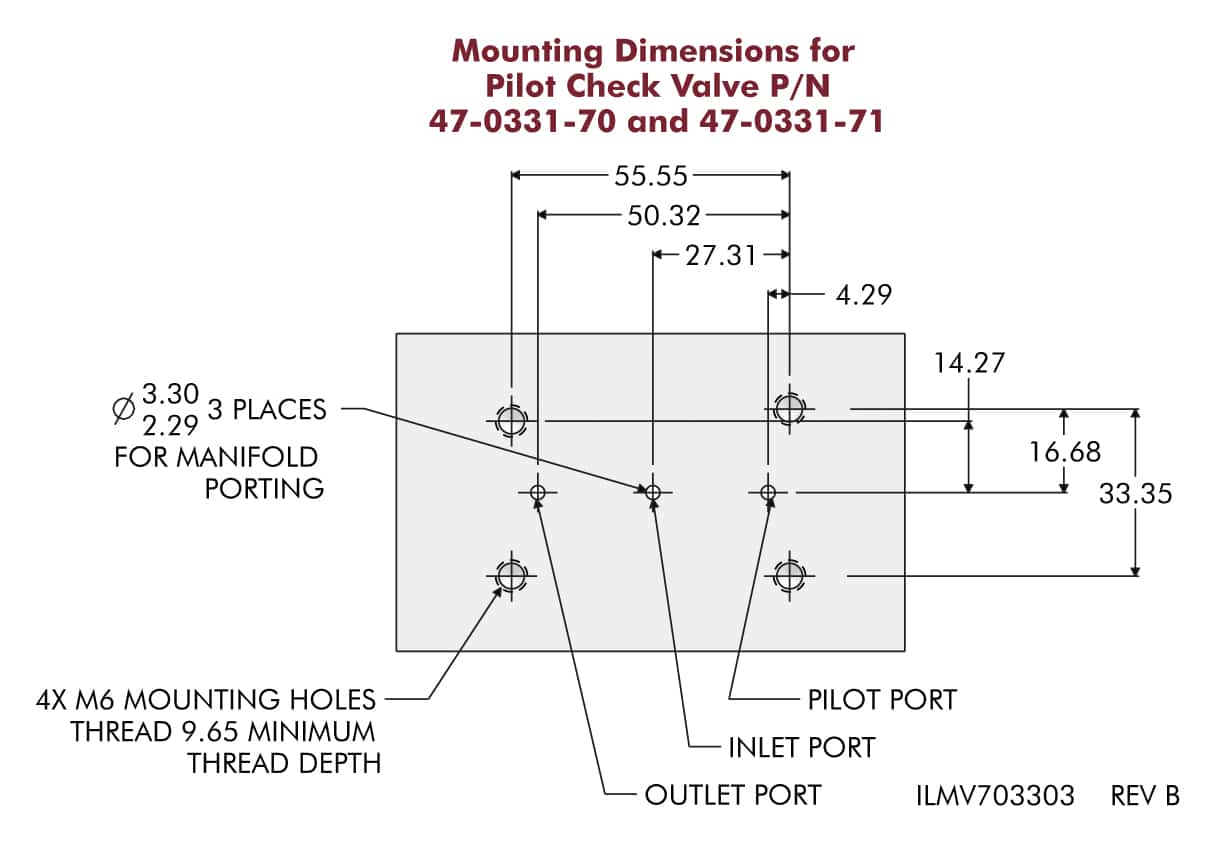

For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.

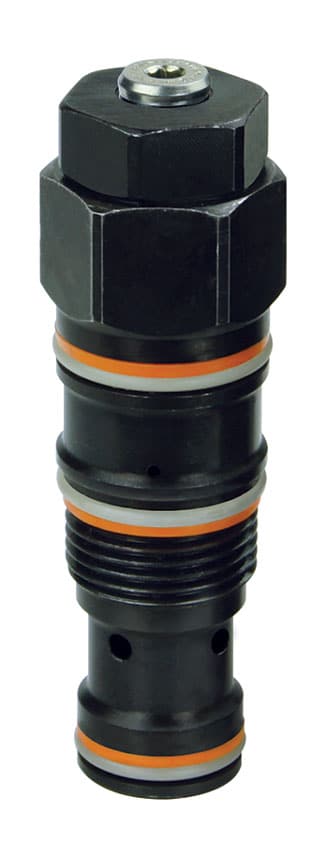

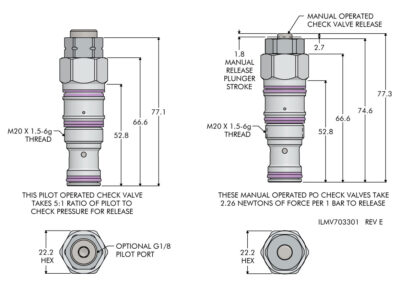

Cartridge Mount Pilot and Manual Operated Check Valves
- Sealed pilot piston eliminates cross circuit leakage.
- Flows up to 5.7 l/min at 350 bar maximum pressure.
Cavity Dimensions and Multi-Step Carbide Cavity Contour Tool with Tap Kit
| Model No. | Mounting Style | Action |
|---|---|---|
| 47-0331-70 | Manifold Only | Pilot Operated Check Valve |
| 47-0331-71 | Manifold - G 1/4 | Pilot Operated Check Valve |
| 47-0331-72 | Manifold - G 1/4, Manual | Pilot Operated Check Valve |
| 47-0331-73 | Manifold Only, Manual | Pilot Operated Check Valve |

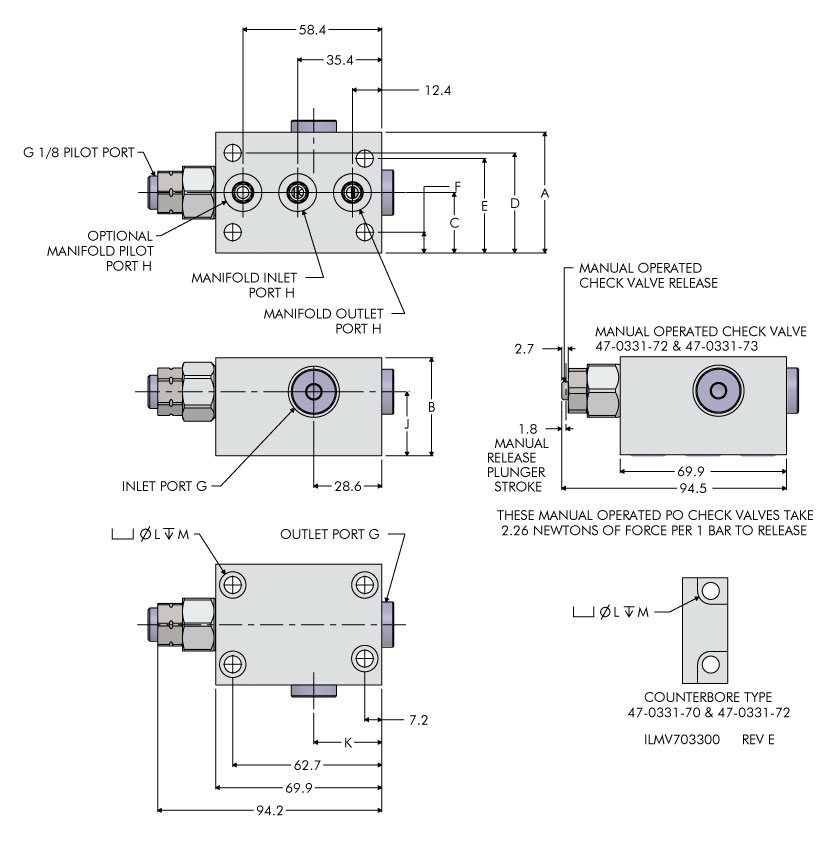

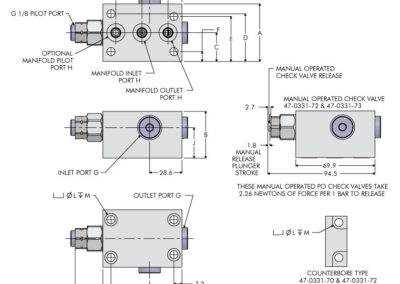

| Model No. | Mounting Style | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47-0331-70 | Manifold Only | 44.5 | 38.1 | 22.2 | 38.9 | 36.5 | 5.5 | N/A | N/A | 23.8 | N/A | 7.1 | 11.1 |
| 47-0331-71 | Manifold - G 1/4 | 50.8 | 41.3 | 25.4 | 42.1 | 39.7 | 8.7 | G 1/4 | M8 Plug | 26.9 | 28.6 | 7.1 | 11.1 |
| 47-0331-72 | Manifold - G 1/4, Manual | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 47-0331-73 | Manifold Only, Manual | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Model No. | Mounting Style | Action |
|---|---|---|
| 47-0333-70 | Cartridge | Pilot Operated Check Valve |
| 47-0333-71 | Cartridge | Manual Operated Check Valve |
| Model No. | Description |
|---|---|
| 62-7060-00 | KIT, MULTISTEP CAVITY TOOL, T-11A DRILL, REAMER, M20X1.5 TAP |
