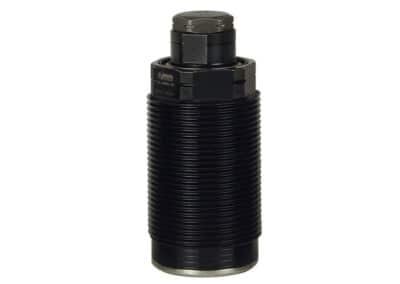

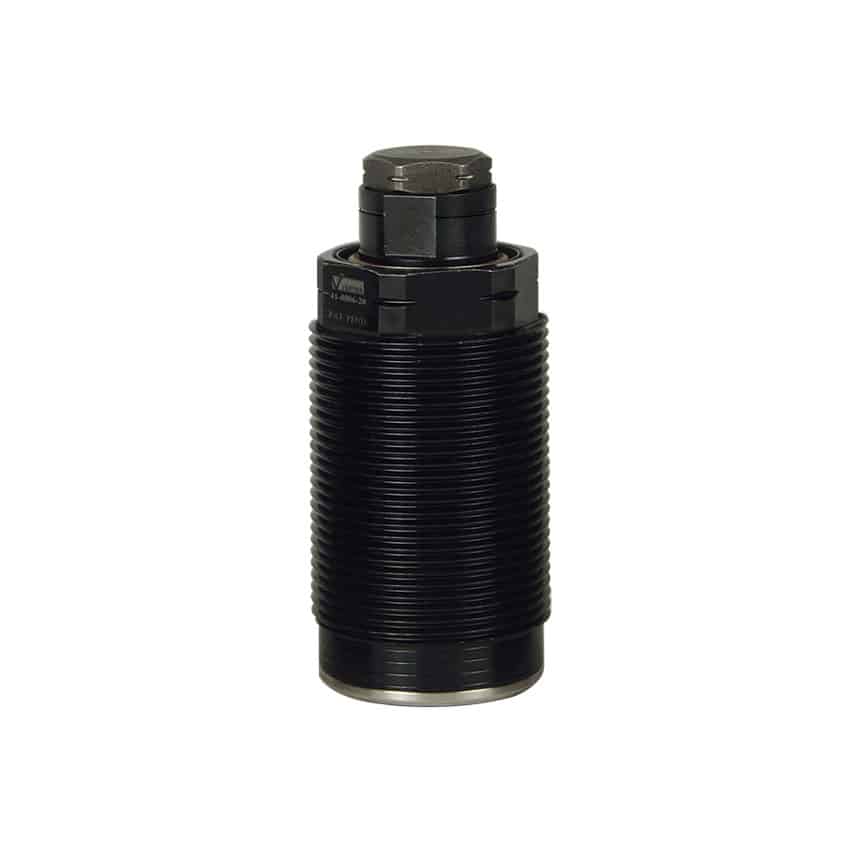

High Capacity, Fluid Advance Work Supports, Cartridge
Work Supports
- Confirm capacity of item selected.
- Note the sealing surface finish requirements.
- Minimum depth specification represents the nominal depth of the standard Vektek base dimension.
- Confirm cavity drawing is appropriate for the model number used.
- Note specified thread depth when cutting threads.
- When using a bottoming tap tool, modifications may be required.
- When hand tapping threads, perpendicularity is essential.
* Support capacities are listed at 350 bar (35 MPa) maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart.
** Restrict flow rate to a maximum of 2.13 l/min.
| Model No. | Direct Replacement for Older Model | Support Capacity (kN) | Mounting Style | Contact Force (N) | Stroke (mm) | Retracted Height (mm) | Oil Capacity (cm³) |
|---|---|---|---|---|---|---|---|
| 41-0704-10 | N/A | 4.4 High Capacity | Cartridge | 2-18 | 6.5 | 41.3 | 0.49 |
| 41-0706-10 | 41-0071-04 | 8.9 High Capacity | Cartridge | 4.4 - 26.7 | 6.5 | 54.2 | 0.8 |
| 41-0706-16 | 41-0071-14 | 8.9 High Capacity Long Stroke | Cartridge | 4.4 - 26.7 | 12.5 | 67 | 1.2 |
| 41-0706-17 | 41-0171-12 | 8.9 High Capacity Long Stroke | Cartridge | 4.4 - 26.7 | 12.5 | 67 | 1.2 |
| 41-0708-10 | 41-0071-03 | 17.8 High Capacity | Cartridge | 13.5 - 44.5 | 6.5 | 72.5 | 1.9 |
| 41-0708-16 | 41-0071-13 | 17.8 High Capacity Long Stroke | Cartridge | 13.5 - 44.5 | 12.5 | 85.2 | 2.5 |
| 41-0710-10 | N/A | 35.6 High Capacity | Cartridge | 18-57.8 | 15.8 | 101.6 | 9.34 |

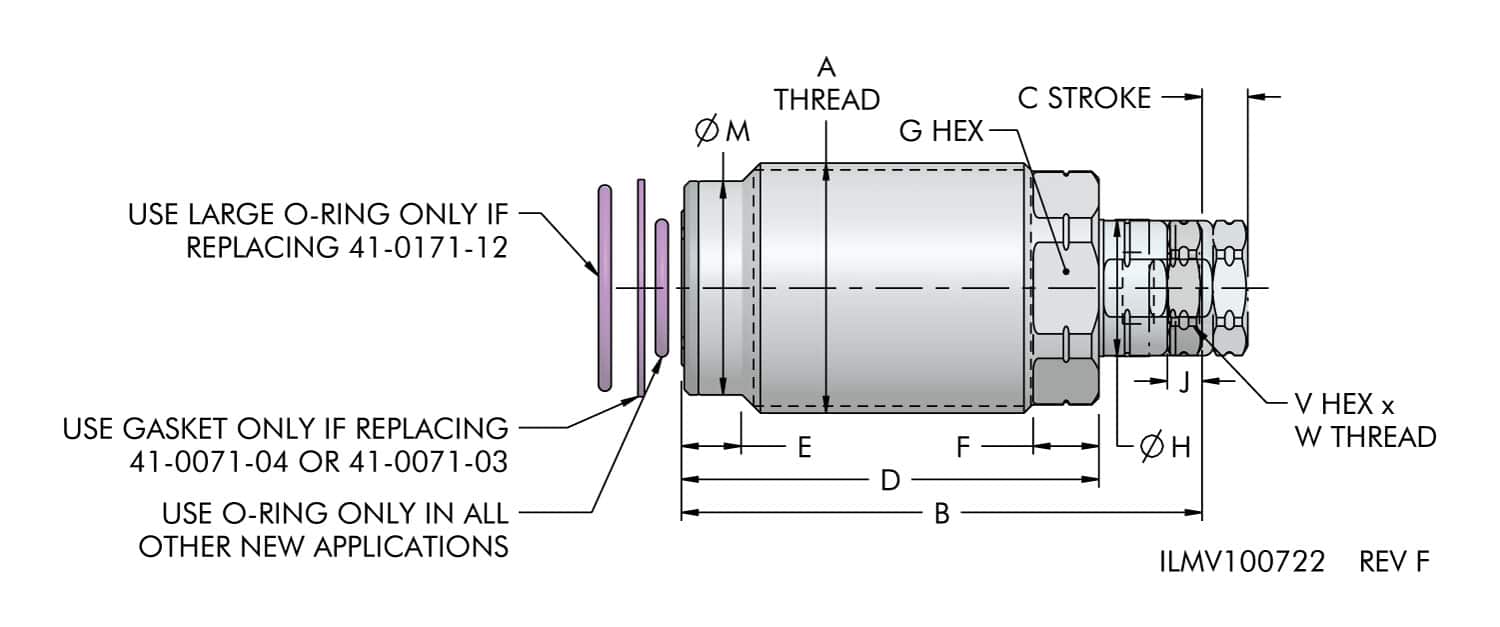

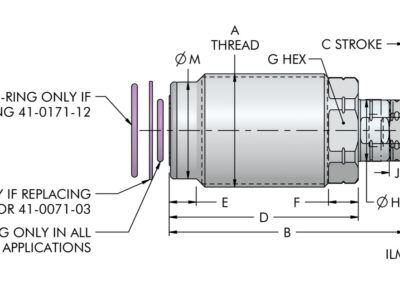

| Model No. | A | B | C | D | E | F | G | H | J | M | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0704-10 | M20 X 1.5 | 41.3 | 6.5 | 33.6 | 3.2 | 5.3 | 18 | 9.5 | 2.8 | 18.1 | 7 | M6 X 1 X 3.5 |
| 41-0706-10 | M26 X 1.5 | 54.2 | 6.5 | 43.7 | 6.3 | 5.5 | 23 | 14.3 | 3.6 | 23.3 | 13 | M8 X 1.25 X 5 |
| 41-0706-16 | M26 X 1.5 | 66.9 | 12.5 | 55.4 | 6.3 | 5.5 | 23 | 14.3 | 3.6 | 23.3 | 13 | M10 X 1.5 X 5 |
| 41-0706-17 | M30 X 1.5 | 66.9 | 12.5 | 55.4 | 9 | 5.5 | 23 | 14.3 | 3.6 | 28.3 | 13 | M10 X 1.5 X 5 |
| 41-0708-10 | M35 X 1.5 | 72.5 | 6.5 | 58.1 | 8.5 | 9.3 | 30 | 19 | 4.8 | 29.7 | 17 | M12 X 1.75 X 6.5 |
| 41-0708-16 | M35 X 1.5 | 85.2 | 12.5 | 67.9 | 8.5 | 9.3 | 30 | 19 | 4.8 | 29.7 | 17 | M12 X 1.75 X 6.5 |
| 41-0710-10 | M45 X 1.5 | 101.6 | 15.8 | 81.7 | 8.5 | 10.2 | 38 | 25.4 | 7.9 | 42.9 | 21 | M15 X 1 X 8 |

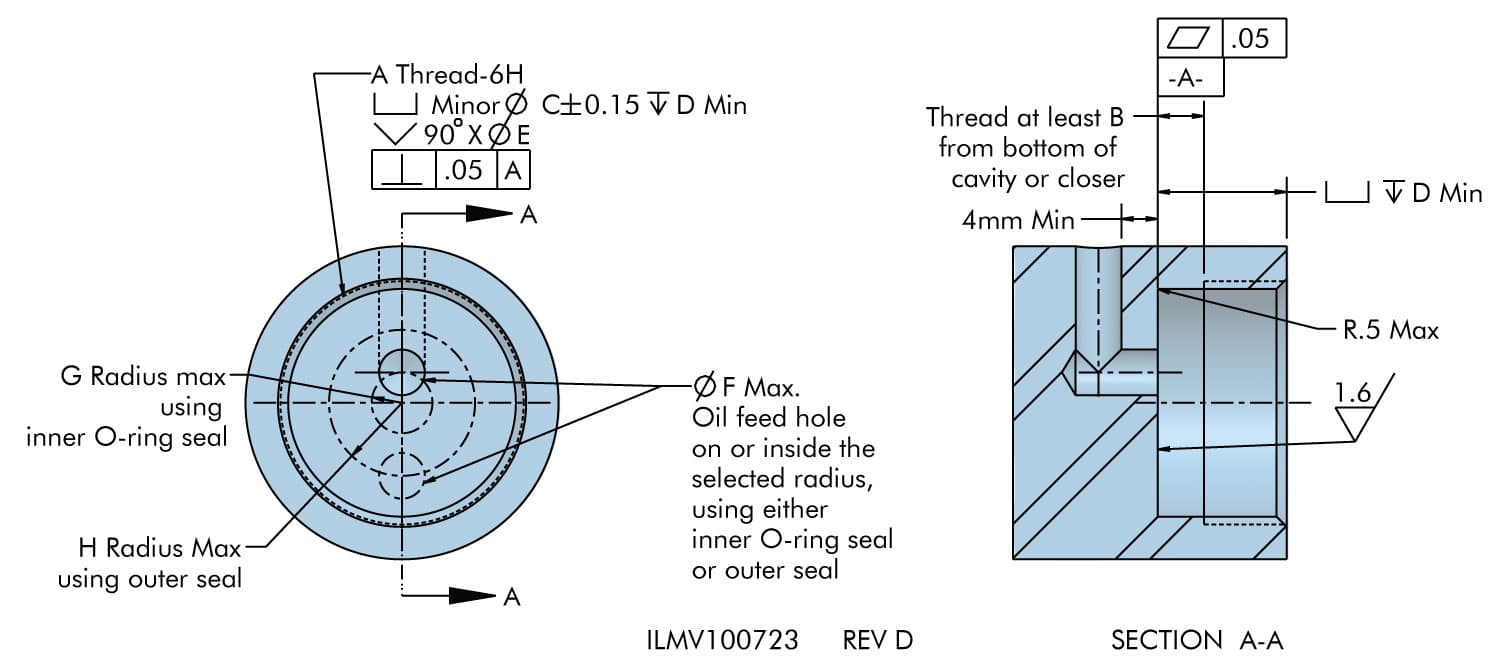

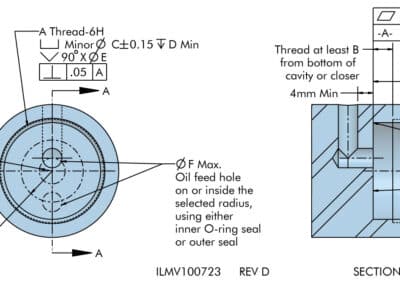

| Model No. | A | B | C | D | E | F | G | H | Installation Torque |
|---|---|---|---|---|---|---|---|---|---|
| 41-0704-10 | M20 X 1.5 | 2.6 | 18.5 | 10 | 21 | 3 | 2 | N/A | 28 N-m - Inner Seal / N/A - Outer Seal |
| 41-0706-10 | M26 X 1.5 | 4.3 | 24.5 | 13.5 | 27 | 5 | 3.2 | 6.5 | 50 N-m - Inner Seal / 40.5 N-m - Outer Seal |
| 41-0706-16 | M26 X 1.5 | 4.3 | 24.5 | 13.5 | 27 | 5 | 3.2 | 6.5 | 50 N-m - Inner Seal / 40.5 N-m - Outer Seal |
| 41-0706-17 | M30 X 1.5 | 4.3 | 28.5 | 13.5 | 31 | 5 | 3.2 | 9.1 | 50 N-m - Inner Seal / 50 N-m - Outer Seal |
| 41-0708-10 | M35 X 1.5 | 6.6 | 33.5 | 21.5 | 36 | 5 | 4.7 | 9.5 | 70 N-m - Inner Seal / 54 N-m - Outer Seal |
| 41-0708-16 | M35 X 1.5 | 6.6 | 33.5 | 21.5 | 36 | 5 | 4.7 | 9.5 | 70 N-m - Inner Seal / 54 N-m - Outer Seal |
| 41-0710-10 | M45 X 1.5 | 7.3 | 43.5 | 25.4 | 46 | 6.3 | 7.5 | N/A | 140 N-m - Inner Seal / N/A - Outer Seal |
| Model No. | Support Capacity (kN) | O-Ring Part Number | O-Ring Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| 41-0704-10 | 4.4 High Capacity | 39-0511-72 | 4.7 x 1.0 mm | 7.54 | 3.58 | 4.75 | 1.02 | M6 X 1 - 6G |
| 41-0706-10 | 8.9 High Capacity | 39-0510-59 | 6 X 1.5 mm | 9.75 | 5.0 | 6.05 | 1.19 | M8 X 1.25 - 6G |
| 41-0706-16 | 8.9 High Capacity Long Stroke | 39-0000-69 | 7.65 x 1.63 mm | 11.43 | 5.0 | 7.67 | 1.19 | M10 X 1.5 - 6G |
| 41-0706-17 | 8.9 High Capacity Long Stroke | 39-0000-69 | 7.65 x 1.63 mm | 11.43 | 5.0 | 7.67 | 1.19 | M10 X 1.5 - 6G |
| 41-0708-10 | 17.8 High Capacity | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 1.75 - 6G |
| 41-0708-16 | 17.8 High Capacity Long Stroke | 39-0020-09 | 9.25 x 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 1.75 - 6G |
| 41-0710-10 | 35.6 High Capacity | 39-0511-76 | 12 x 2 mm | 17.28 | 7.95 | 12.90 | 2.03 | M15 X 1 - 6G |
