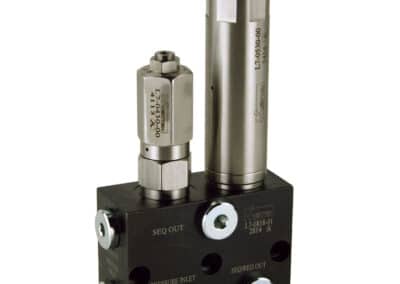

Combination Sequence/PRV Block
Low Pressure Accessory Valves
Efficient Space Saving Combination Sequence/PRV Block
- Control both timing and pressure with this dual purpose combination block.
- Common inlet port feeds both sequence and reducing valves.
- Use with single or double acting devices.
- Block includes standard Sequence and PRV cartridges.
- Direct acting poppet style valve construction.
- Sequence pressure adjustment range: 2.0 to 6.2 MPa (20 to 62 bar), PRV adjustment range: 1.0 – 6.2 MPa (10 to 62 bar).
- Elements spaced to accommodate Gauge for setup or trouble shooting.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum).
Order a Filter Plate to protect valves from debris (Model No. L7-0842-01)
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
NOTE: Maximum system flow rate is 5.7 l/m unless otherwise noted. Excess flow voids warranty.
| Model No. | Sequence Valve Model No. | Sequence Valve Set Pressure Range | PRV Model No. | PRV Set Pressure Range |
|---|---|---|---|---|
| L7-0818-01 | L7-0430-00 | 2.0 - 6.2 MPa | L7-0530-00 | 1.0 - 6.2 MPa |
