    Pneumatic Swing Clamps

    Standard Features

    • The use of NPN or PNP is determined by the customer for the device to be connected to the sensor.
    • 0.188″ Sensing Range.

    Kit Consists of Sensor and Cable:

    • 10 to 30V DC sensor for use in sensing position of swing clamp equipped with magnetic piston.
    • Switch-ON time <1.0 ms.
    • Switch-OFF time <0.8 ms.
    • One sensor required for each position to be sensed.
    • Cable is 196″ long and has an M8 x 1 plug connector on one end and bare wires on the other.

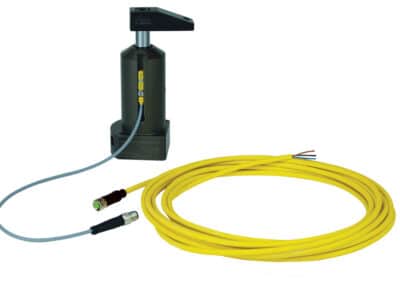

    Position Sensor shown attached to swing clamp.

    Model No.Description
    P6-2297-00PNP (Normally Open)
    P6-2297-01NPN (Normally Closed)
