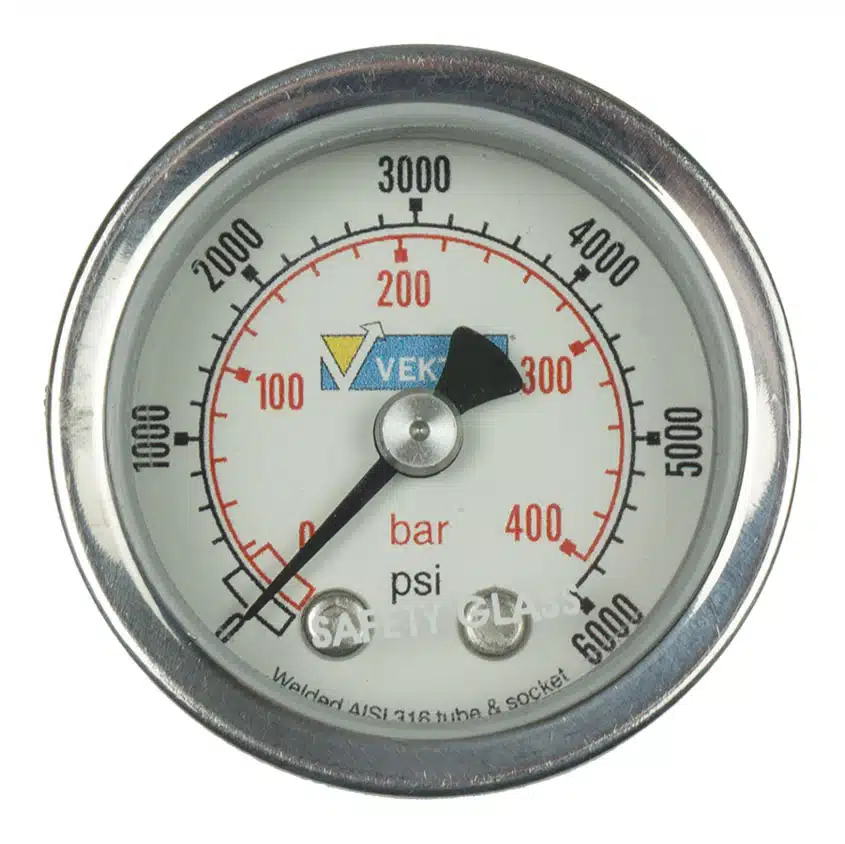

Back Mount Pressure Gauges
Hydraulic Gauges
- Liquid filled gauges with analog readouts.
- Avalible in 1,500, 5,000, 6,000 and 10,000 psi.
- Conform to ANSI standard B40.1 Grade B.
- SAE 4 male connection.
- Safety Glass Window.
To extend the life of Pressure Gauges, run your system at no more than 75% of the gauge scale.

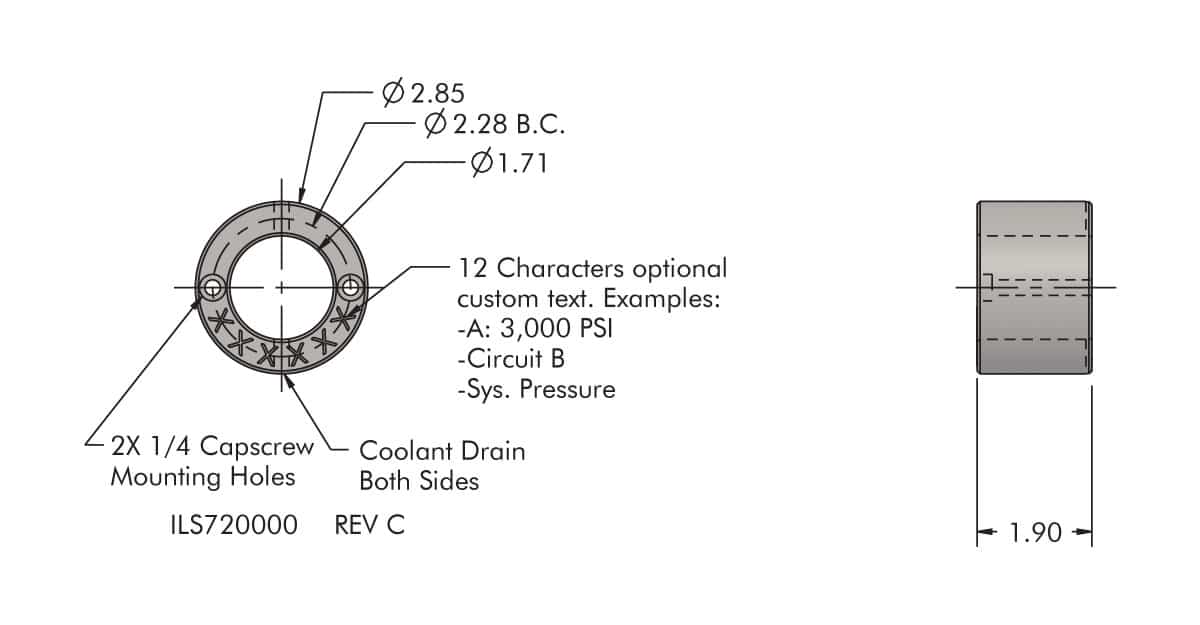

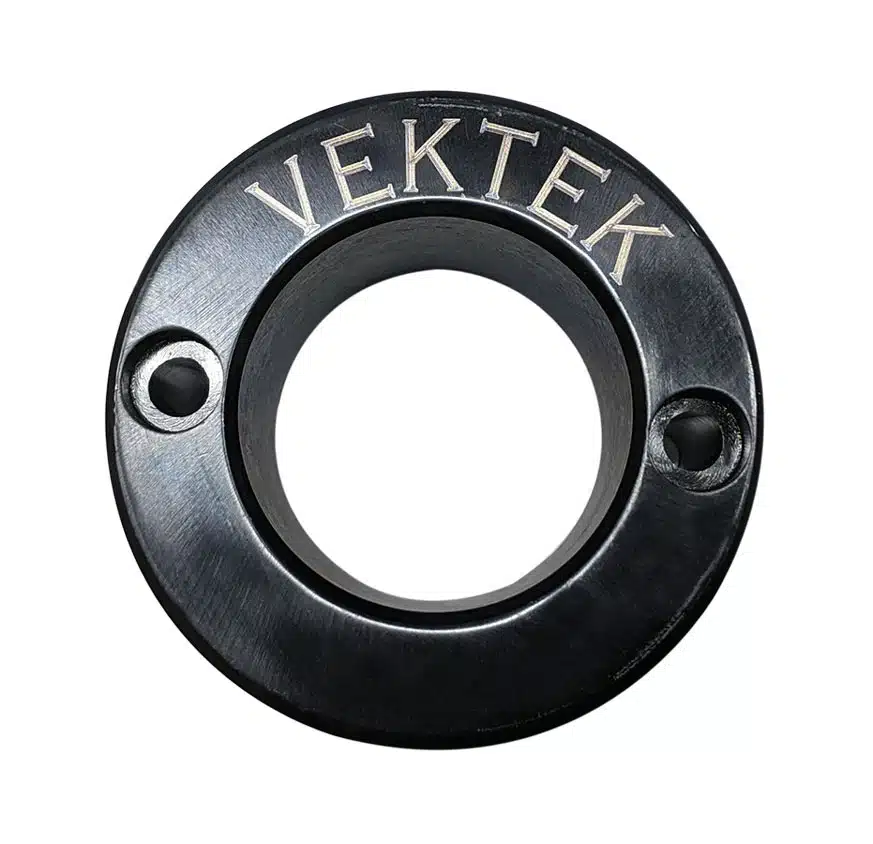

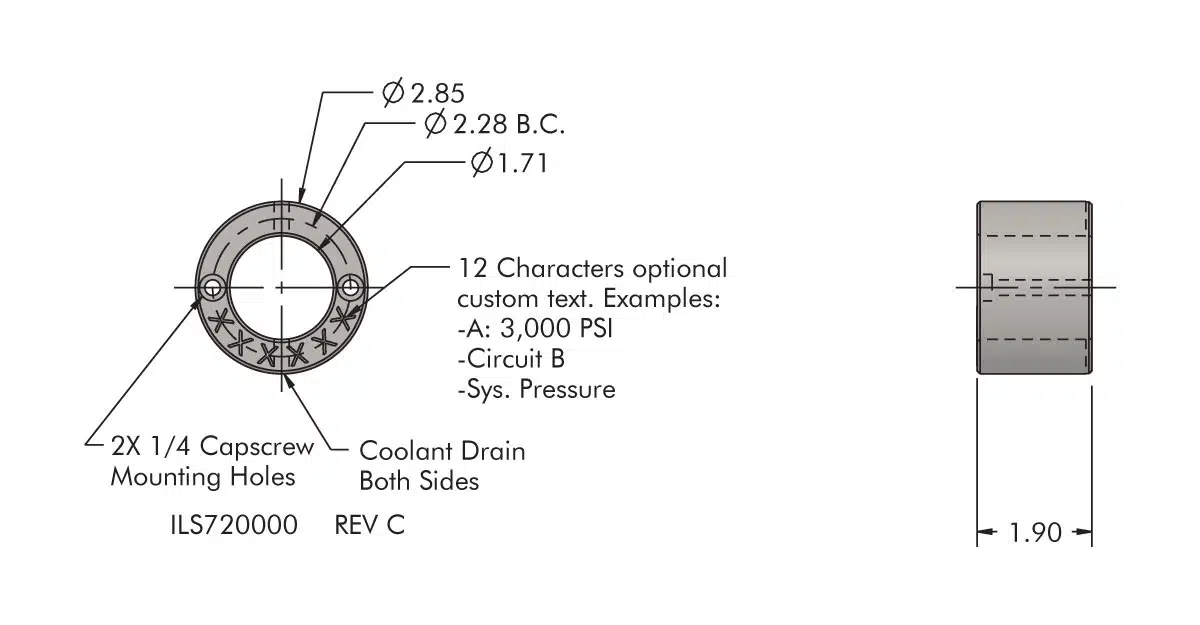

Model No. 72-0000-00: For use with gauges 72-1221-39 and 72-3221-55
- 72-0000-00-C For Custom Text Text required at order placement. (Limit 12 Characters).
- Call to Order Special Engraving Examples: Private Labeling or Logo on top. With 12 additional custom characters.

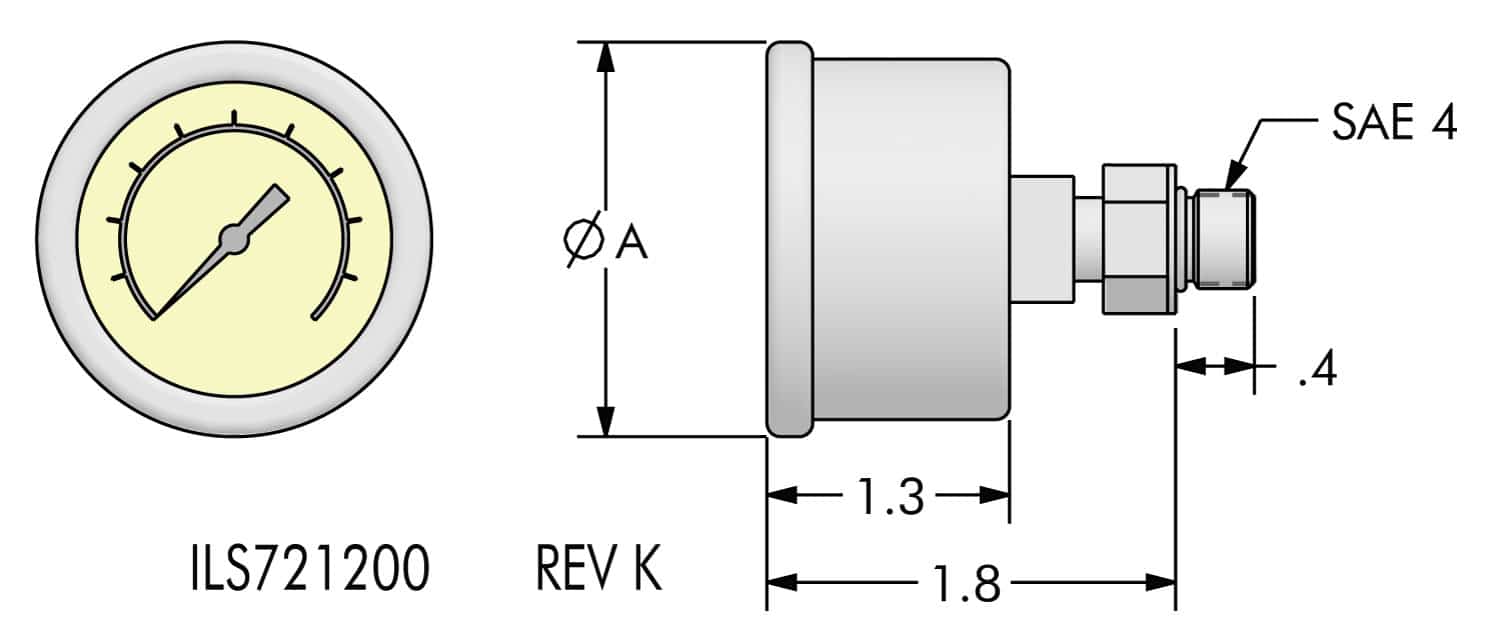

| Model No. | Pressure Range (psi.) | Bezel Diameter |
|---|---|---|
| 72-1221-39 | 0 - 1500 | 1.66 |
| 72-2121-55 | 0 - 5000 | 2.7 |
| 72-2121-65 | 0 - 10000 | 2.7 |
| 72-3221-55 | 0 - 6000 | 1.66 |
| Model No. | Used With Model No. |
|---|---|
| 72-0000-00 | 72-1221-39, 72-3221-55 |
