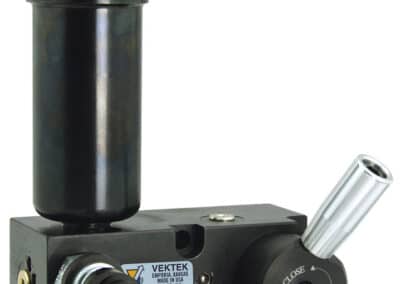

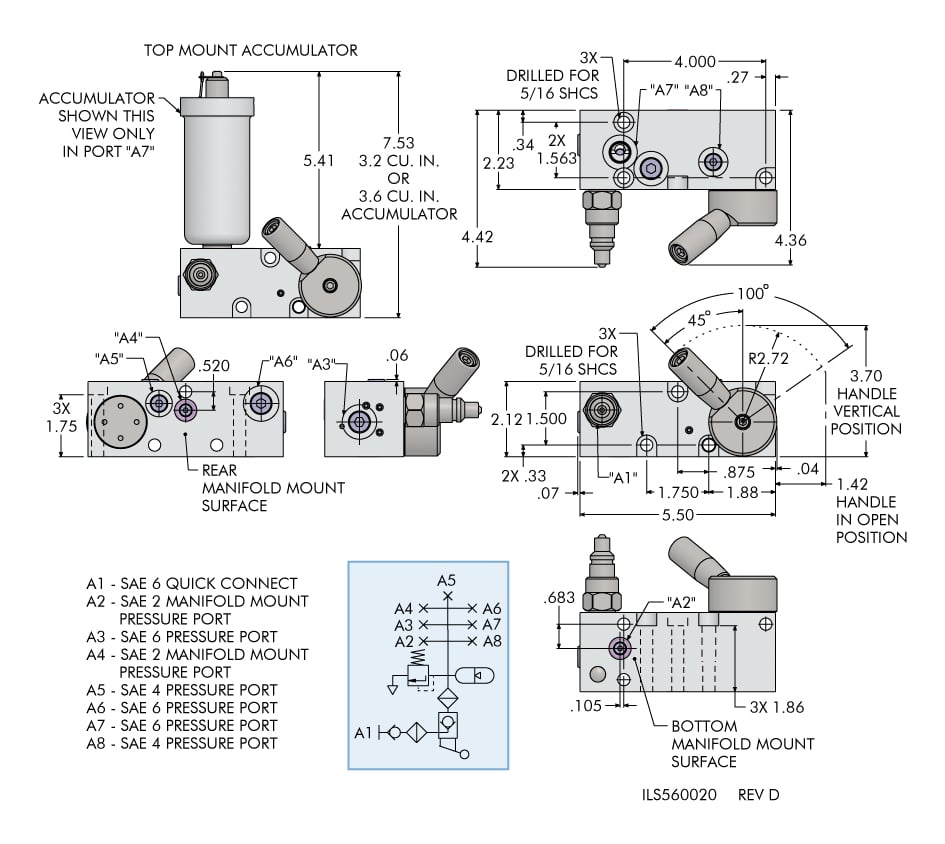

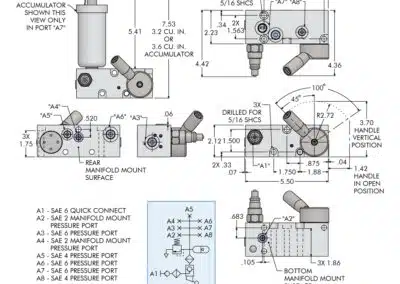

Self-Closing Manual Release Decoupler with External Accumulator

Palletized Fixture Accessories

For operation with Female Quick Connect Coupling Model No. 30-7827-66.

• This Decoupler is a convenient, self-contained package that includes a male quick disconnect with dust cover, accumulator, filter screens on both sides of system and an over-pressure relief valve. (Pressure gauge sold separately see Section M.)
• Manual shutoff valve automatically closes on system pressurization. Valve is manually opened to release system pressure back to the pump.
• External accumulator can be repositioned into your decoupler mounting and pallet layout.

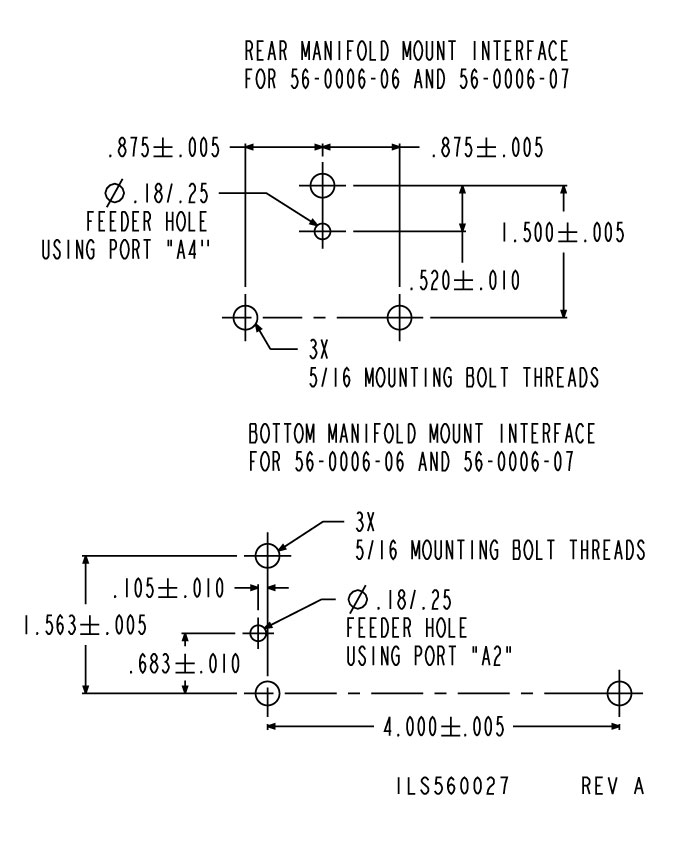

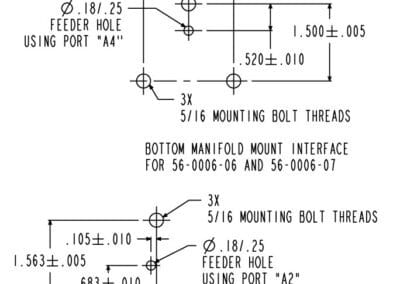

• Manifold mountable from the bottom or the rear surface.
• External accumulator can be repositioned into ports A3, A6 or A7 to accommodate the decoupler mounting and pallet layout.
• Pressure gauge can be mounted in A5 or A8 port to accommodate the decoupler mounting and pallet layout.
• BHC™ Finish.

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.

NOTE: This Self-closing Manual Shutoff Valve Decoupler must be used with a suitable pump which includes a 2-Position/3-Port, directional control valve for operation of one single acting circuit.
