    Sequence Valve

    Catalog Section

    • 100% stainless steel valve. Construction resists corrosion which can cause other styles to misfire.
    • Direct acting poppet style, adjustable, cartridge type construction.
    • Set Pressure adjustment range: 2.0 MPa (20 bar) to 6.2 MPa (62 bar).
    • Two-port design eliminates need for third fluid line to drain bypass flow (internal leakage) back to system reservoir.
    • True sequence design allows full system pressure downstream of valve after opening.
    • Up to 10 MPa (100 bar) system pressure.
    • Recommended Filtration: 25 Micron (Nom)/ 40 Micron (ABS) (min).
    • We recommend a 1 – 1.5 MPa (10 -15 bar) spread between pressures when using multiple valves.

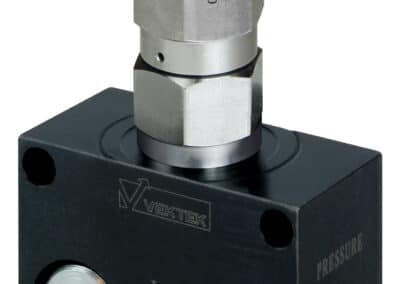

    Manifold Mount Sequence Valve

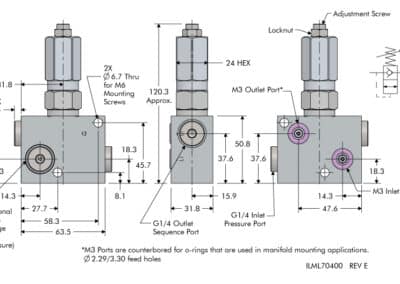

    Manifold Mount Sequence Valve Dimensions

    Order a Filter Plate to protect valves from debris (Model No. L7-0842-03)

    Manifold Mount Sequence Valve Dimensions

    For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.

    Model No.Set Pressure RangeSystem Pressure
    L7-0412-002.0 MPa (20 bar) - 6.2 MPa (62 bar)Up to 10 MPa (100 bar)
