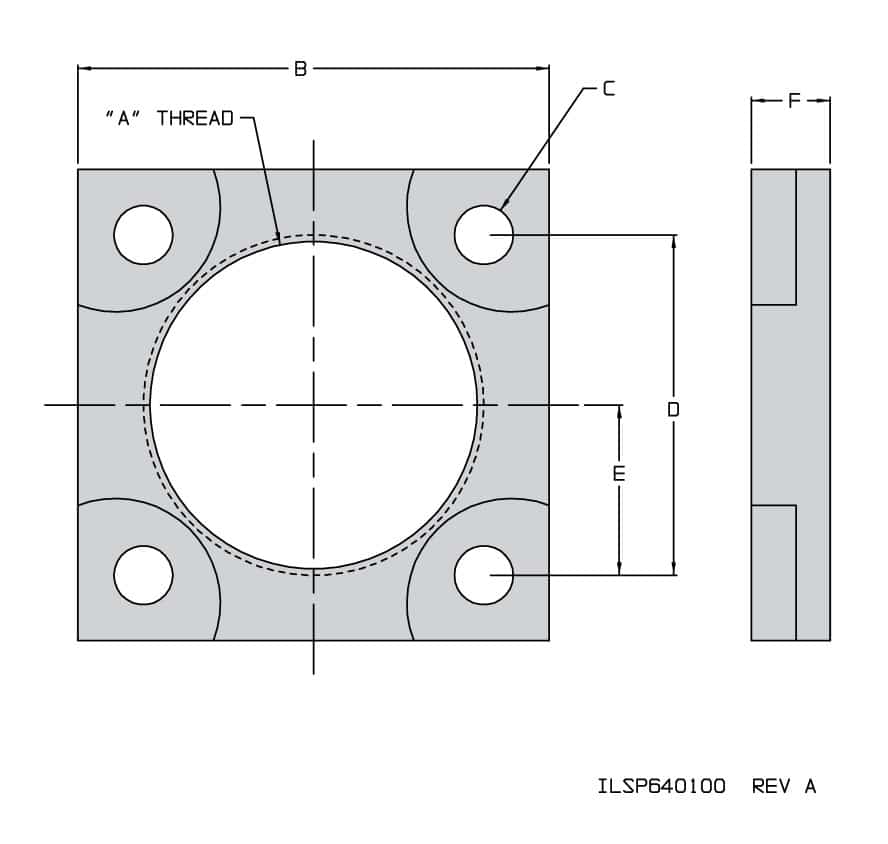

Mounting Flange
Pneumatic Mounting Hardware
| Model No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| P6-4011-20 | 1 1/4 - 16 | 2.25 | 0.34 | 1.56 | 0.78 | 0.75 |
| P6-4011-60 | 1 5/8 - 16 | 2.25 | 0.28 | 1.63 | 0.81 | 0.63 |
| P6-4011-80 | 1 7/8 - 16 | 2.50 | 0.41 | 1.88 | 0.94 | 1.00 |
| P6-4012-30 | 2 5/16 - 16 | 2.75 | 0.28 | 2.13 | 1.06 | 0.63 |
| P6-4012-70 | 2 3/4 - 16 | 3.25 | 0.34 | 2.50 | 1.25 | 0.63 |
| P6-4013-20 | 3 1/4 - 16 | 3.63 | 0.34 | 2.88 | 1.44 | 0.63 |
