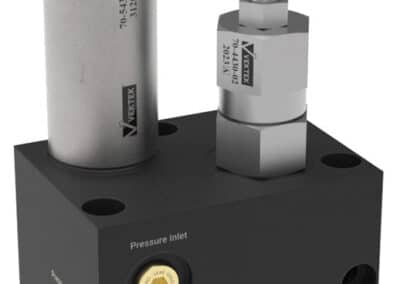

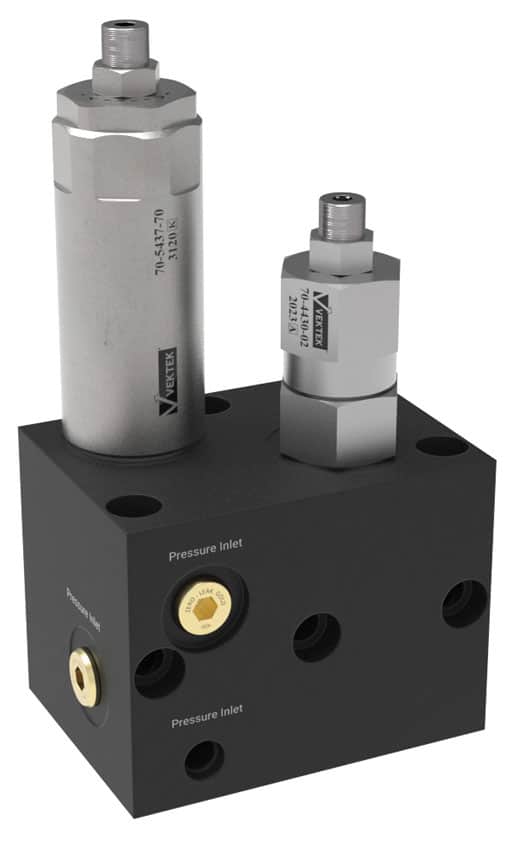

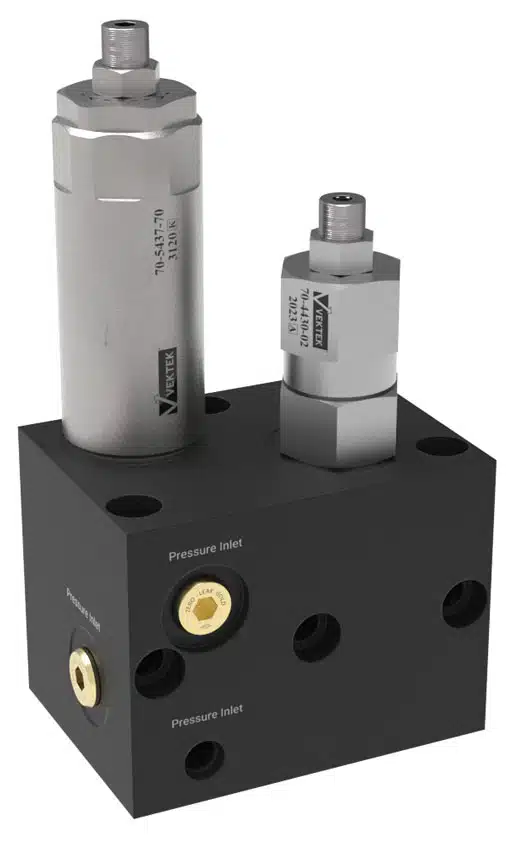

Low-High Valve
Metric Accessory Valves
- Clamp with lower pressure to position parts then clamp with high pressure once sequence pressure has been met on the rest of the circuit.
- Common inlet port feeds both sequence and reducing valves in parallel.
- 5 (M8) manifold ports: 3x Inlet and 2x Outlet.
- 4 (G1/4) ports: 2 x Inlet, 2x Outlet.
- Use with single or double acting devices.
- Block includes standard Sequence and PRV cartridges.
- Can be sandwiched with a PRV/Sequence Combo block.
- Enough space is provided on the block to accommodate a Gauge for setup or troubleshooting.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum)
* M8 Ports are counterbored for O-rings that are used in manifold mounting applications. Ø2.29 / 3.30 feed holes
** PRV set pressure range is: 10 – 60 bar with an inlet pressure of < 200 bar and 20 – 60 bar with an inlet pressure > 200 bar.
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Sequence Valve Model No. | Sequence Valve Set Pressure Range | PRV Model No. | PRV Set Pressure Range |
|---|---|---|---|---|
| 47-0940-04 | 47-0440-00 | 52 - 350 bar | 47-0540-00 | 52 - 310 bar |
| 47-0940-05 | 47-0440-00 | 52 - 350 bar | 47-0540-04 | 10 - 62 bar ** |
| 47-0940-06 | 47-0440-01 | 20 - 62 bar | 47-0540-04 | 10 - 62 bar ** |

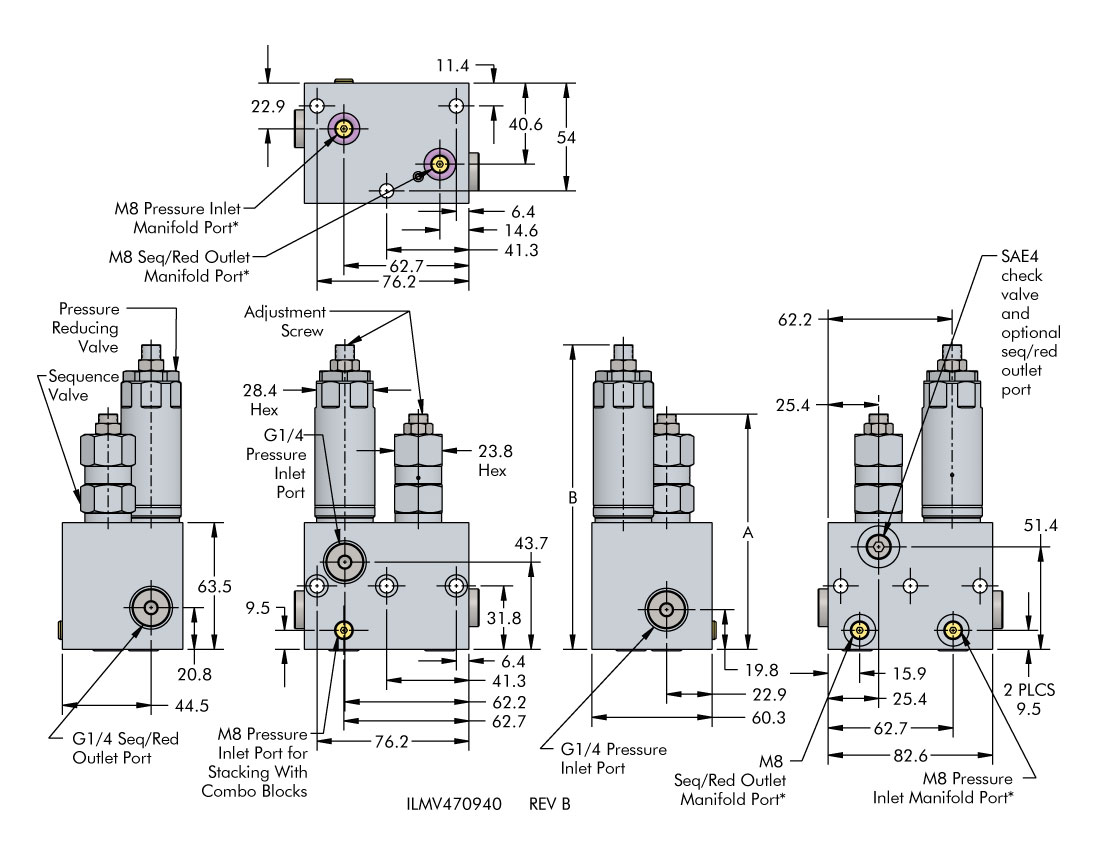

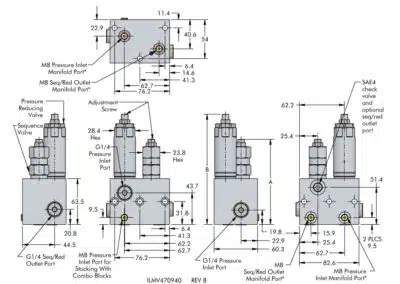

| Model No. | A | B |
|---|---|---|
| 47-0940-04 | 117.9 | 157.4 |
| 47-0940-05 | 117.9 | 174.5 |
| 47-0940-06 | 133.0 | 174.5 |
