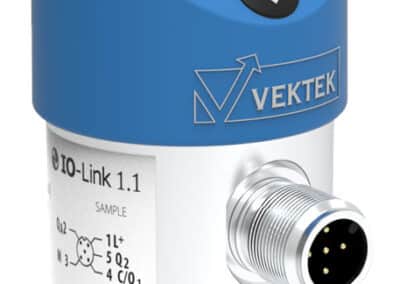

Powered LED Display Electronic Pressure Switch
Pressure Switches

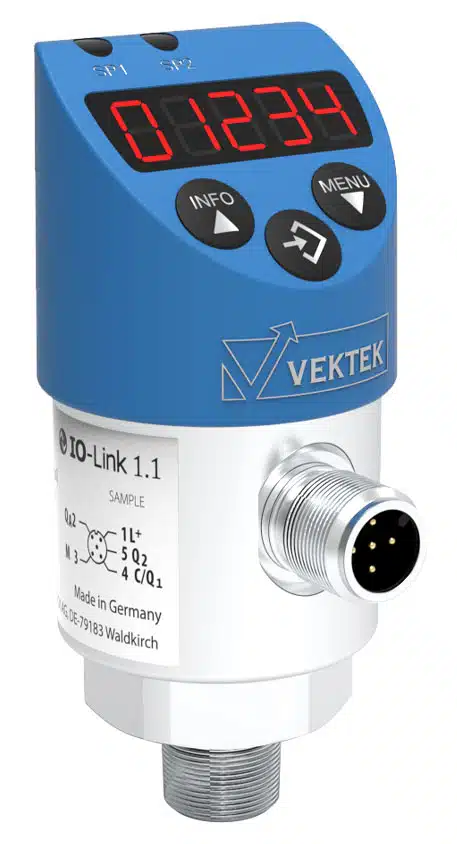

- Large 4 digit LED pressure display.
- Requires power (15-32 VDC), not functional unpowered.
- Programmable deadband.
- Easy 3-Button programmable electronic pressure switch.
- 2 digital switching outputs, 500 mA Rating, PNP only.
- Single analog output, 0-10 V or 4-20 mA.
- Set pressure range of 0-150 psi.
- Programmable reset pressure for each output.
- Sealed switch for operation in high moisture environments. (Complies with IP 67 Rating or Nema Rating 6.)
- Suitable for rapid cycling applications.

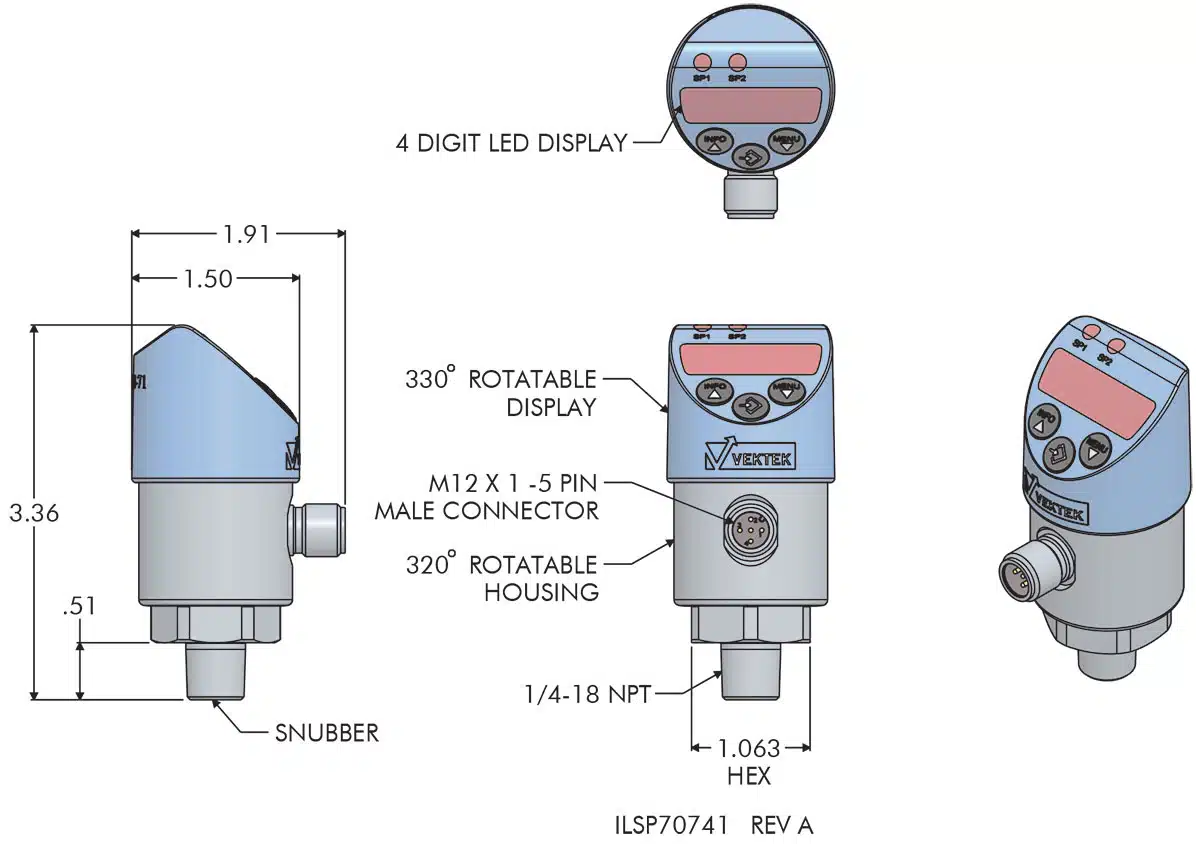

- Display & electronic connection: rotatable by 320°.
Pin Out Table
| Plug Pin | Input/Output |
| Pin 1, Brown | +15 – 32 VDC |
| Pin 2, White | Analog |
| Pin 3, Blue | 0 V |
| Pin 4, Black | SP1 0.5 A MAX |
| Pin 5, Gray | SP2 0.5 A MAX |
| Model No. | Pressure Range (psi.) | Electrical Connection | Power Supply | Power Consumption | 2 Digital Contacts | 1 Analog Output | Media Temp. Range |
|---|---|---|---|---|---|---|---|
| 70-7403-71 | 0 - 150 | M12 Male 5 Pin | 15 - 35 VDC | 50 mA w/o Load | Programmable N/O or N/C | Programmable 0-10 V or 4-20 mA | -4 to +176° F |
| Model No. | Description | End 1 Connection | End 2 Connection | Length (ft.) |
|---|---|---|---|---|
| 27-7422-00 | N/A | Male 90° | Female 90° | 2.0 |
| 27-7422-01 | N/A | Male Straight | Female Straight | 2.0 |
| 27-7422-03 | N/A | Female Straight | Male Straight | 16.4 |
| 27-9422-02 | N/A | Male Straight | Female Straight | 32.8 |
