Low Profile Upreach Arms
Metric Swing Clamp Arms

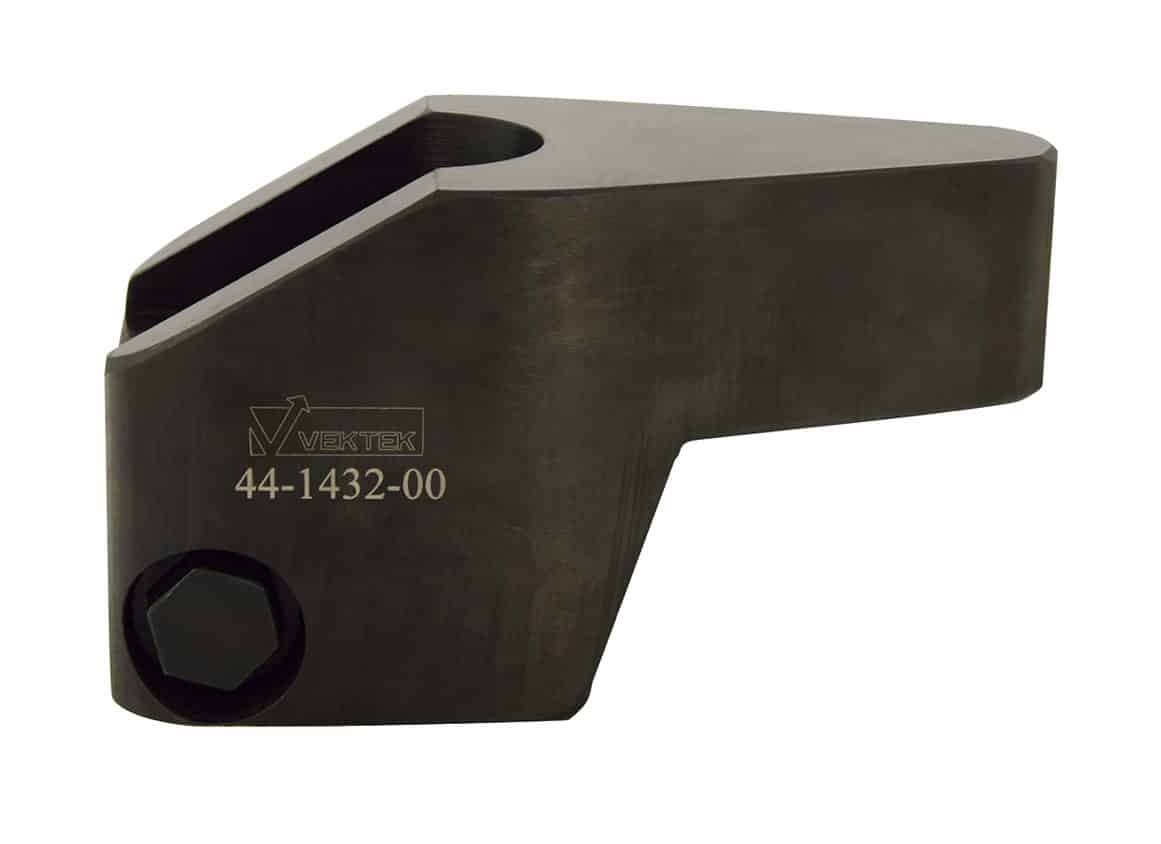

- 44-1431-00 For use with Low Profile Swing Clamp Models 41-4622-XX, 41-4222-XX.
- 44-1432-00 For use with Low Profile Swing Clamp Models 41-4633-XX, 41-4233-XX.
NOTE
Replacement Cap Screw for 44-1431-00 and 44-1432-00 is Model Number 21-5000-25. For arm limits, see the Swing Clamp Arms Learn More Page.

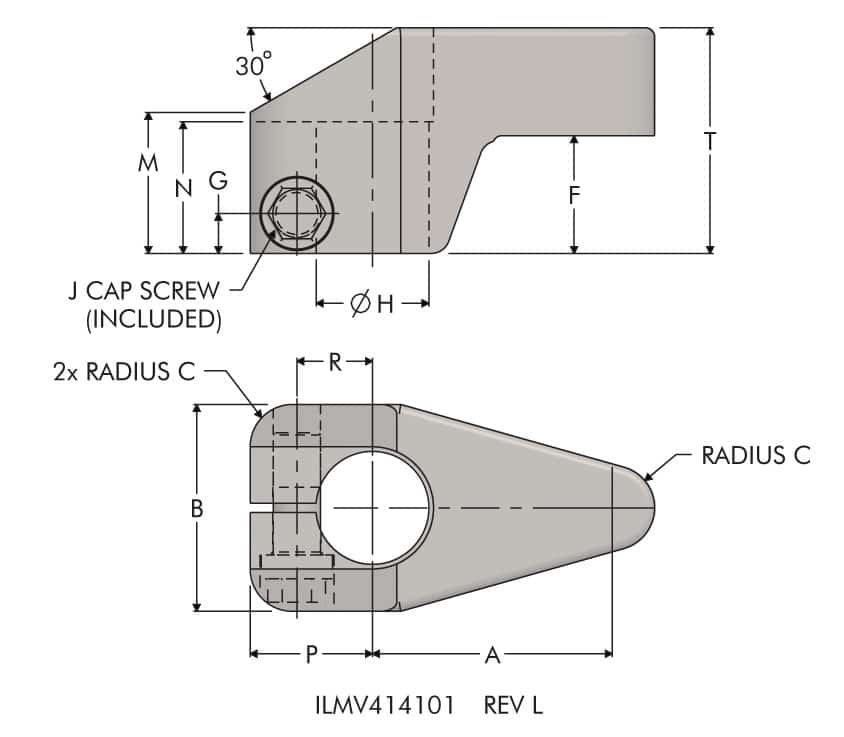

| Model No. | Clamp Capacity (kN) | A | B | C | F | G | H | J | M | N | P | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1431-00 | 22 | 76 | 51 | 14.5 | 36.5 | 13.5 | 31.75 - 31.80 | M16 X 1.5 | 44.5 | 38 | 38 | 22.5 | 70 |
| 44-1432-00 | 33 | 81 | 69.9 | 14.3 | 39.6 | 13.5 | 38.11 - 38.16 | M16 X 1.5 | 44.5 | 45 | 41.3 | 25.6 | 76.2 |
