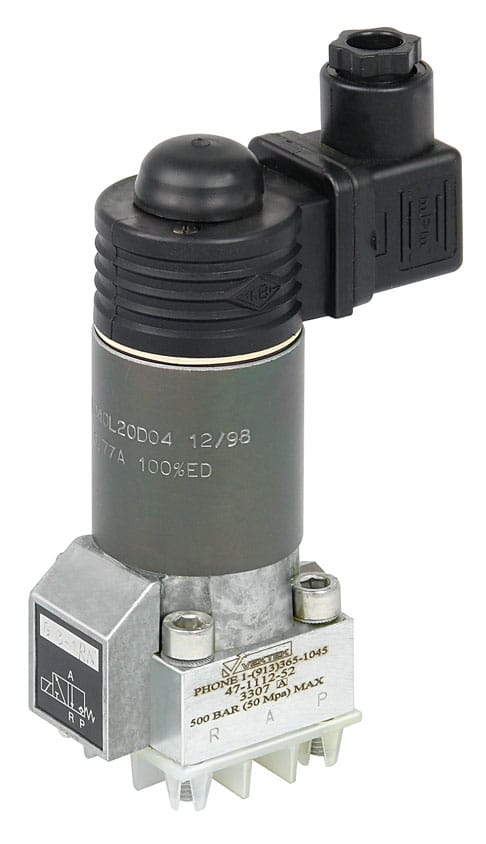

3-Port 2-Position Seat Valve: Solenoid
Metric Directional Control Valves
- Solenoids work with or without a shift lever and are designed and checked to VDE 0580.
- Seat valve has a manual emergency actuator.
- A check valve is incorporated in channel “P”.
- Seat valve has complete hydraulic pressure compensation and negative switching.
- Position of installation is optional.

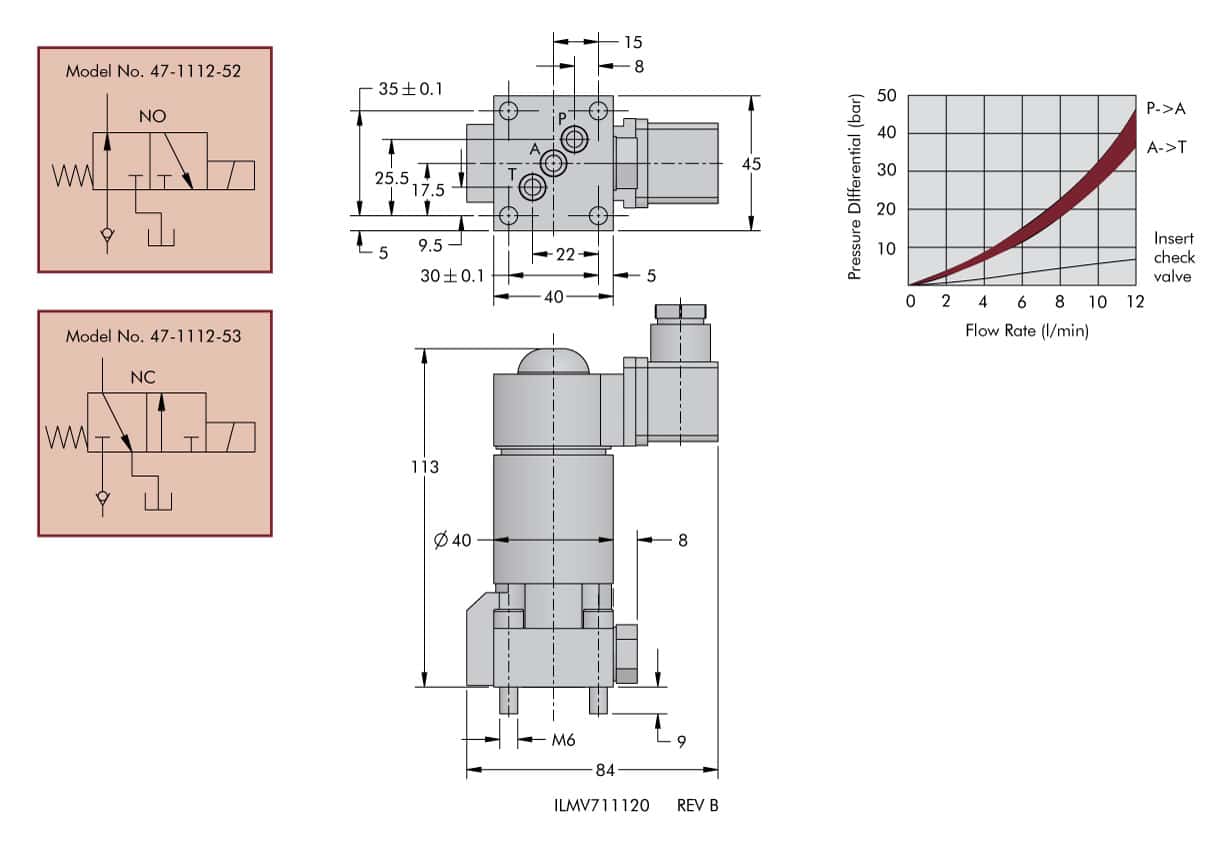

NOTE: The flow direction must be the direction of the arrow according to the symbol. The position of installation is optional.
| Model No. | Nominal Size | Valve Configuration | Valve Mounting | Max. Operating Pressure | Nominal Flow | Viscosity (cSt) | Ambient Temperature Range | Solenoid Voltage | Power Consumption | Switch Time (ms) | Duty Cycle (%) | Switching (Freq/Hr) | Code Class | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47-1112-52 | 5 | Normally Open | Manifold | 500 bar (50 MPa) | 12 l/min | 10 - 500 | -40 - 80 C° | 24 VDC | 20 Watts | 100 on / 50 off | 100 (to 35° C) | 2000 | IP 54 | 710 g |
| 47-1112-53 | 5 | Normally Closed | Manifold | 500 bar (50 MPa) | 12 l/min | 10 - 500 | -40 - 80 C° | 24 VDC | 20 Watts | 100 on / 50 off | 100 (to 35° C) | 2000 | IP 54 | 710 g |
