Metric Threaded Mini Cylinders

Metric Cylinders

Single Acting

Easy to use, basic hydraulic cylinders in G Series ported styles.
A force ranging from minimal to maximum cylinder capacity is adjusted by tuning the input pressure.
Designed for long life in high production applications.
Reduce or eliminate part distortion by providing accurate clamping force.
Special tough wipers help keep chips and contaminants out on all cylinder sizes.
Positive piston stop shoulder keeps the spring from bottoming out guarding against premature spring failure, which plague other cylinder brands.
Available in three stroke lengths for each capacity, up to 32 mm stroke.

Positive piston stop shoulder keeps the spring from bottoming out guarding against premature spring failure which can plague other cylinder brands.

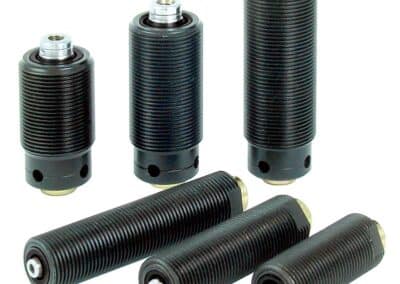

Vektek metric threaded mini cylinders are single acting miniature hydraulic cylinders for compact fixtures, with G Series porting and M20 x 1.5 or M28 x 1.5 threaded bodies. Two capacities, 4.4 kN and 10.1 kN at 350 bar, are available in strokes from 6.5 mm to 32 mm. Output force is adjustable by system pressure, and tough wipers plus a positive piston stop shoulder help these cylinders hold up in high production machining.

Threaded Mini-Cylinders, Single Acting Specifications

** Cylinder capacities are listed at 350 bar (35 MPa) maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine approximate output force for your application, multiply the Piston Area times Your System Operating Pressure. Actual force may vary slightly due to friction loss, seal and wiper drag and/or return spring forces.

Capacity 4.4 kN

Capacity 10.1 kN

Model No.	Clamp Capacity (kN) Extend	Stroke (mm)	Body Thread	Minimum Length (mm)	Piston Area (cm²) Extend	Oil Capacity Extend (cm³)
42-0010-01	4.4	9.5	M20 X 1.5	51	1.3	1.2
42-0010-02	10.1	6.5	M28 X 1.5	56	2.9	1.8
42-0010-10	4.4	19	M20 X 1.5	67	1.3	2.5
42-0010-11	4.4	32	M20 X 1.5	83.5	1.3	4.1
42-0010-12	10.1	19	M28 X 1.5	69	2.9	5.5
42-0010-13	10.1	32	M28 X 1.5	86.5	2.9	9.2

Model No.	Clamp Capacity (kN) Extend	A	B	C	D	E	F	G	H	J	K	L	M	N
42-0010-01	4.4	16	51	9.5	6.5	2	6.5	M20 X 1.5	N/A	N/A	N/A	N/A	N/A	N/A
42-0010-02	10.1	7	56	6.5	12.5	24.5	35.5	M28 X 1.5	12.5	M6 X 1.0 X DEEP 11	24	6.5	12	5.5
42-0010-10	4.4	16	67	19	6.5	2	6.5	M20 X 1.5	N/A	N/A	N/A	N/A	N/A	N/A
42-0010-11	4.4	16	83.5	32	6.5	2	6.5	M20 X 1.5	N/A	N/A	N/A	N/A	N/A	N/A
42-0010-12	10.1	7	69	19	12.5	24.5	48	M28 X 1.5	12.5	M6 X 1.0 X DEEP 11	24	6.5	12	5.5
42-0010-13	10.1	5.5	86.5	32	12.5	24.5	67	M28 X 1.5	12.5	M6 X 1.0 X DEEP 11	24	6.5	12	5.5
