Thread-In Coupling Elements
Palletized Fixture Accessories

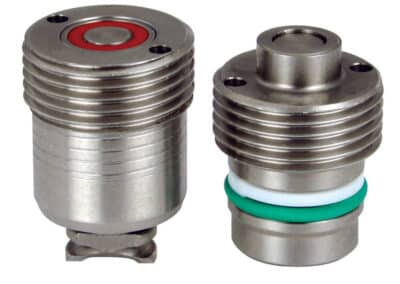

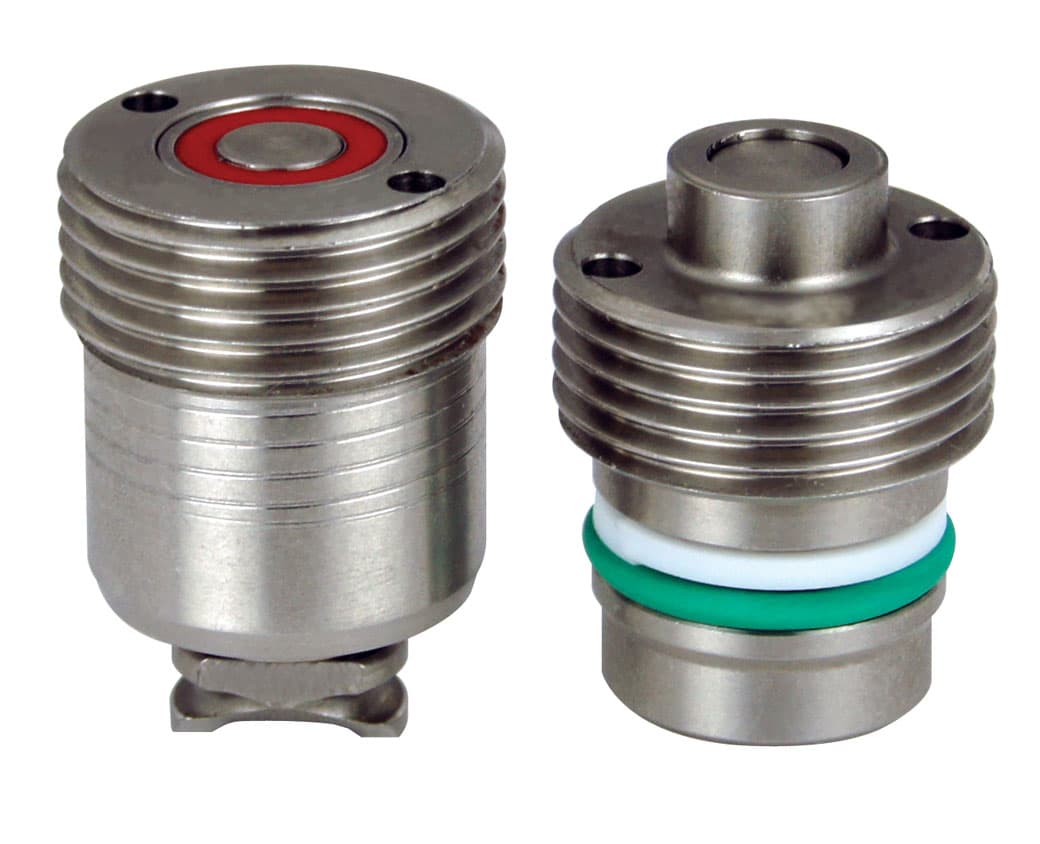

Coupling elements are made to give you a leak free connection – whether pressurized or depressurized. Two flow rates are allowed with your choice of two nominal diameter sizes. The compact design allows couplings to be recessed into the fixture plate. Stainless steel construction provides long service life with replaceable face seals.
- Axial face seal between coupling mechanism and coupling nipple.

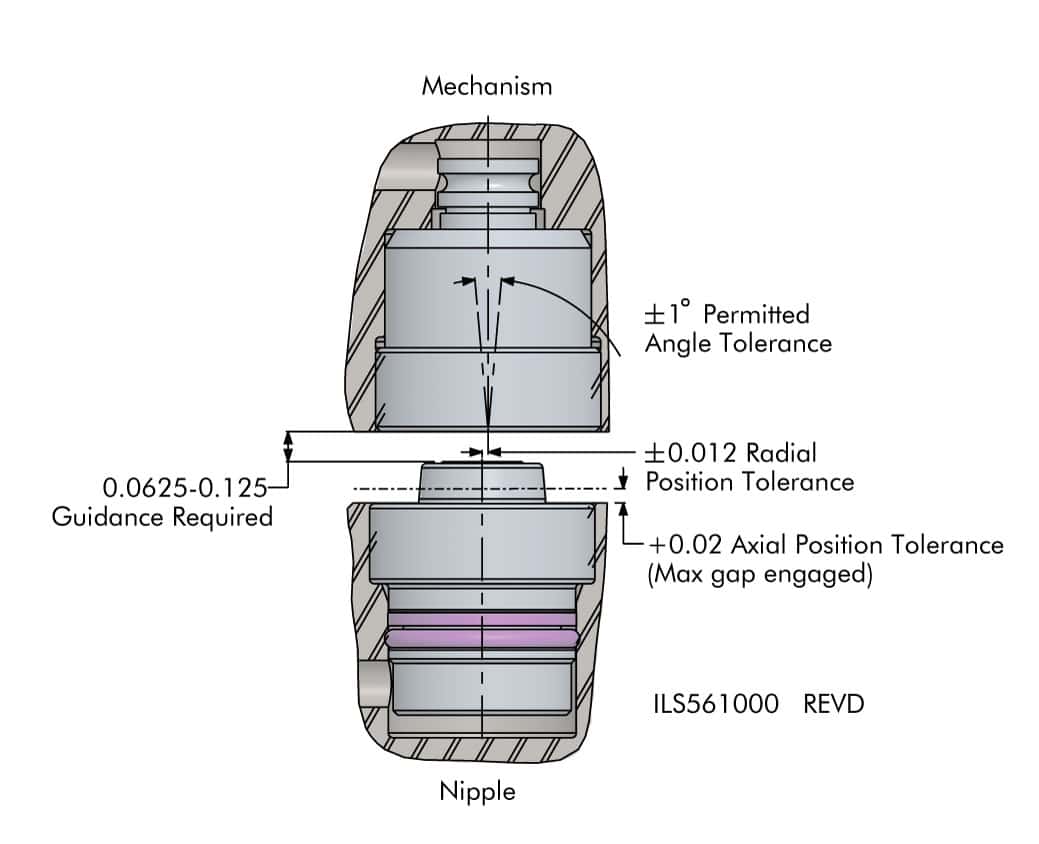

- Both elements must be positioned and guided within specified tolerances before contact with sealing surfaces.
- Coupling force at operating pressure ranges from 0-800 and 0-1,800 pounds depending on model.
- Spanner and replacement seal installation tools available.
NOTE: Clean face of coupling elements with compressed air prior to connecting coupling to protect from contamination intrusion. Both elements must be guided about 1/16 to 1/8 inch before elements touch each other. Guidance should prevent the elements from moving out of axial alignment as they are coupled.
* Depressurized coupling elements can be connected with system pressure up to 360 psi, as long as the specified flow rate is not exceeded. For compressed air up to 145 psi, always use depressurized coupling elements, even if coupling is under pressure. Pressurized coupling elements can be connected under pressure on one or both sides, up to their rated maximum pressure.

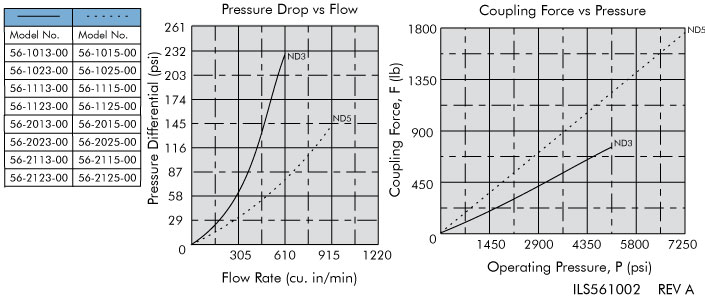

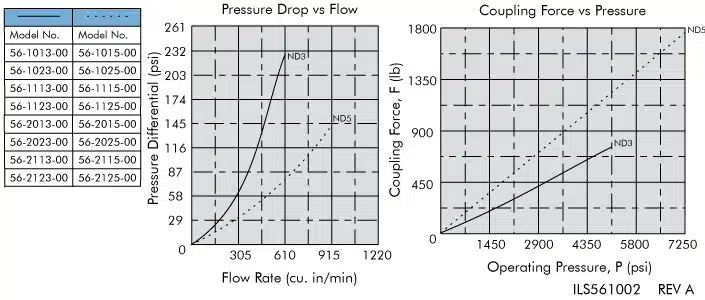

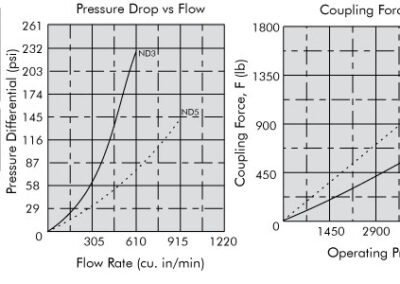

* Coupling Force Equations: ND3: F (lbs) = .1457 * P (psi), ND5: F (lbs) = .2387 * P (psi)
- Minimum required coupling force between nipple and mechanism resulting from hydraulic operating pressure.
- Must be externally countered by some mechanical means.
| Model No. | End Type | Coupling Type | Nom. Ø | Thread | Max. Operating Pressure | Maximum Oil Flow Rate (cu. in./min) | Stroke (in.) | Min. Coupling Force at 0 PSI | Axial Position Tolerance | Radial Position Tolerance | Permit Angle Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 56-1013-00 | Mech. | Pressurized | 3 | M20 X 1.5 | 5000 psi | 490 | 0.18 | 21 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1015-00 | Mech. | Pressurized | 5 | M24 X 1.5 | 7250 psi | 730 | 0.18 | 22 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1023-00 | Mech. | Depressurized | 3 | M20 X 1.5 | 5000 psi | 490 | 0.18 | 21 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1025-00 | Mech. | Depressurized | 5 | M24 X 1.5 | 7250 psi | 730 | 0.18 | 22 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1113-00 | Nipple | Pressurized | 3 | M20 X 1.5 | 5000 psi | 490 | 0.18 | 21 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1115-00 | Nipple | Pressurized | 5 | M24 X 1.5 | 7250psi | 730 | 0.18 | 22 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1123-00 | Nipple | Depressurized | 3 | M20 X 1.5 | 5000 psi | 490 | 0.18 | 21 lbs. | +0.02 | ± 0.012 | ± 1 |
| 56-1125-00 | Nipple | Depressurized | 5 | M24 X 1.5 | 7250psi | 730 | 0.18 | 22 lbs. | +0.02 | ± 0.012 | ± 1 |

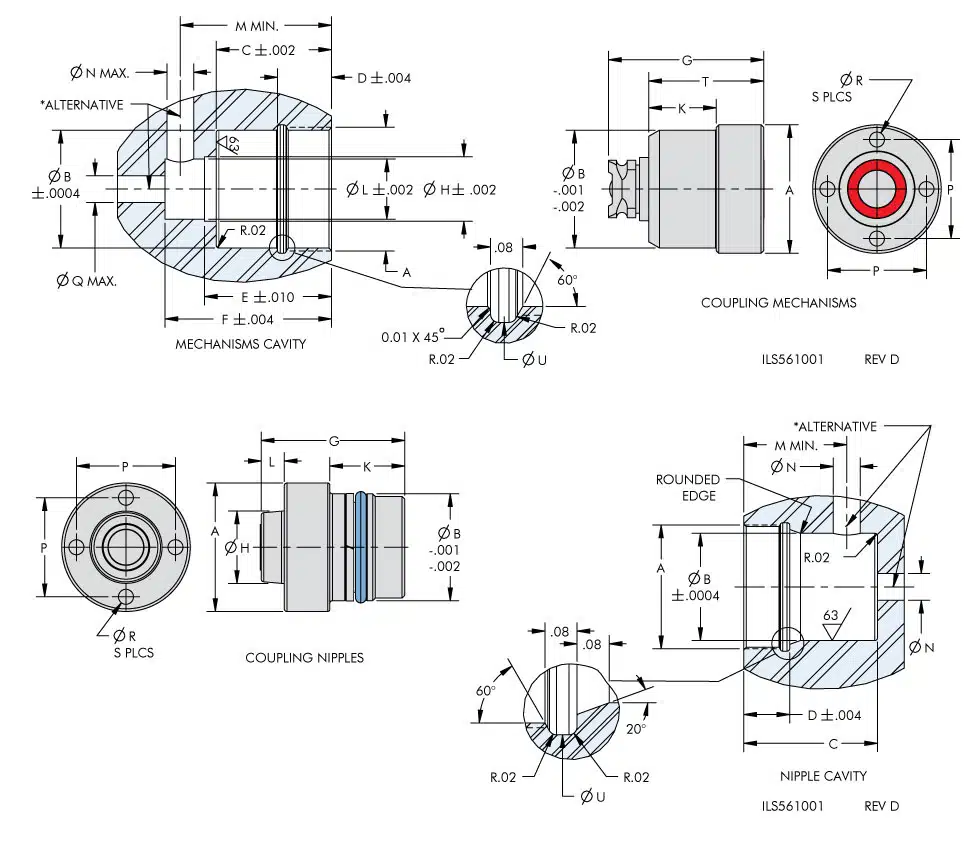

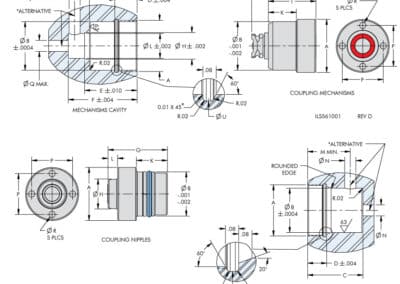

| Model No. | End Type | Nom. Ø | Torque (lb*ft) | A | B | C | D | G | H | K | L | M | N | P | R | S | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56-1113-00 | Nipple | 3 | 11 | M20 X 1.5 | 0.6304 | 0.906 | 0.335 | 1.020 | 0.386 | 0.512 | 0.177 | 0.748 | 0.197 | 0.610 | 0.102 | 2 | 0.807 | 0.729 |
| 56-1115-00 | Nipple | 5 | 15 | M24 X 1.5 | 0.7878 | 0.984 | 0.339 | 1.063 | 0.531 | 0.551 | 0.177 | 0.748 | 0.197 | 0.728 | 0.110 | 4 | 0.965 | 0.887 |
| 56-1123-00 | Nipple | 3 | 11 | M20 X 1.5 | 0.6304 | 0.906 | 0.335 | 1.020 | 0.386 | 0.512 | 0.177 | 0.748 | 0.197 | 0.610 | 0.102 | 2 | 0.807 | 0.729 |
| 56-1125-00 | Nipple | 5 | 15 | M24 X 1.5 | 0.7878 | 0.984 | 0.339 | 1.063 | 0.531 | 0.551 | 0.177 | 0.748 | 0.197 | 0.728 | 0.110 | 4 | 0.965 | 0.887 |
| Model No. | End Type | Nom. Ø | Torque (lb*ft) | A | B | C | D | E | F | G | H | K | L | M | N | P | Q | R | S | T | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56-1013-00 | Mech. | 3 | 11 | M20 X 1.5 | 0.7090 | 0.848 | 0.398 | N/A | 1.224 | 1.142 | N/A | 0.512 | 0.443 | 1.102 | 0.197 | 0.610 | 0.276 | 0.102 | 2 | 0.846 | 0.807 | 0.729 |
| 56-1015-00 | Mech. | 5 | 15 | M24 X 1.5 | 0.8666 | 0.848 | 0.398 | 0.935 | 1.224 | 1.142 | 0.474 | 0.492 | 0.443 | 1.102 | 0.197 | 0.728 | 0.276 | 0.110 | 4 | 0.846 | 0.965 | 0.887 |
| 56-1023-00 | Mech. | 3 | 11 | M20 X 1.5 | 0.7090 | 0.848 | 0.398 | N/A | 1.224 | 1.142 | N/A | 0.512 | 0.443 | 1.102 | 0.197 | 0.610 | 0.276 | 0.102 | 2 | 0.846 | 0.807 | 0.729 |
| 56-1025-00 | Mech. | 5 | 15 | M24 X 1.5 | 0.8666 | 0.848 | 0.398 | 0.935 | 1.224 | 1.142 | 0.474 | 0.492 | 0.443 | 1.102 | 0.197 | 0.728 | 0.276 | 0.110 | 4 | 0.846 | 0.965 | 0.887 |
| Model No. | Product Type | Used With |
|---|---|---|

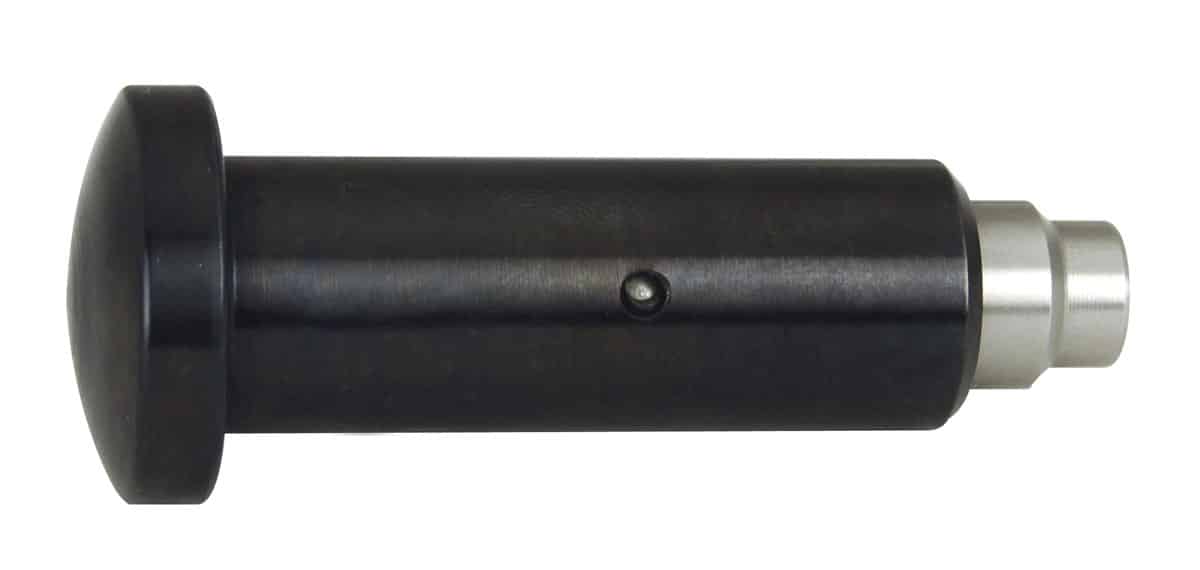

| AT-5603-00 | Seal Tool | 56-1013-00, 56-1023-00 |
| AT-5605-00 | Seal Tool | 56-1015-00, 56-1025-00 |

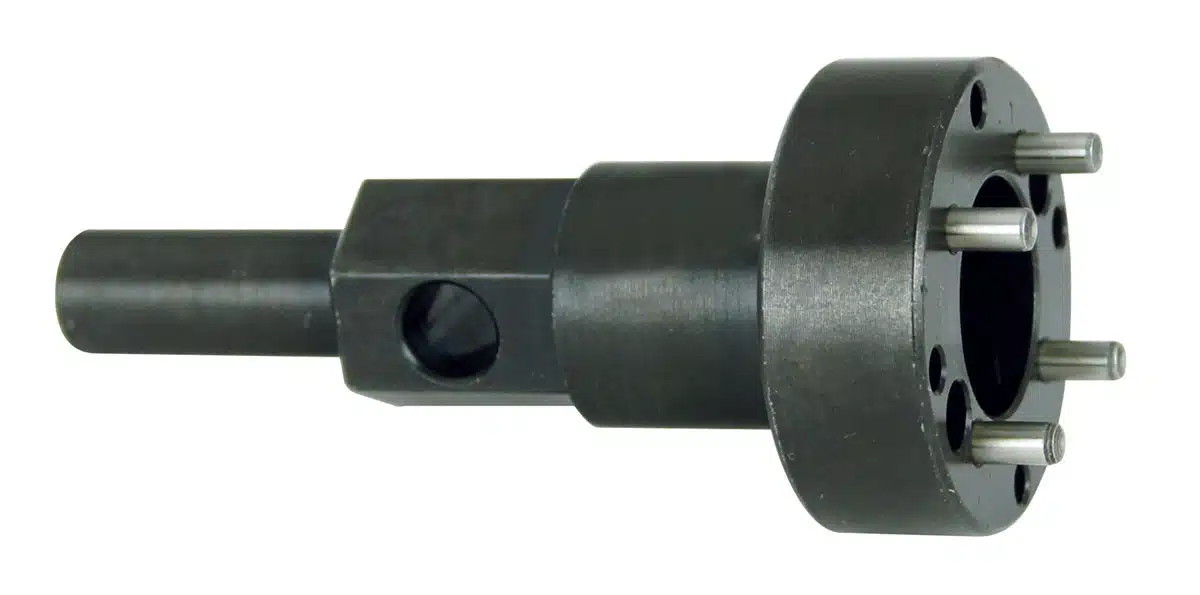

| AT-5613-00 | Spanner Tool | 56-1013-00, 56-1023-00, 56-1113-00, 56-1123-00 |
| AT-5615-00 | Spanner Tool | 56-1015-00, 56-1025-00, 56-1115-00, 56-1125-00 |
