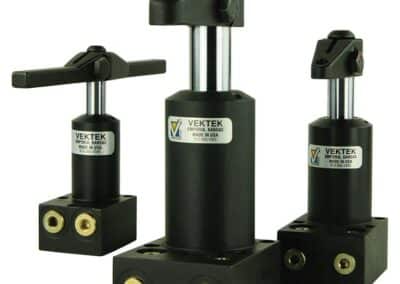

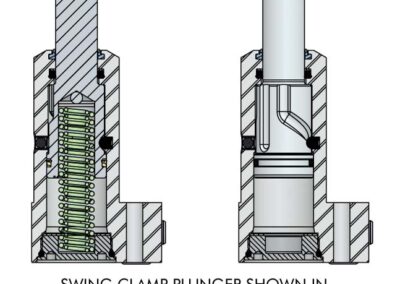

VersaCam Bottom Flange Swing Clamps
Single and Double Acting
- Clamp position repeatability of ±0.50° on all models 1,100lb to 2,600lb.
- Simply the easiest to use manifold mount design on the market today. No precision installation holes, no precisely located ports, no special mounting hardware, only our special patented design gives you all of that.
- Available in three sizes, 450, 1100 and 2600 lb. capacity at 5,000 psi.
- Unique, bolt up, bolt down or standard ported “foot” design allows you the maximum flexibility in fixture design.
- Can be manifold face sealed or fittings may be used in the top and bottom ports (SAE 2).
- Standard Arm Clocking feature uses standard Vektek Arms.
- Arms sold separately.
- To avoid cylinder damage and preserve warranty use recommended flow rate limits and time calculations.
- Standard models swing 90°, swing angles of less than 90° readily available using restrictors. Swings of more than 90° are special order products.
- Easily installed using standard cap screws. The large base and one piece mounting give this clamp excellent rigidity.
- Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
- Optional In-Port Sequence Valve is a sequencing device with reverse free flow check valve.
- See Ultrasonic variant.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated on the Clamp Time and Fluid Flow Rate Chart.
***** In-Port Valves require the use of manifold mount ports.
WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.
NOTE: Optional in-port flow control is a meter-in device with reverse free flow check valve.

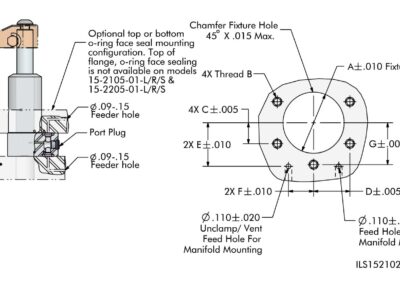

For proper sealing, mating surface must be flat within 0.003 in. with a maximum 63 µin Ra surface finish.
All models are shipped with removable steel plugs installed. O-Ring face seals provided. (SAE 2 ports)
* Models 14-2105-01 (L, R and S) and 14-2205-01 (L, R and S) are manifold mountable from the bottom SAE 2 port only.
** All five mounting screws must be used when manifold mounting, to assure a leak free O-Ring seal.
For proper sealing, mating surface must be flat within 0.003 in. with a maximum 63 µin Ra surface finish.

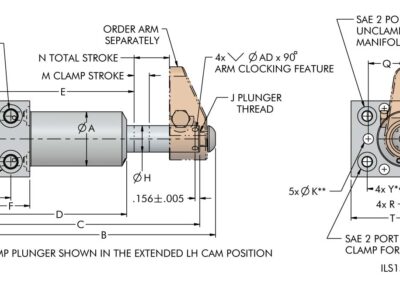

| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Standard Arm Length | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|---|
| 15-2105-03-L | Left | 450 | 0.22 | 0.57 | 1.06 | 0.098 | N/A | 0.056 | SAE 4 X 0.58 |
| 15-2105-03-R | Right | 450 | 0.22 | 0.57 | 1.06 | 0.098 | N/A | 0.056 | SAE 4 X 0.58 |
| 15-2105-03-S | Straight | 450 | 0.57 | 0.57 | 1.06 | 0.098 | N/A | 0.056 | SAE 4 X 0.58 |
| 15-2109-04-L | Left | 1100 | 0.31 | 0.79 | 1.50 | 0.295 | N/A | 0.233 | SAE 4 X 0.75 |
| 15-2109-04-R | Right | 1100 | 0.31 | 0.79 | 1.50 | 0.295 | N/A | 0.233 | SAE 4 X 0.75 |
| 15-2109-04-S | Straight | 1100 | 0.79 | 0.79 | 1.50 | 0.295 | N/A | 0.233 | SAE 4 X 0.75 |
| 15-2113-04-L | Left | 2600 | 0.50 | 1.16 | 2.00 | 0.626 | N/A | 0.726 | SAE 4 X 0.75 |
| 15-2113-04-R | Right | 2600 | 0.50 | 1.16 | 2.00 | 0.626 | N/A | 0.726 | SAE 4 X 0.75 |
| 15-2113-04-S | Straight | 2600 | 1.16 | 1.16 | 2.00 | 0.626 | N/A | 0.726 | SAE 4 X 0.75 |
| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Standard Arm Length | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|---|---|
| 15-2205-03-L | Left | 450 | 0.22 | 0.57 | 1.06 | 0.098 | 0.142 | 0.056 | SAE 4 X 0.58 |
| 15-2205-03-R | Right | 450 | 0.22 | 0.57 | 1.06 | 0.098 | 0.142 | 0.056 | SAE 4 X 0.58 |
| 15-2205-03-S | Straight | 450 | 0.57 | 0.57 | 1.06 | 0.098 | 0.142 | 0.056 | SAE 4 X 0.58 |
| 15-2209-04-L | Left | 1100 | 0.31 | 0.79 | 1.50 | 0.295 | 0.475 | 0.233 | SAE 4 X 0.75 |
| 15-2209-04-R | Right | 1100 | 0.31 | 0.79 | 1.50 | 0.295 | 0.475 | 0.233 | SAE 4 X 0.75 |
| 15-2209-04-S | Straight | 1100 | 0.79 | 0.79 | 1.50 | 0.295 | 0.475 | 0.233 | SAE 4 X 0.75 |
| 15-2213-04-L | Left | 2600 | 0.50 | 1.16 | 2.00 | 0.626 | 1.423 | 0.726 | SAE 4 X 0.75 |
| 15-2213-04-R | Right | 2600 | 0.50 | 1.16 | 2.00 | 0.626 | 1.423 | 0.726 | SAE 4 X 0.75 |
| 15-2213-04-S | Straight | 2600 | 1.16 | 1.16 | 2.00 | 0.626 | 1.423 | 0.726 | SAE 4 X 0.75 |
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | T | V | X | Y | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15-2105-03-L | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2105-03-R | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2105-03-S | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2109-04-L | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2109-04-R | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2109-04-S | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2113-04-L | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| 15-2113-04-R | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| 15-2113-04-S | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | T | V | X | Y | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15-2205-03-L | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2205-03-R | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2205-03-S | 450 | 1.05 | 4.32 | 4.06 | 2.80 | 2.99 | 1.00 | 0.66 | 0.438 | 1/4-28 X 0.375 | 0.22 | 0.38 | 0.22 | 0.57 | 1.50 | 1.06 | 0.38 | 1.73 | 0.53 | 0.59 | 0.81 | SAE 4 | 0.13 |
| 15-2209-04-L | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2209-04-R | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2209-04-S | 1100 | 1.49 | 5.70 | 5.33 | 3.65 | 3.83 | 1.25 | 0.63 | 0.625 | 3/8-24 X 0.625 | 0.28 | 0.56 | 0.31 | 0.79 | 2.00 | 0.99 | 0.56 | 2.41 | 0.75 | 0.81 | 1.13 | SAE 4 | 0.19 |
| 15-2213-04-L | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| 15-2213-04-R | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| 15-2213-04-S | 2600 | 1.79 | 7.35 | 6.83 | 4.43 | 4.67 | 1.25 | 0.63 | 0.875 | 1/2-20 X 0.750 | 0.34 | 0.75 | 0.50 | 1.16 | 2.50 | 1.21 | 0.69 | 2.72 | 0.94 | 1.00 | 1.25 | SAE 4 | 0.19 |
| Model No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 15-2105-03-L | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2105-03-R | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2105-03-S | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2109-04-L | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2109-04-R | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2109-04-S | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2113-04-L | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
| 15-2113-04-R | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
| 15-2113-04-S | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
| Model No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 15-2205-03-L | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2205-03-R | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2205-03-S | 1.077 | 10-32 | 0.375 | 0.594 | 0.813 | 0.375 | 1.062 |
| 15-2209-04-L | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2209-04-R | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2209-04-S | 1.515 | 1/4-20 | 0.562 | 0.812 | 1.125 | 0.562 | 0.988 |
| 15-2213-04-L | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
| 15-2213-04-R | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
| 15-2213-04-S | 1.815 | 5/16-18 | 0.688 | 1.000 | 1.250 | 0.750 | 1.214 |
