Compact Air/Hydraulic Pump

Power Supplies

Catalog Section | Pump Manual

  • Suitable for most single fixtures and small pallet systems.
  • Maximum working pressure 5,000 psi.
  • Maximum air pressure, 85 psig.
  • Noise level, 75 Db. at four feet.
  • Long life, shown to perform over three times longer than comparable equipment.
  • Adjustable and non-adjustable air filter regulators are available.
  • Normally horizontally mounted, if mounting vertical, air inlet side must be up.

WARNING! Use of spool valves invalidates the warranty on VektorFlo® pumps.

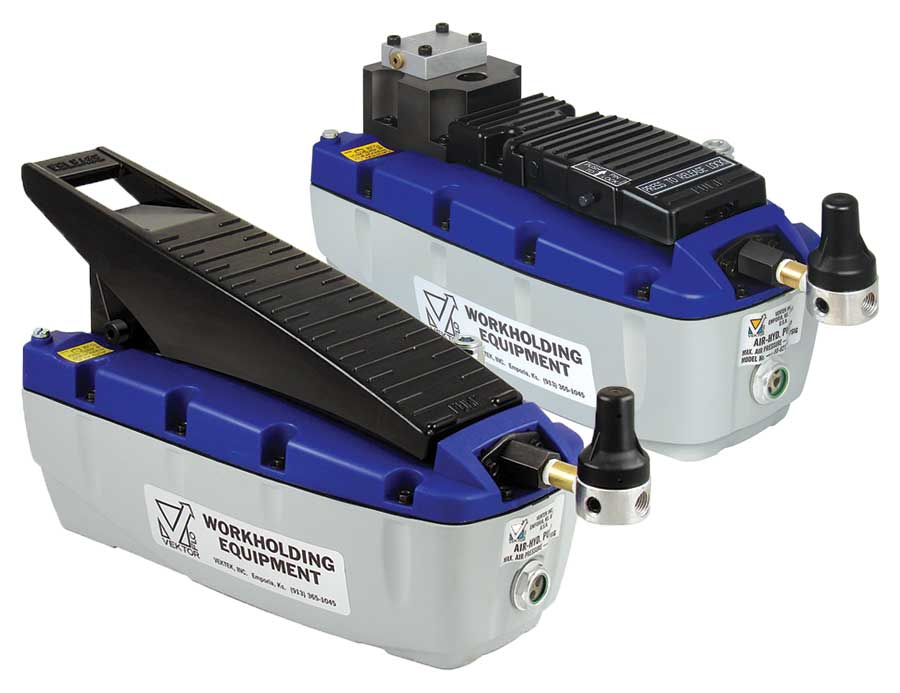

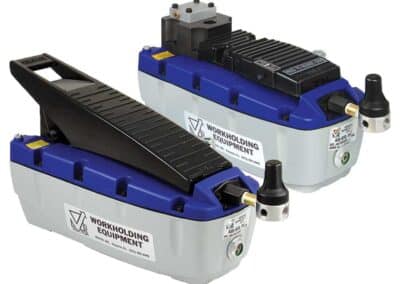

Compact Air Hydraulic Pump

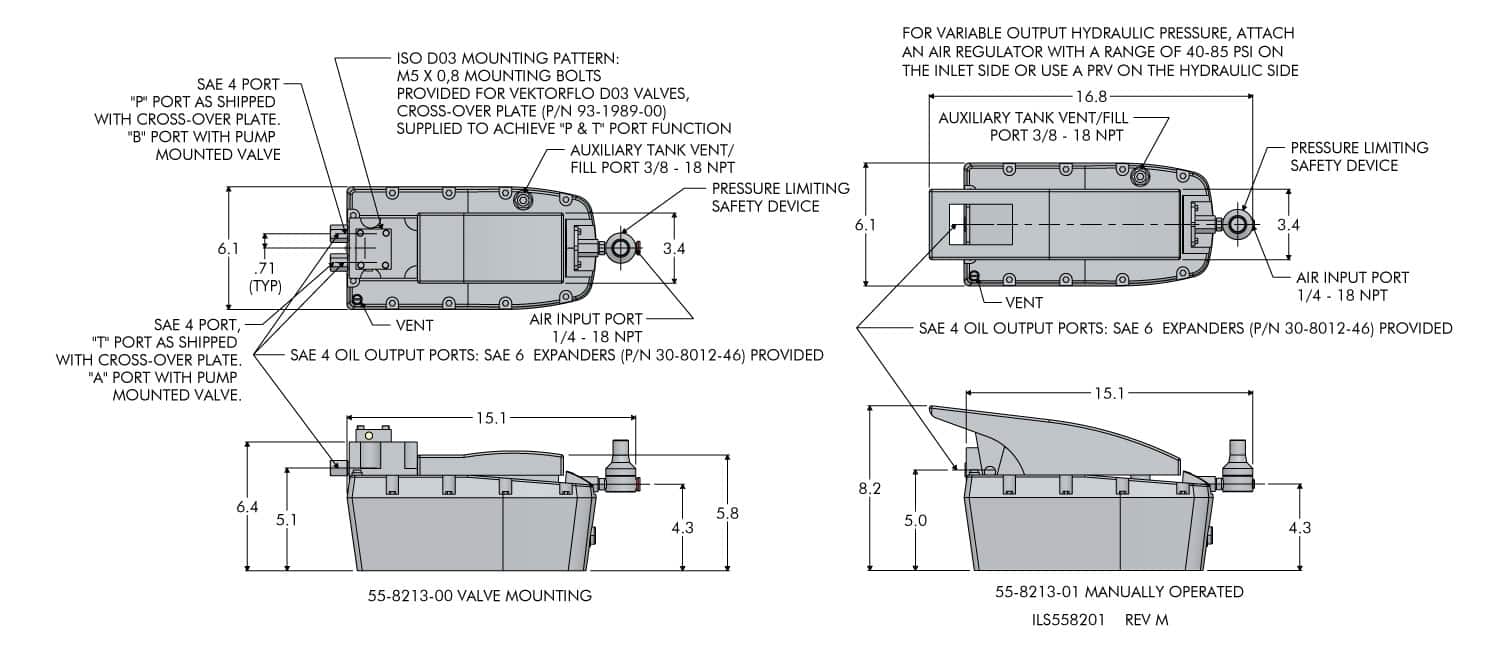

ils558201

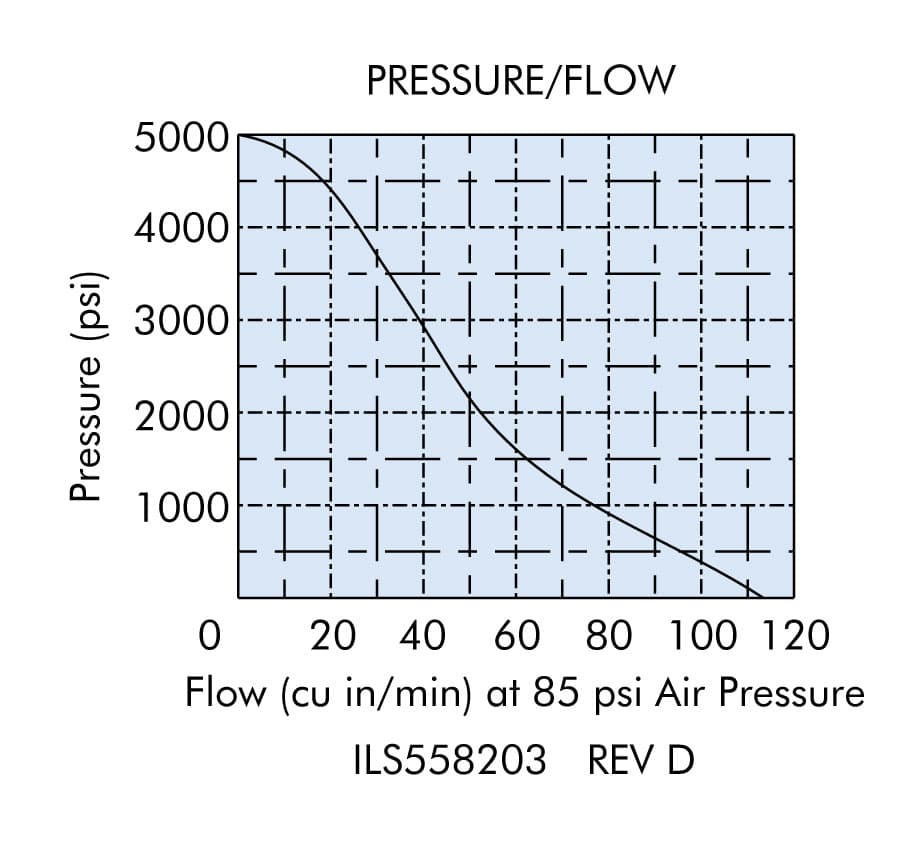

Compact Air/ Hydraulic Pump Pressure and Flow
Compact Air/Hydraulic Pump

Valve Needed 55-8213-00

  • Suitable for operating either single or double acting systems.
  • Valves can be mounted directly on the pump or remotely, no external sub-plate is necessary.
Compact Air/Hydraulic Treadle Pump

No Valve Needed 55-8213-01

  • For Single Acting Systems only.
  • Control valve built-in, no external valves are required or recommended.
  • Mounting hardware included.
  • Easily operated by hand or foot; press to pump, press to release. Pump does not run unless treadle is pressed to activate function.

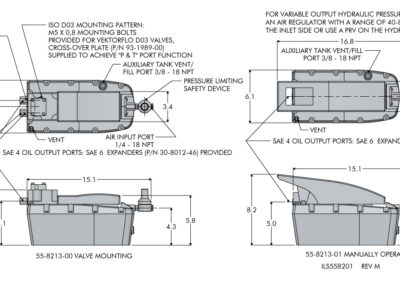

ils558201

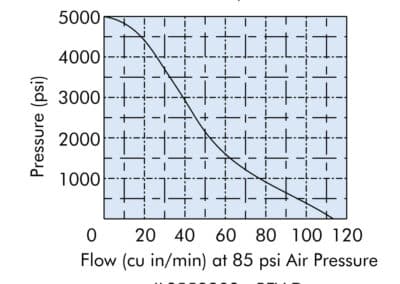

Compact Air/ Hydraulic Pump Pressure and Flow
Model No.Horizontal Reservoir CapacityVertical Reservoir CapacityMinimum Air Input PressureMaximum Air Input PressurePressure Range (psi.)Weight
55-8213-01Gross - 146.5 cu. in. / Useable - 128.2 cu. in.Gross - 134.3 cu. in. / Useable - 91.5 cu. in.40 psi85 psi2000 - 5000 psi16.30
Model No.Horizontal Reservoir CapacityVertical Reservoir CapacityMinimum Air Input PressureMaximum Air Input PressurePressure Range (psi.)Weight
55-8213-00Gross - 146.5 cu. in. / Useable - 128.2 cu. in.Gross - 134.3 cu. in. / Useable - 91.5 cu. in.40 psi85 psi2000 - 5000 psi20.30
