Pneumatic Position Sensing TuffCam Swing Clamps

Swing Clamps

The pneumatic sensing swing clamps use air pressure to provide unclamp feedback. The clamps build air pressure when swing clamps are unclamped and loses air pressure when not fully unclamped.

  • Available as Top Flange and Bottom Flange TuffCam Swing Clamp with 1,100 AND 2,600LB capacities. Double acting only.
  • Maximum operating pressure of 30 psi of air.
  • Unclamp confirmation.
  • Up to four pneumatic position sensing clamps per circuit.
  • Use with Vektek’s Air Sensing Control Kit 50-8240-00.

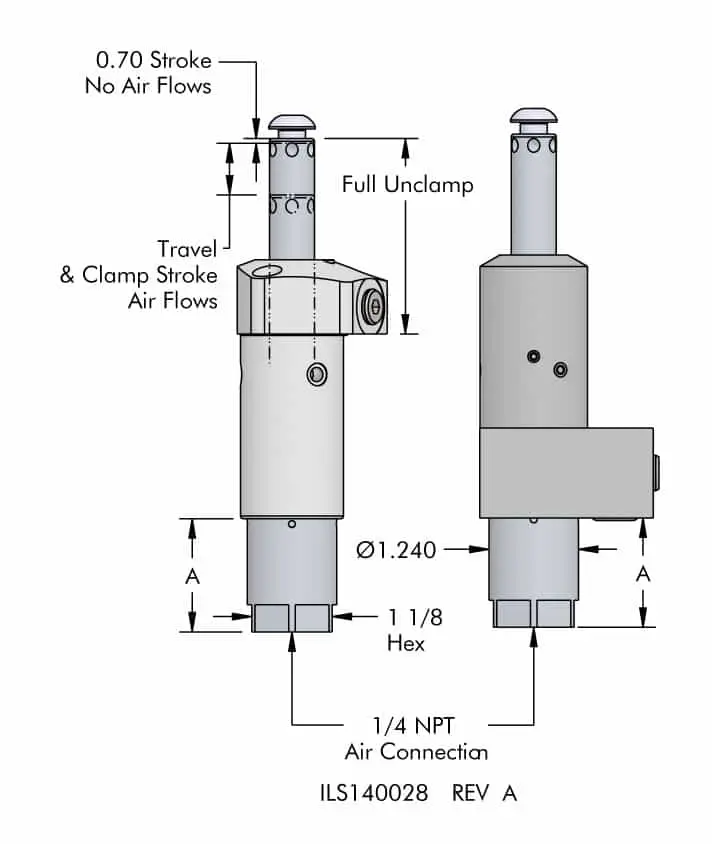

  • All dimensions identical to TuffCam Swing Clamps with the exception
    of the listed dimensions.
  • Estimated air flow of 0.15 CFM consumed.

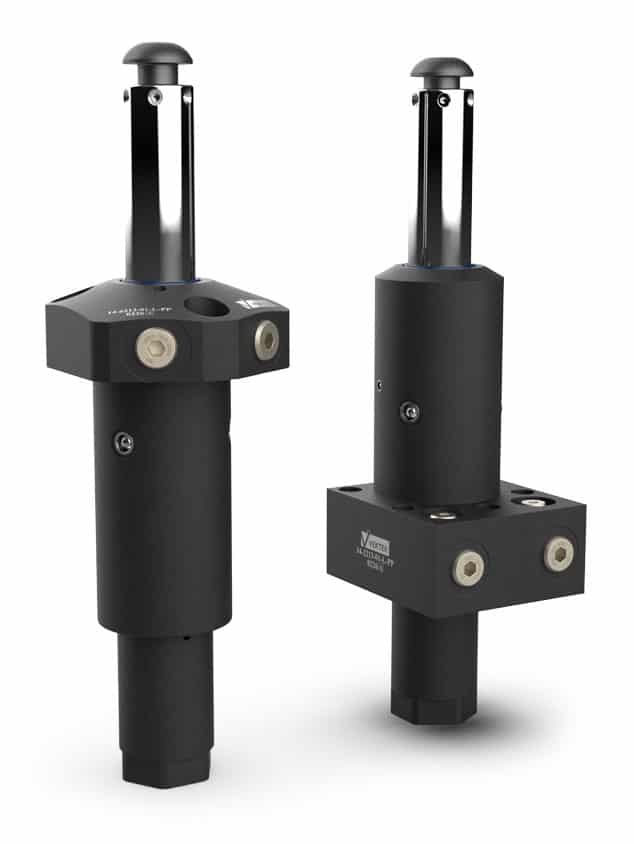

inch-Pneumatic-Position-Sensing-Tuffcam-Swing-Clamp
Pneumatic Position Sensing TuffCam Swing Clamp
Model No.Clamp Capacity (lb.)AInlet Port
14-2209-01-L-PP1,1001.515 in1/4 NPT
14-2209-01-R-PP1,1001.515 in1/4 NPT
14-2213-01-L-PP2,6002.009 in1/4 NPT
14-2213-01-R-PP2,6002.009 in1/4 NPT
Model No.Clamp Capacity (lb.)AInlet Port
14-6209-01-L-PP1,1001.570 in1/4 NPT
14-6209-01-R-PP1,1001.570 in1/4 NPT
14-6213-01-L-PP2,6002.060 in1/4 NPT
14-6213-01-R-PP2,6002.060 in1/4 NPT
