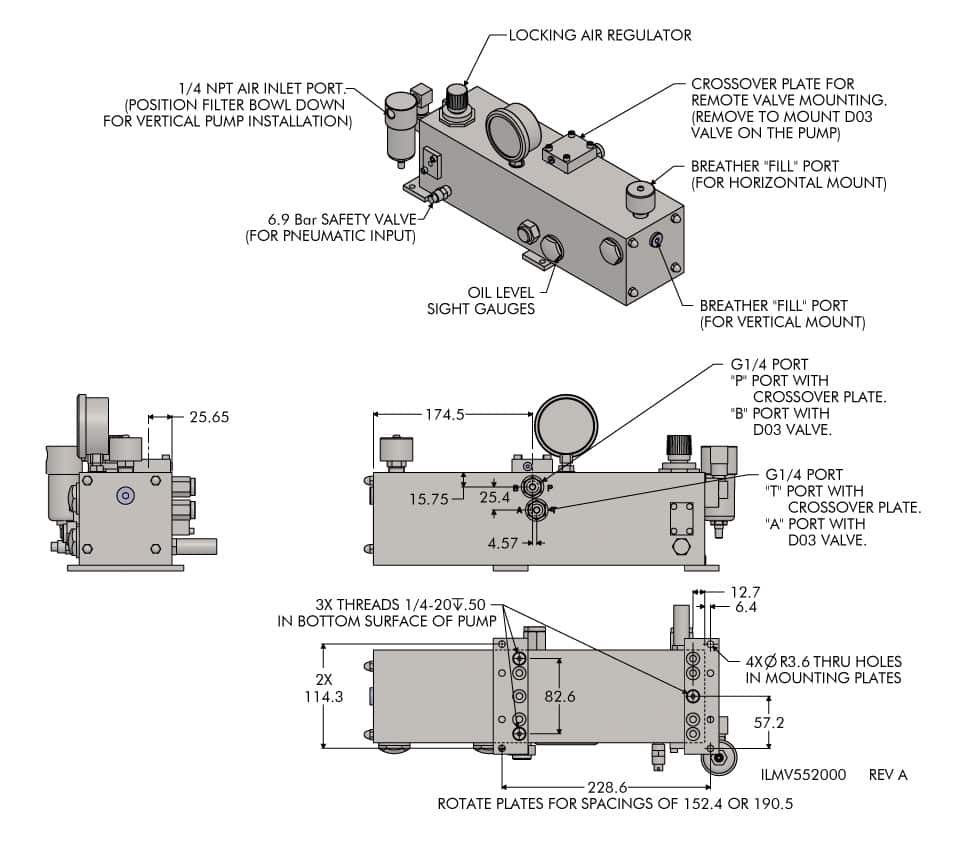

Power Supplies Pump Air/Hydraulic 60:1
Pump Air/Hydraulic 60:1
- Anodized aluminum construction.
- 60:1 pressure intensification!
- Suitable for most single fixtures and small pallet systems.
- Can power both single and double acting cylinders.
- D03 directional control valves can be directly mounted on the pump.
Most systems won’t need any external subplates or external plumbing. - Flow rates up to 0.98 liters per minute allow for fast device positioning.
- Adjustable pressure range from 80-350 Bar.
| Model No. | Horizontal Reservoir Capacity | Vertical Reservoir Capacity | Minimum Air Input Pressure | Maximum Air Input Pressure | Maximum Air Output | Pressure Range | Weight |
|---|---|---|---|---|---|---|---|
| 45-5210-00 | 1.11 Liters (As Shown) | 1.31 Liters (Reservoir Up and Filter Bowl Down) | 3.5 Bar | 8.3 Bar | 6.9 Bar | 80-350 Bar | 8.6 Kg |
