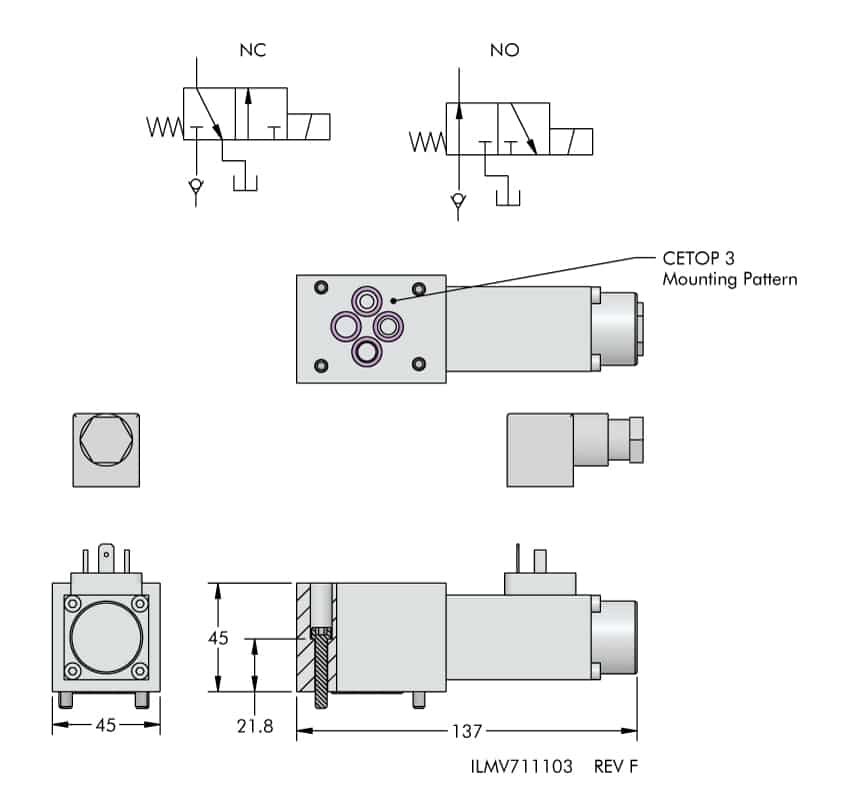

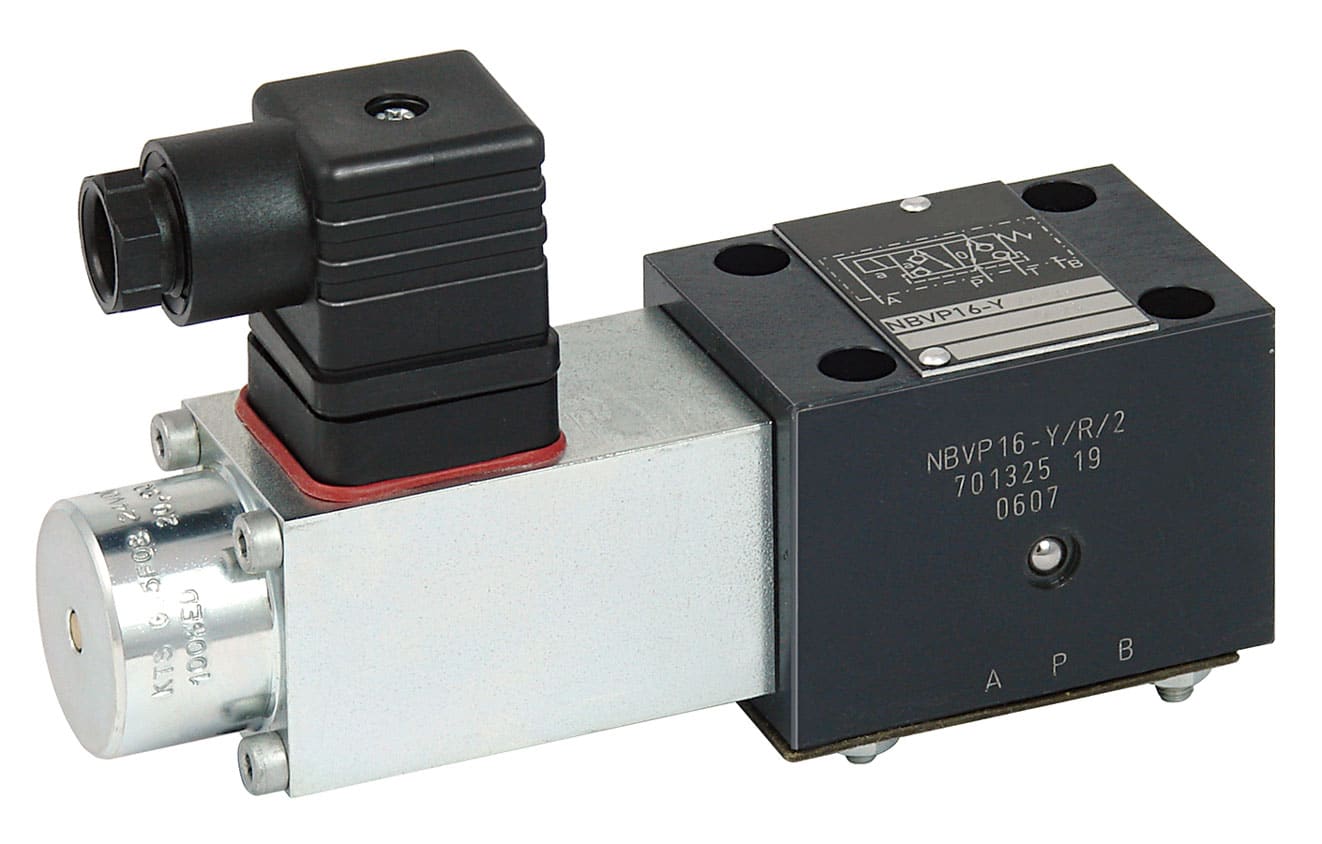

Solenoid Valve: 3-Port, 2-Position
Metric Directional Control Valves
- For use with single acting systems.
NOTE: Maximum system flow rate is 5.7 L/m for all VektorFlo® metric valves unless otherwise noted. Excess flow voids warranty.
WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.
| Model No. | Valve Configuration | Valve Mounting | Solenoid Voltage | Power Consumption | Duty Rating | Maximum Cycle Rate | Replacement Electrical Connector |
|---|---|---|---|---|---|---|---|
| 47-1112-54 | Normally Open | CETOP 3 | 24 VDC | 28 Watts | 100% | 2000/hr | 85-5342-91 |
| 47-1115-03 | Normally Closed | CETOP 3 | 24 VDC | 28 Watts | 100% | 2000/hr | 85-5342-91 |
