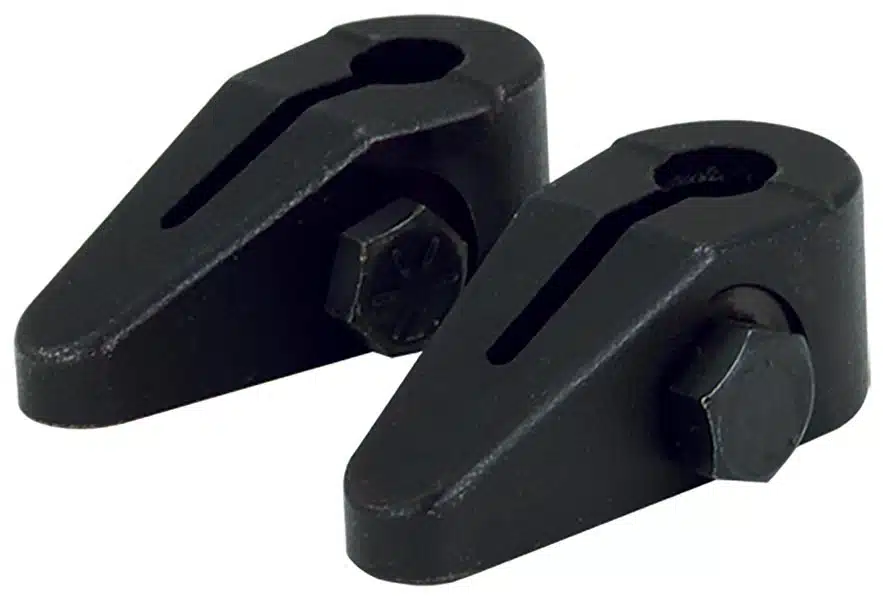

Swing Clamp Arms, Standard Length, Without Holes
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.

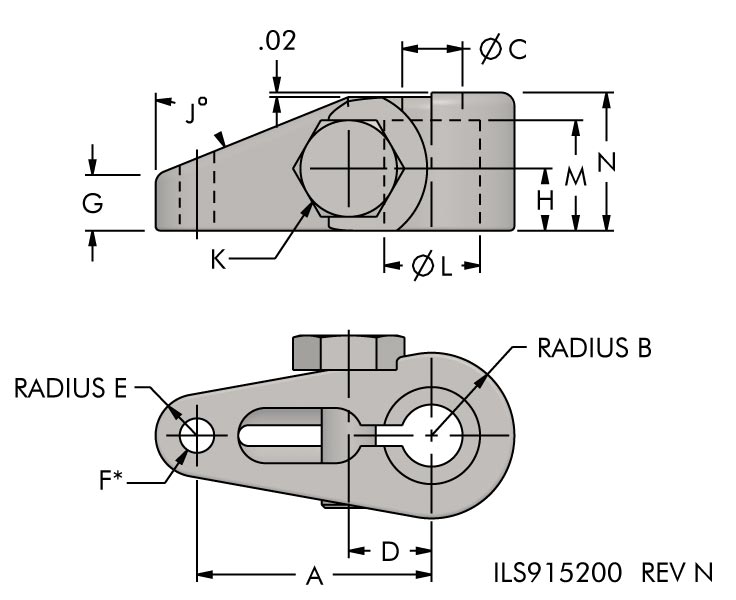

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5205-00 | 450 | 1.06 | 0.38 | 0.28 | 0.38 | 0.19 | N/A | 0.23 | 0.28 | 68 | 1/4 - 28 | 0.438 / 0.440 | 0.50 | 0.60 |
| 91-5209-00 | 1100 | 1.50 | 0.50 | 0.41 | 0.50 | 0.25 | N/A | 0.24 | 0.31 | 65 | 5/16 - 24 | 0.625 / 0.627 | 0.71 | 0.85 |
| 91-5213-00 | 2600 | 2.00 | 0.69 | 0.53 | 0.66 | 0.37 | N/A | 0.45 | 0.37 | 65 | 3/8 - 24 | 0.875 / 0.877 | 1.00 | 1.25 |
| 91-5218-00 | 5000 | 2.50 | 1.00 | 0.66 | 0.97 | 0.56 | N/A | 0.58 | 0.56 | 65 | 5/8 - 18 | 1.250 / 1.252 | 1.44 | 1.73 |
