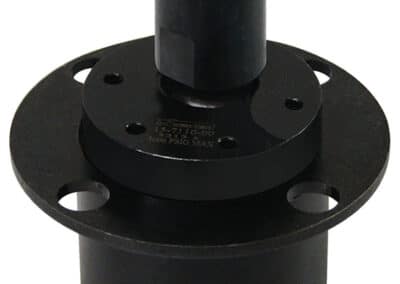

Power Pin
Special Use Clamps
- Spring Position and Hydraulic Clamping Pin.
- Spring force pushes part into position against fixed stops and hydraulic pressure keeps the part clamped during machining.
- Hydraulic manifold mounted.
- Hardened club heads, threaded pivot and spring cup.
- Club Heads sold separately.
- BHC™ (Black Hard Coat) body finish.
- Adjust club height then rotate the body to adjust position, adjust spring retention force and location.
* Club heads are sold separately.
** Hydraulic Contact Force is calculated at 5,000 psi maximum operating pressure. Force values are calculated at the end of the threaded pivot. The hydraulic contact force is adjustable by varying the hydraulic system pressure. To determine the approximate hydraulic contact force for your application divide the hydraulic contact force shown above by 5,000 and multiply the result by your system operating pressure. Actual force values will vary at the part depending on the club head design and location of contact.
*** Spring Contact Force values are calculated at the end of the threaded pivot. Actual force values vary at the part depending on the club head design and location of the contact.
** Hydraulic Contact Force is calculated at 5,000 psi maximum operating pressure. Force values are calculated at the end of the threaded pivot. The hydraulic contact force is adjustable by varying the hydraulic system pressure. To determine the approximate hydraulic contact force for your application divide the hydraulic contact force shown above by 5,000 and multiply the result by your system operating pressure. Actual force values will vary at the part depending on the club head design and location of contact.
*** Spring Contact Force values are calculated at the end of the threaded pivot. Actual force values vary at the part depending on the club head design and location of the contact.

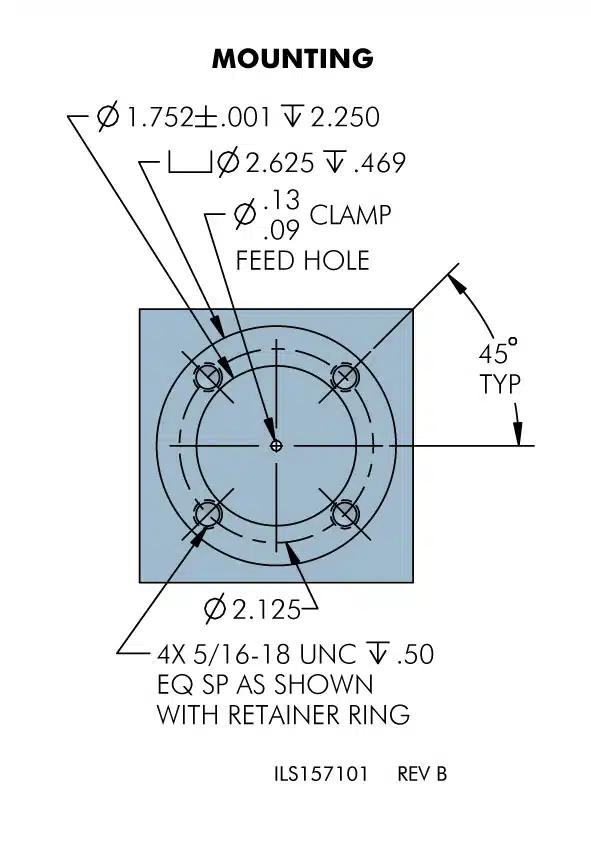

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.

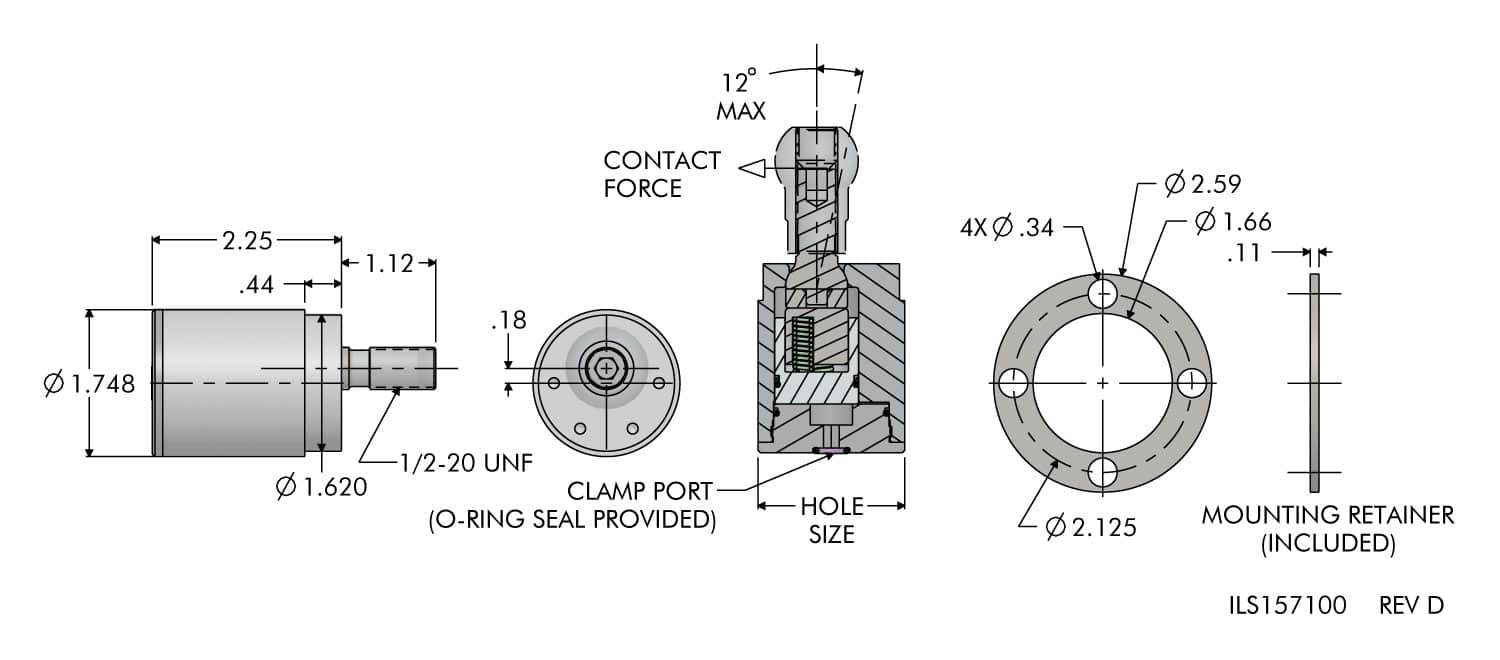

| Model No. | Hydraulic Clamp Force (lb.) | Spring Contact Force (lb.) | Piston Area (sq. in.) | Oil Capacity (cu. in.) | Pin / Lever Ratio | Hole Size (in.) |
|---|---|---|---|---|---|---|
| 15-7110-00 | 600 | 4.2-6.1 | 0.785 | 0.425 | 1 : 4.2 | 1.752 |
