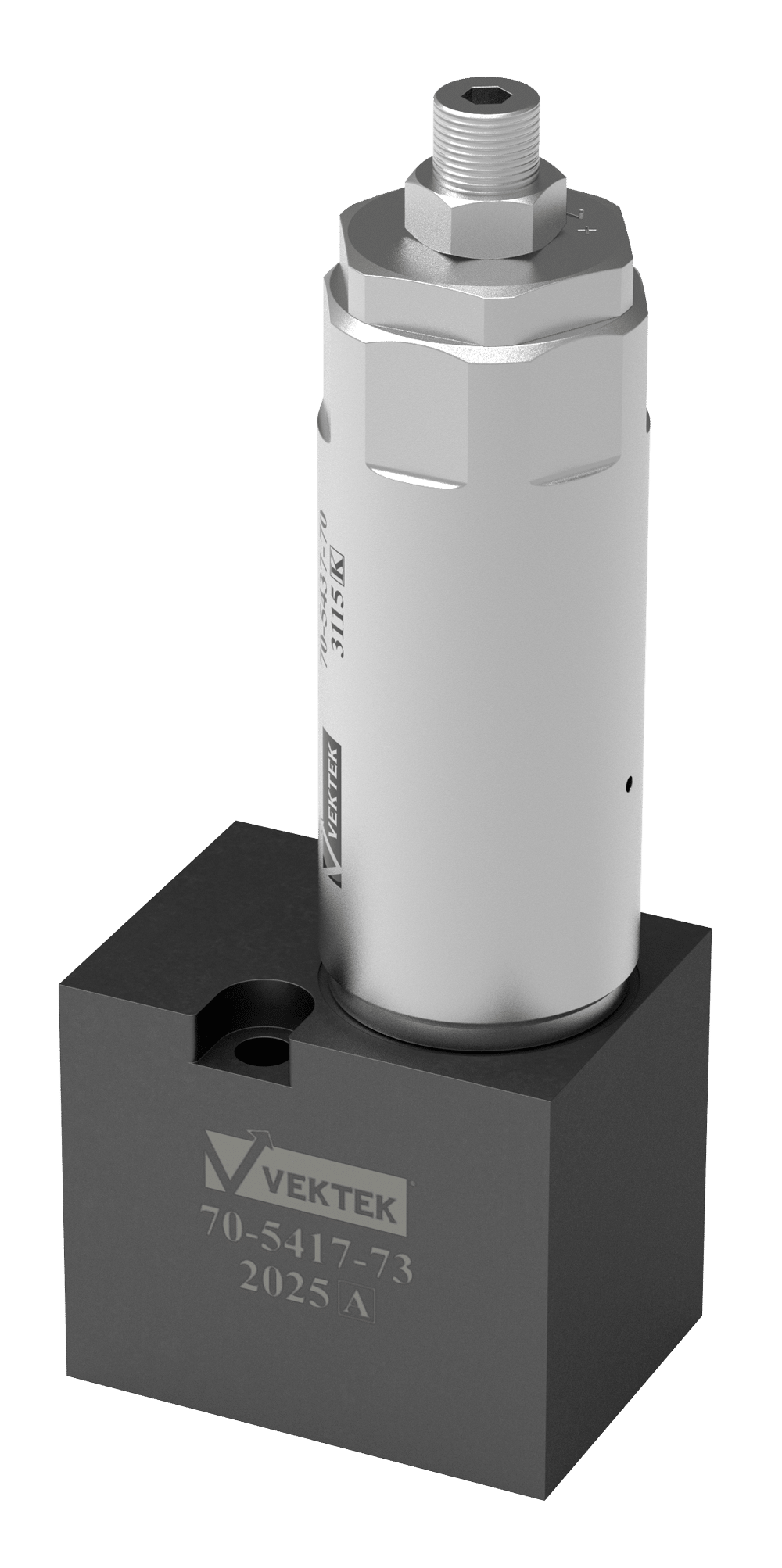

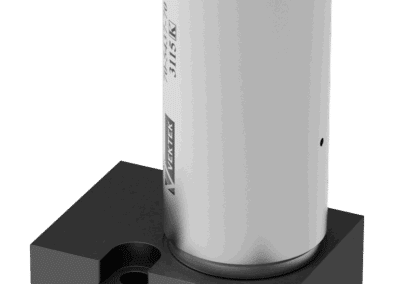

COMPACT BLOCK MANIFOLD MOUNT PRESSURE REDUCING VALVE
Accessory Valves
- Valve is 100% stainless steel construction which resists corrosion.
- The cartridge may be installed directly into your manifold.
- Two-port design eliminates need for third fluid line to drain bypass flow (internal
leakage) back to system reservoir. - Low profile, compact manifold that allows for smaller mounting area for the PRV.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum).
- Order a Filter Plate to protect valves from debris (model 70-8427-70)
* Maximum Inlet Pressure for PRV Valves is 5000 psi

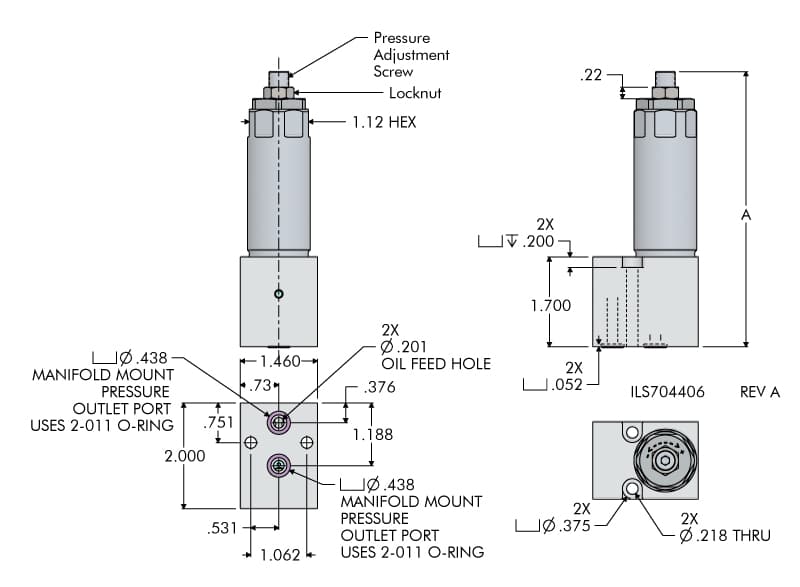

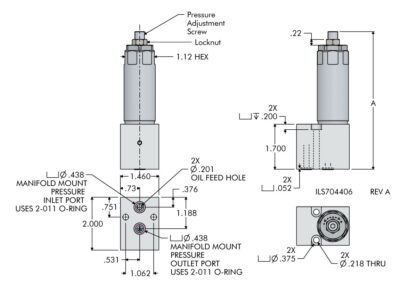

Counterbored for o-rings that are used for manifold mounting.
.09/ .25 OIL FEED HOLES
NOTE: Maximum system flow rate is 1.5 gpm (346.5 cu. in. per minute) for all VektorFlo® special function valves, unless otherwise noted. Excess flow voids warranty.
For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.
| Model No. | Inlet Pressure | Set Pressure Range | Repeatability | A |
|---|---|---|---|---|
| 70-5417-72 | 3000 PSI* | <3000 PSI 150-900PSI / >3000 PSI 300-900 PSI | ± 10% | 5.2 |
| 70-5417-73 | 5000 PSI* | 750-4500 PSI | ± 7% | 6.0 |
