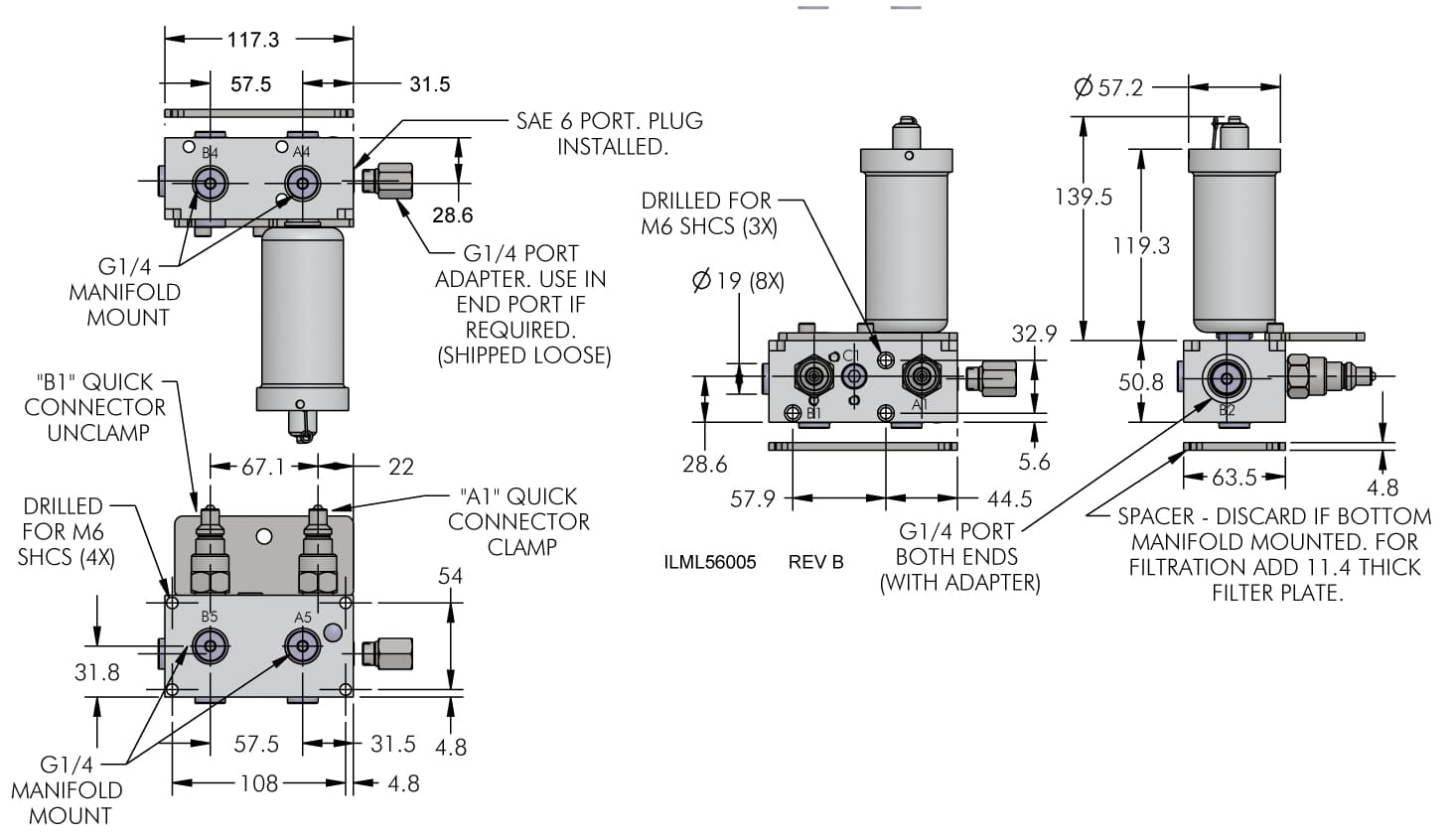

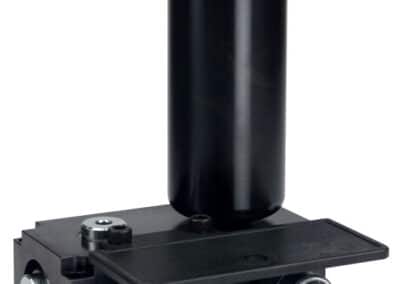

External Accumulator

Low Pressure Pallet Fixture Accessories

Complete 2-Hand Low Pressure Decoupling Solution
Automatic Shutoff Valve Decouplers for Single and Double Acting Systems

• Decouplers are a complete, self contained package for disconnecting a fixture from its power supply while machining.
• Everything is there for you: Quick connect coupling, filters, accumulators, pilot operated check valve and over-pressure relief valve!
• Robust pilot operated check valve with 1 to 5 ratio of pilot to check pressure for proven long term reliability.
• Internal 25 micron filters for added protection of pilot operated check valve thru ports A1, A2, A3, A4 & C1. Additional filtration provided at port B1. (Filtration for A3, B3 or A4, B4 available by purchasing Vektek filter block L7-0842-05 or L7-0842-06 depending on mounting orientation.)
• G1/4 ports and manifold mounting (bottom and rear) connections on all models.
• Single acting pallet circuits require 2 hoses to the operating handle for pressure release.

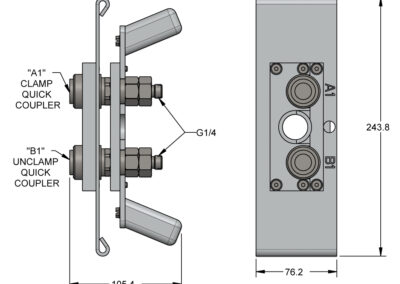

• For use with Operating Handle Model No. L5-6005-04.

• Customers that have previously bought a decoupler can purchase a new cover for their old decoupler. New orders of decouplers will come with cover.
• 100 lb. Tensile Strength.

• Maximum working pressure – 10 MPa
• Provides a fast, positive connection to the decoupler.
• Ergonomic design reduces operator fatigue.
• The Two-Handed Handle may be used with the optional Handle Docking Module to assure that the hoses are disconnected from the pallet before it is shuttled into the machine.
• SAFETY: See Docking Station.
