Handle Docking Station
Low Pressure Palletized Fixture Accessories

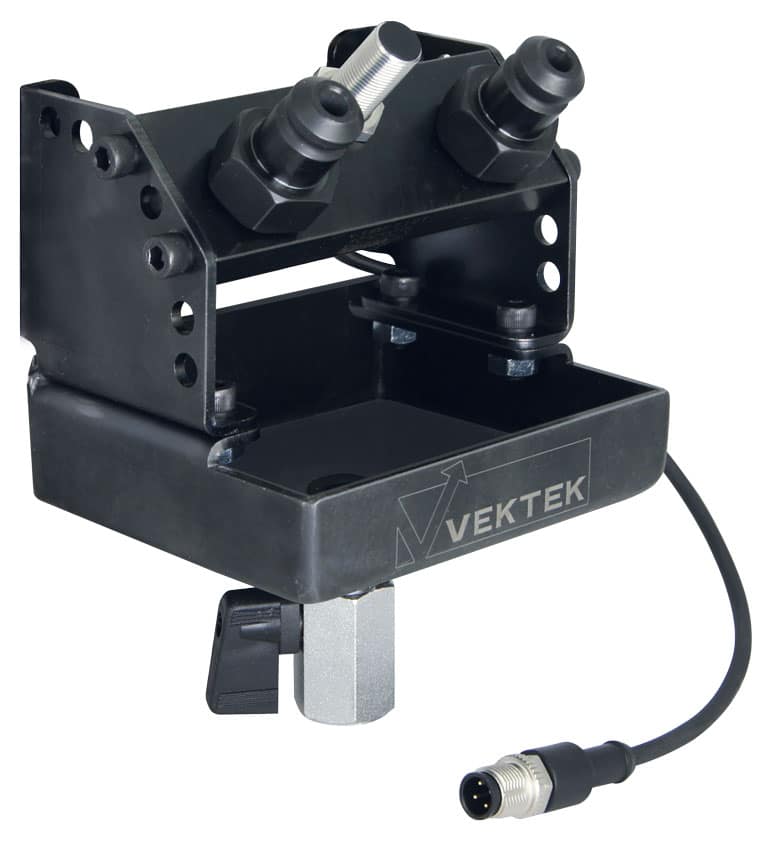

Handle Docking Station with optional feedback sensor
Docking Stations for the 1-Handed or 2-Handed Automatic Shutoff Pallet Decoupler Handle. This handy device provides a standard contamination-free location for quick-disconnect handle storage. The Handle Docking Stations have a drain pan to keep your work area free of slip and fall hazards created by dripping disconnects.
- The optional Proximity Switch confirms the decoupler handle and hoses are connected to the docking station. The pallet can then be safely shuttled into the machine.

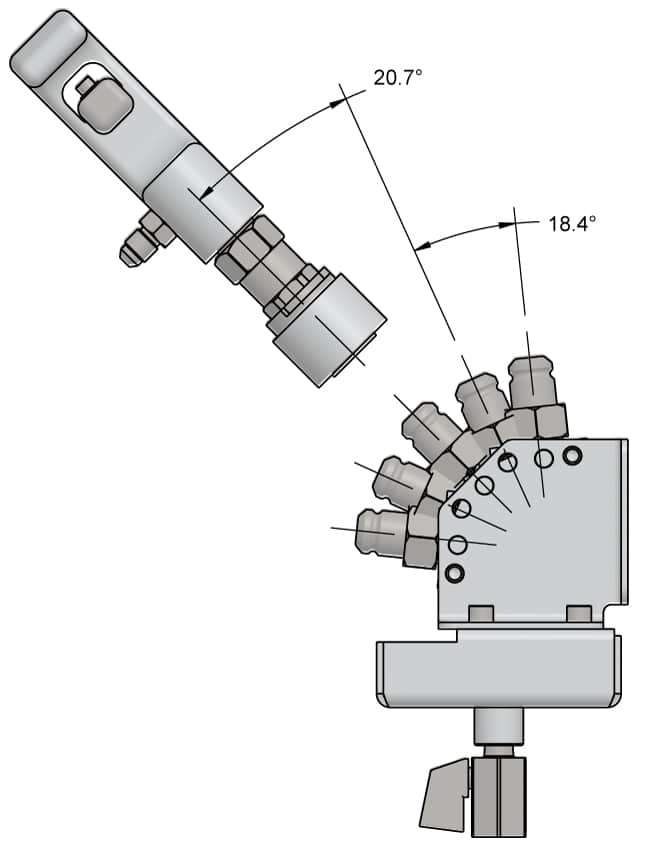

- Adjustable five positions ensure the Docking Station is ergonomically friendly for operators.
- Docking couplers are for handle retention only.

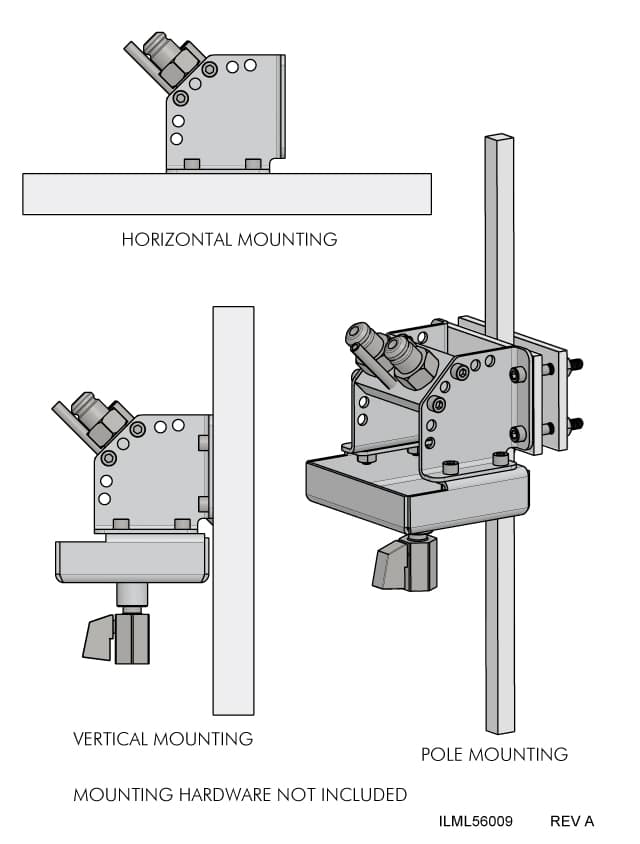

- Flexible mounting allows for vertical, horizontal or pole applications.
- Mounting holes for M6 Diameter bolts.

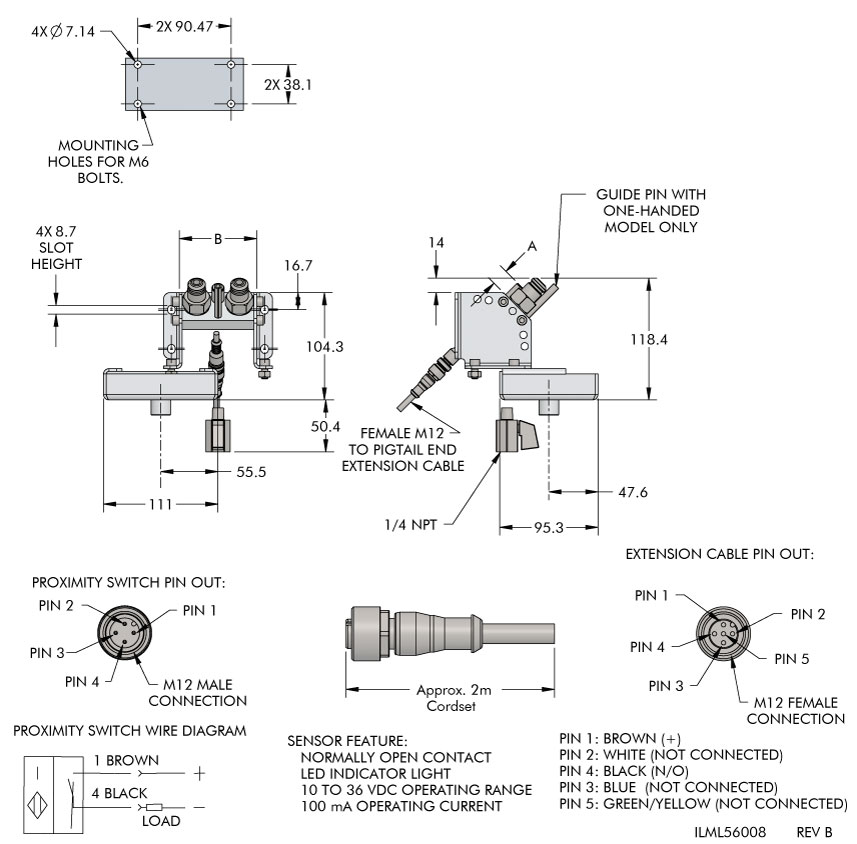

| Model No. | Mounting Style | A Proximity Switch Height | B Dock Width |
|---|---|---|---|
| L5-6005-28 | No Proximity Switch - Two-Handed | N/A | 111.1 |
| L5-6005-29 | Proximity Switch - Two-Handed | 26.3 | 111.1 |
| L5-6008-01 | No Proximity Switch - One-Handed | N/A | 74.9 |
| L5-6008-02 | Proximity Switch - One-Handed | 17.3 | 74.9 |
