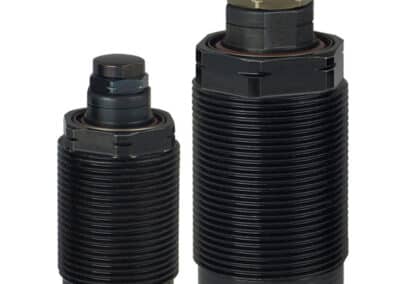

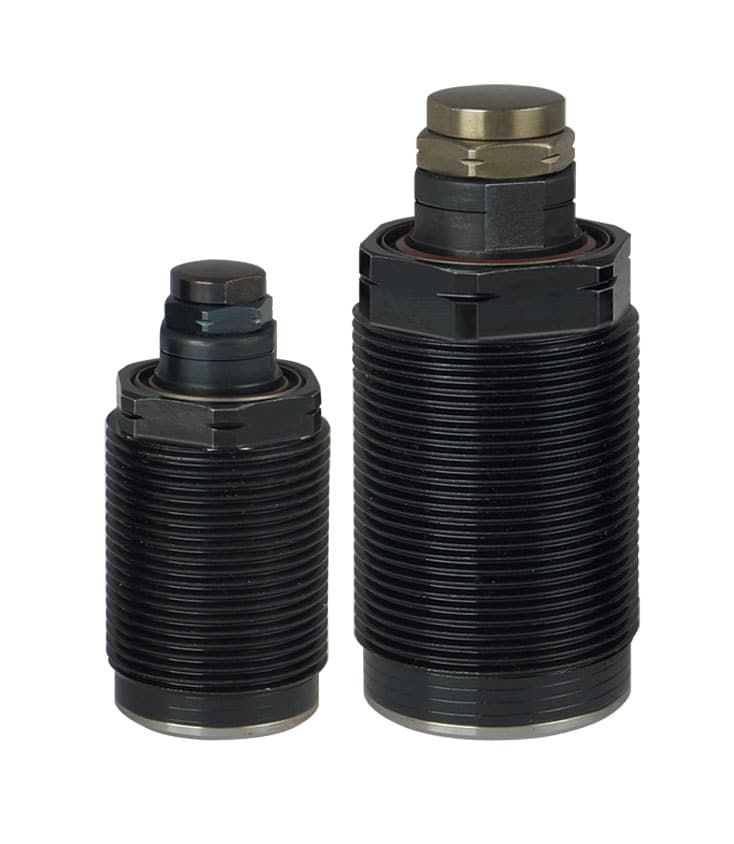

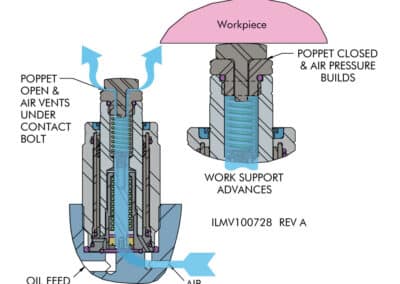

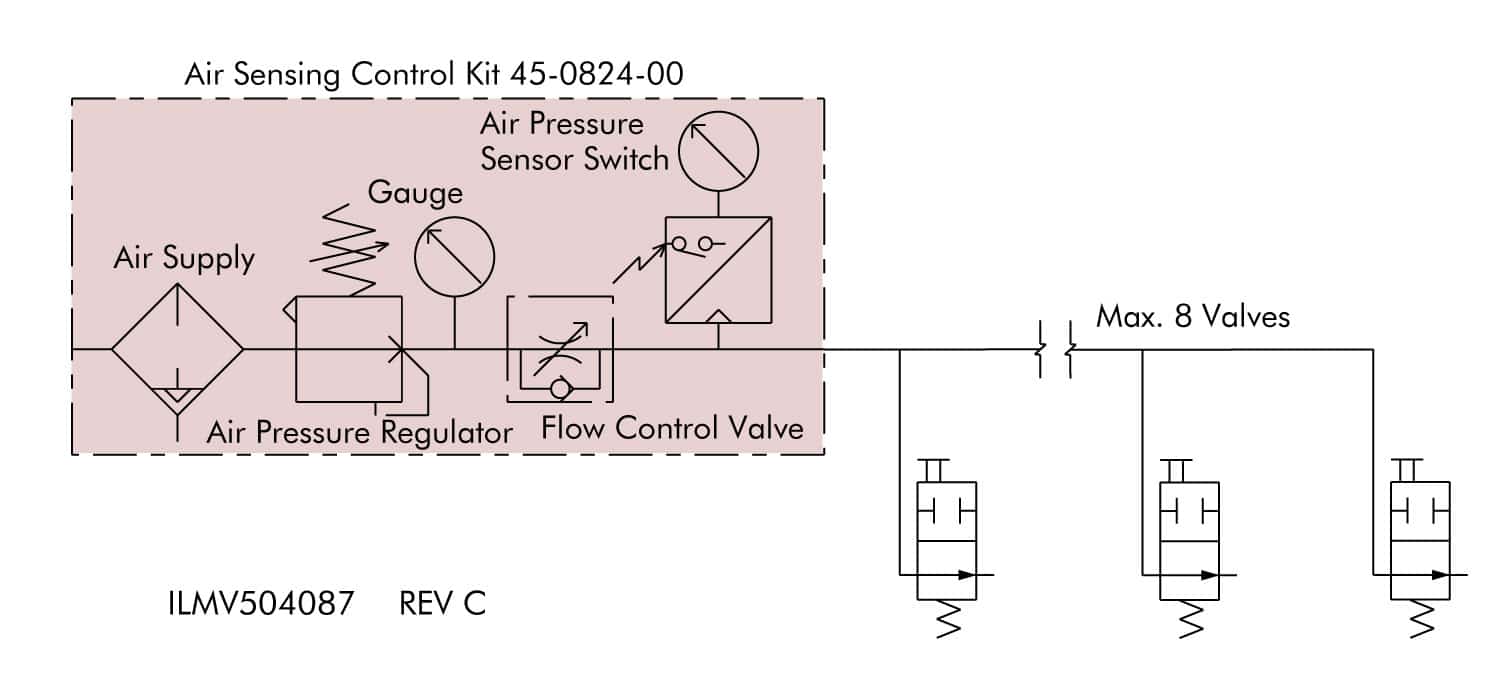

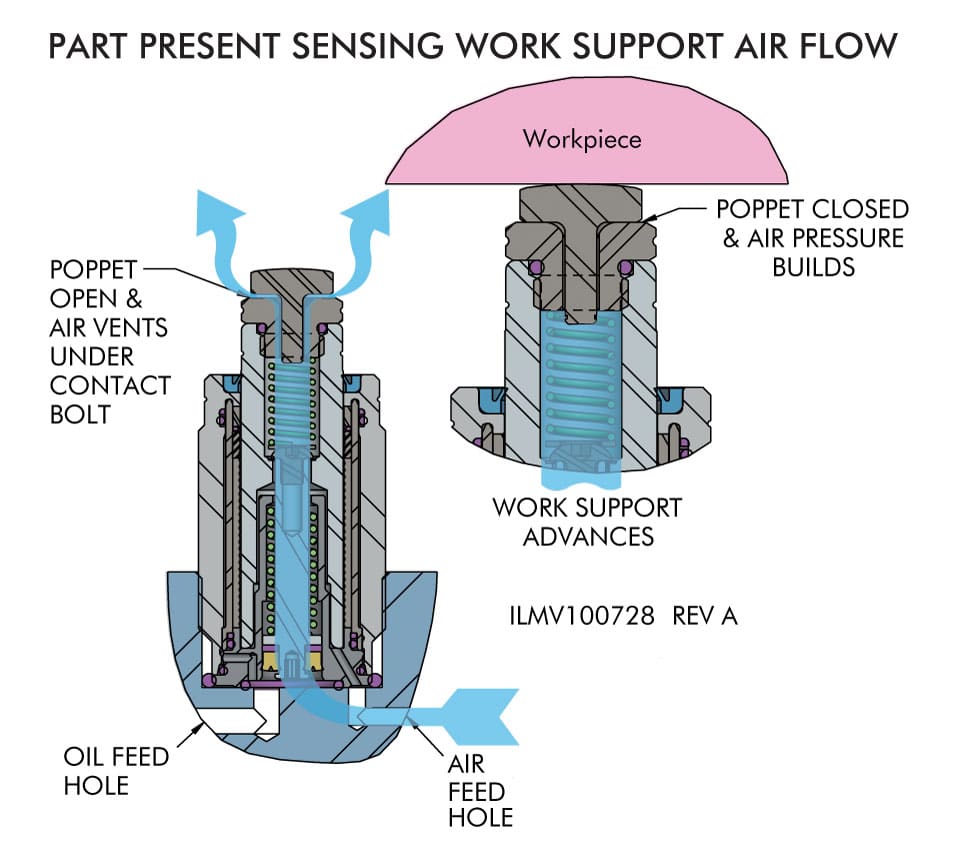

High Capacity Cartridge Mount Part Present Sensing Fluid Advance Work Support
Metric Work Supports
- Confirm capacity of item selected.
- Note the sealing surface finish requirements.
- Minimum depth specification represents the nominal depth of the standard Vektek base dimension.
- Confirm cavity drawing is appropriate for the model number used.
- Note specified thread depth when cutting threads.
- When using a bottoming tap tool, modifications may be required.
- When hand tapping threads, perpendicularity is essential.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 0.7 bar (0.07 MPa) Returning back-pressure greater than 0.7 bar (0.07 MPa) may cause slow or failed retraction.
* Support capacities are listed at 350 Bar maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart.
** Restrict flow rate to a maximum of 2.13 l/min.
*Retaining ring, adapter, and o-ring may be ordered as needed.
| Model No. | Support Capacity (kN) | Contact Force (N) | Stroke (mm) | Retracted Height (mm) | Oil Capacity (cm³) |
|---|---|---|---|---|---|
| 41-0706-10-PS | 8.9 | 4.4 - 26.7 | 6.5 | 57.8 | 0.8 |
| 41-0706-16-PS | 8.9 | 4.4 - 26.7 | 12.5 | 70.6 | 1.1 |
| 41-0708-10-PS | 17.8 | 13.5 - 44.5 | 6.5 | 77.2 | 3.3 |
| 41-0708-16-PS | 17.8 | 13.5 - 44.5 | 12.5 | 89.7 | 3.7 |
| 41-0710-10-PS | 35.6 | 18 - 57.8 | 15.9 | 108.7 | 9.3 |

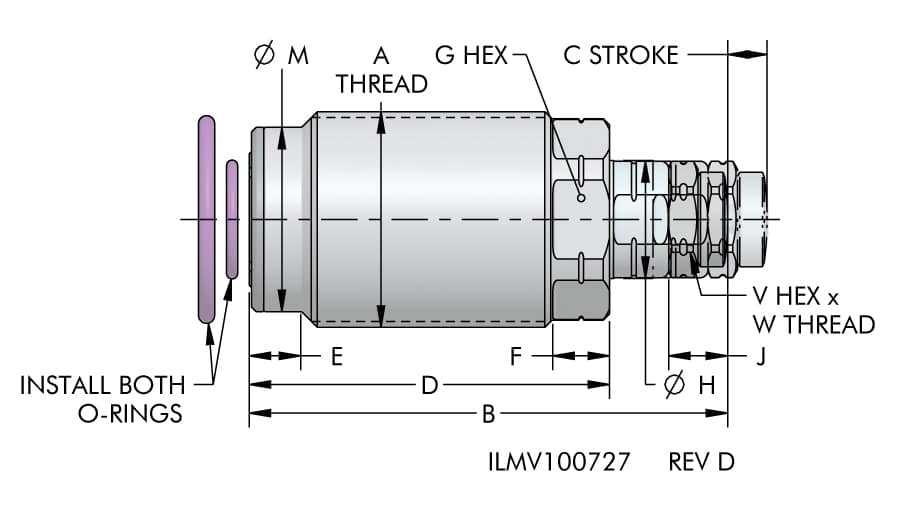

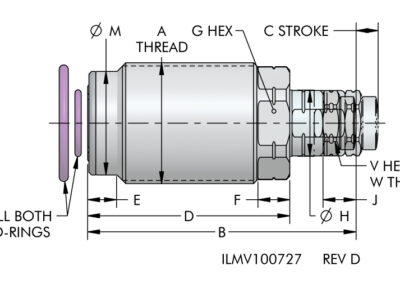

| Model No. | A | B | C | D | E | F | G | H | J | M | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0706-10-PS | M26 X 1.5 | 57.8 | 6.5 | 43.7 | 6.3 | 5.5 | 23 | 14.3 | 7.1 | 23.3 | 11 | M8 X 1.25 X 5 |
| 41-0706-16-PS | M26 X 1.5 | 70.6 | 12.5 | 55.4 | 6.3 | 5.5 | 23 | 14.3 | 7.1 | 23.3 | 13 | M10 X 1.5 X 5 |
| 41-0708-10-PS | M35 X 1.5 | 77.2 | 6.5 | 58.1 | 8.5 | 9.3 | 30 | 19 | 9.5 | 29.7 | 17 | M12 X 1.75 X 6.5 |
| 41-0708-16-PS | M35 X 1.5 | 89.7 | 12.5 | 67.9 | 8.5 | 9.3 | 30 | 19 | 9.5 | 29.7 | 17 | M12 X 1.75 X 6.5 |
| 41-0710-10-PS | M45 X 1.5 | 108.7 | 15.9 | 81.7 | 8.3 | 10.2 | 38 | 25.2 | 15.1 | 42.9 | 21 | M15 X 1.0 X 8 |

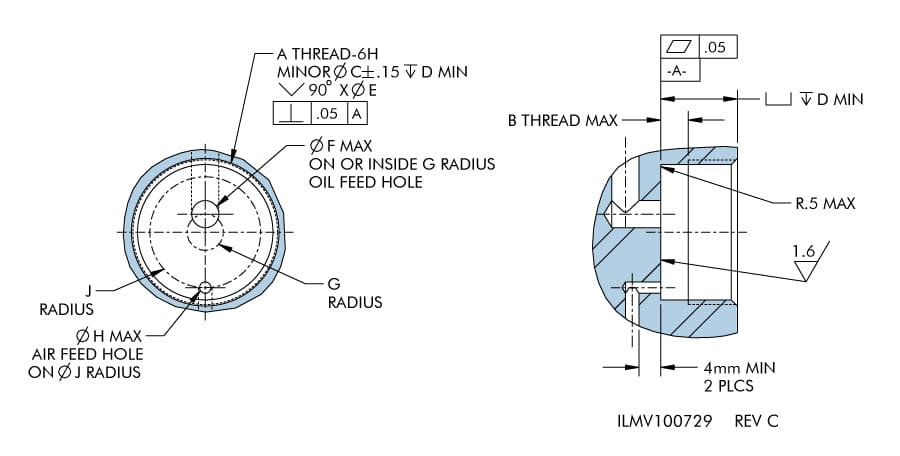

| Model No. | A | B | C | D | E | F | G | H | J | Installation Torque |
|---|---|---|---|---|---|---|---|---|---|---|
| 41-0706-10-PS | M26 X 1.5 | 4.3 | 24.5 | 13.5 | 27 | 5 | 3.2 | 2 | 9.8 | 50 N-m |
| 41-0706-16-PS | M26 X 1.5 | 4.3 | 24.5 | 13.5 | 27 | 5 | 3.2 | 2 | 9.8 | 50 N-m |
| 41-0708-10-PS | M35 X 1.5 | 6.6 | 33.5 | 21.5 | 36 | 5 | 4.7 | 3 | 12 | 70 N-m |
| 41-0708-16-PS | M35 X 1.5 | 6.6 | 33.5 | 21.5 | 36 | 5 | 4.7 | 3 | 12 | 70 N-m |
| 41-0710-10-PS | M45 X 1.5 | 6.5 | 43.5 | 20 | 46 | 6 | 7.5 | 4.5 | 17.5 | 136 N-m |

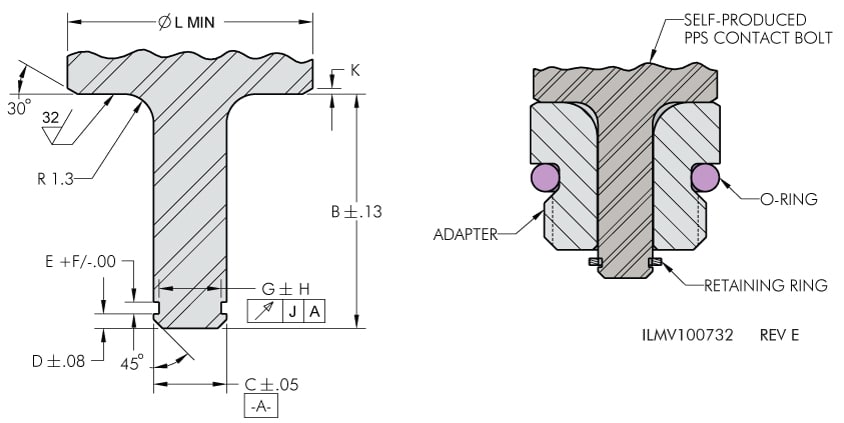

| Model No. | Retaining Ring No. | Adapter No. | O-Ring Part Number | O-Ring Size | Max Weight | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0706-10-PS | 23-0100-07 | 41-0606-01 | 39-0510-59 | 6 X 1.5 mm | 113 g | 10.2 | 3.2 | 0.64 | 0.51 | 0.05 | 2.7 | 0.038 | 0.038 | 0.25 | 10.3 |
| 41-0706-16-PS | 23-0100-07 | 41-0606-01 | 39-0510-59 | 6 X 1.5 mm | 113 g | 10.2 | 3.2 | 0.64 | 0.51 | 0.05 | 2.7 | 0.038 | 0.038 | 0.25 | 10.3 |
| 41-0708-10-PS | 23-0100-08 | 41-0608-01 | 39-0020-69 | 9.2 X 1.8 mm | 122 g | 12.6 | 4.0 | 0.64 | 0.51 | 0.05 | 3.4 | 0.038 | 0.038 | 0.38 | 15.2 |
| 41-0708-16-PS | 23-0100-08 | 41-0608-01 | 39-0020-69 | 9.2 X 1.8 mm | 122 g | 12.6 | 4.0 | 0.64 | 0.51 | 0.05 | 3.4 | 0.038 | 0.038 | 0.38 | 15.2 |
| 41-0710-10-PS | 23-0100-06 | 41-0108-40 | 39-0511-76 | 12 x 2 mm | 204 g | 18.3 | 6.35 | 0.76 | 0.74 | 0.08 | 5.6 | 0.051 | 0.051 | 0.51 | 17.4 |
