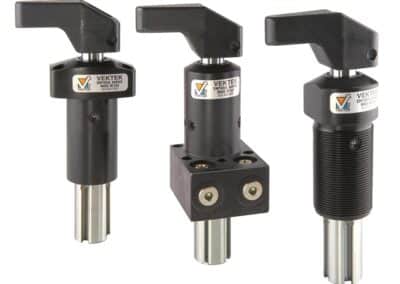

TuffCam Magnetic Position Sensing Inch Hydraulic Swing Clamps
Magnetic Position Sensing System
- Available as TuffCam™ Swing Clamps 450, 1100 and 2600 lbs (excludes Long Stroke models).
- Sensors sold separately.
- Sensor mounting housing is concentric to plunger shaft.
- For use with Double Acting clamps only.
- TuffCam™ Clocking feature uses standard Vektek arms.
- Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
- Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
* In-Port valves require the use of manifold mount ports.

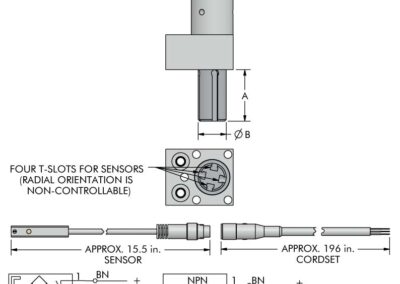

Dimensions the same as Non-sensing Products. For full body dimensions, click one of the following products and select the Dimensions tab for that page; Threaded Body, Top Flange and Bottom Flange.
Sensor Kits Ordered Separately
- 62-2970-00 PNP Position Sensing Kit includes: a 29-7001-00 Sensor and a 27-6424-00 Cord set
- 62-2970-01 NPN Position Sensing Kit includes: a 29-7001-01 Sensor and a 27-6424-00 Cord set
The use of NPN or PNP is determined by the type of control unit to which the sensor is connected. One Sensor is required for each sensing position.
Sensor Feature:
- Normally Open Contact
- LED Indicator Light
- 10 to 30 VDC operating range
- 3 Watt Maximum Contact Rating
- ≤ 0.8 ms Switch-off time
- ≤ 1.0 ms Switch-on time
| Model No. | Mounting Style | Swing Direction | Clamp Capacity (lb.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|
| 14-6205-01-L-PS | Top Flange | Left | 450 | SAE 2 X 0.48 |
| 14-6205-01-R-PS | Top Flange | Right | 450 | SAE 2 X 0.48 |
| 14-6209-01-L-PS | Top Flange | Left | 1100 | SAE 4 X 0.58 |
| 14-6209-01-R-PS | Top Flange | Right | 1100 | SAE 4 X 0.58 |
| 14-6213-01-L-PS | Top Flange | Left | 2600 | SAE 4 X 0.58 |
| 14-6213-01-R-PS | Top Flange | Right | 2600 | SAE 4 X 0.58 |
| Model No. | Mounting Style | Swing Direction | Clamp Capacity (lb.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|
| 14-0205-01-L-PS | Threaded Body | Left | 450 | N/A |
| 14-0205-01-R-PS | Threaded Body | Right | 450 | N/A |
| 14-0209-01-L-PS | Threaded Body | Left | 1100 | N/A |
| 14-0209-01-R-PS | Threaded Body | Right | 1100 | N/A |
| 14-0213-01-L-PS | Threaded Body | Left | 2600 | N/A |
| 14-0213-01-R-PS | Threaded Body | Right | 2600 | N/A |
| Model No. | Mounting Style | Swing Direction | Clamp Capacity (lb.) | Port X For Optional In-Port Valves |
|---|---|---|---|---|
| 14-2205-01-L-PS | Bottom Flange | Left | 450 | SAE 4 X 0.58 |
| 14-2205-01-R-PS | Bottom Flange | Right | 450 | SAE 4 X 0.58 |
| 14-2209-01-L-PS | Bottom Flange | Left | 1100 | SAE 4 X 0.75 |
| 14-2209-01-R-PS | Bottom Flange | Right | 1100 | SAE 4 X 0.75 |
| 14-2213-01-L-PS | Bottom Flange | Left | 2600 | SAE 4 X 0.75 |
| 14-2213-01-R-PS | Bottom Flange | Right | 2600 | SAE 4 X 0.75 |
| Model No. | Clamp Capacity (lb.) | A | B |
|---|---|---|---|
| 14-6205-01-L-PS | 450 | 1.72 | 1.00 |
| 14-6205-01-R-PS | 450 | 1.72 | 1.00 |
| 14-6209-01-L-PS | 1100 | 1.89 | 1.00 |
| 14-6209-01-R-PS | 1100 | 1.89 | 1.00 |
| 14-6213-01-L-PS | 2600 | 2.27 | 1.00 |
| 14-6213-01-R-PS | 2600 | 2.27 | 1.00 |
| Model No. | Clamp Capacity (lb.) | A | B |
|---|---|---|---|
| 14-0205-01-L-PS | 450 | 1.72 | 1.00 |
| 14-0205-01-R-PS | 450 | 1.72 | 1.00 |
| 14-0209-01-L-PS | 1100 | 1.89 | 1.00 |
| 14-0209-01-R-PS | 1100 | 1.89 | 1.00 |
| 14-0213-01-L-PS | 2600 | 2.27 | 1.00 |
| 14-0213-01-R-PS | 2600 | 2.27 | 1.00 |
| Model No. | Clamp Capacity (lb.) | A | B |
|---|---|---|---|
| 14-2205-01-L-PS | 450 | 1.66 | 1.00 |
| 14-2205-01-R-PS | 450 | 1.66 | 1.00 |
| 14-2209-01-L-PS | 1100 | 1.84 | 1.00 |
| 14-2209-01-R-PS | 1100 | 1.84 | 1.00 |
| 14-2213-01-L-PS | 2600 | 2.21 | 1.00 |
| 14-2213-01-R-PS | 2600 | 2.21 | 1.00 |
| Model No. | Position Sensing |
|---|---|
| 62-2970-00 | PNP Position Sensing Kit |
| 62-2970-01 | NPN Position Sensing Kit |
