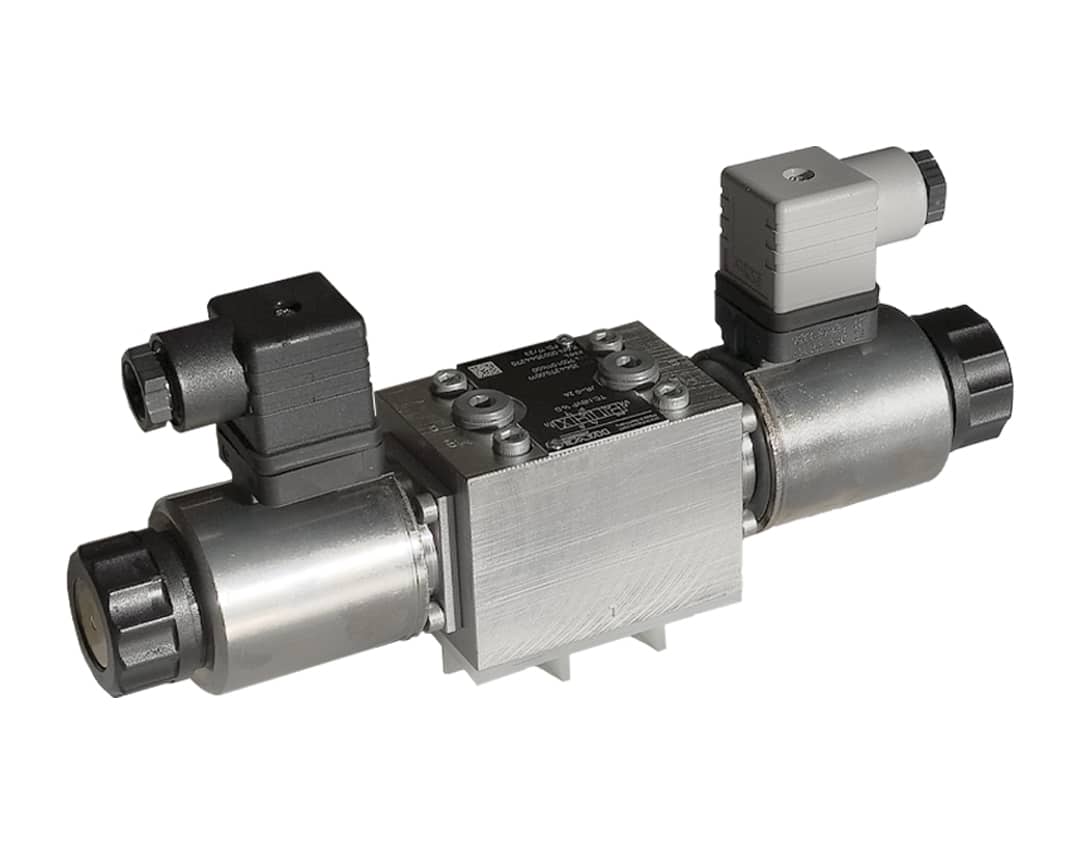

Solenoid Valve: 4-Port, 3-Position

Metric Directional Control Valves

• These valves can be used to control a double acting workholding system. (May also be used to control single acting systems).
• Provide improved control of clamping circuits with true poppet design.
• Multiple coil voltages available.
• Internal design promotes improved service life.

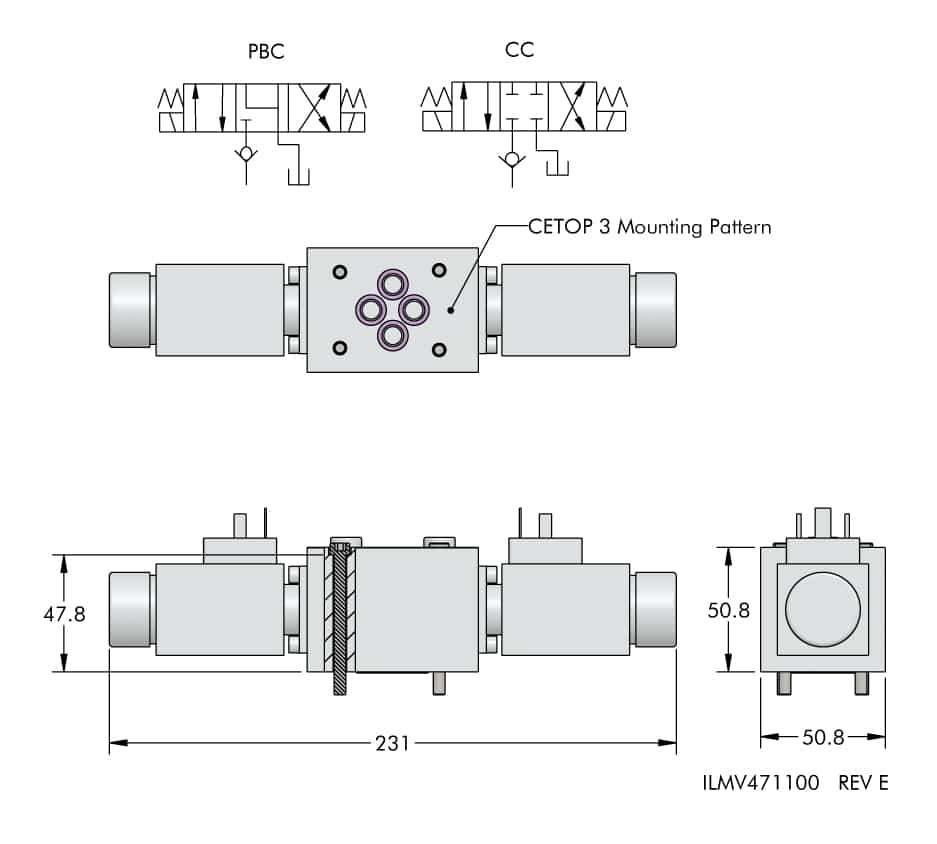

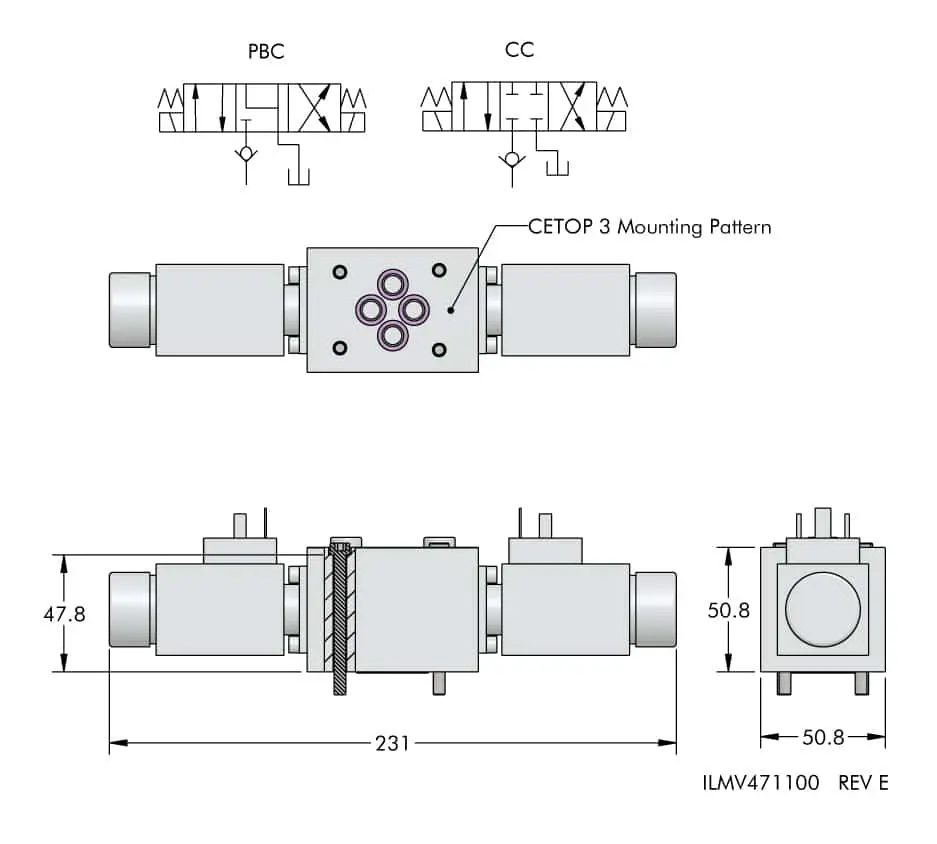

• Narrow width allows mounting of multiple valves on standard CETOP 3 manifolds.
• All valves have built-in P-Block check for fail safe multi-valve operation.
• Coils can be easily replaced.

NOTE: Maximum system flow rate is 5.7 L/m for all VektorFlo® metric valves unless otherwise noted. Excess flow voids warranty.
