Valve Type: 24 VDC 2-Position 3-Port Normally Closed

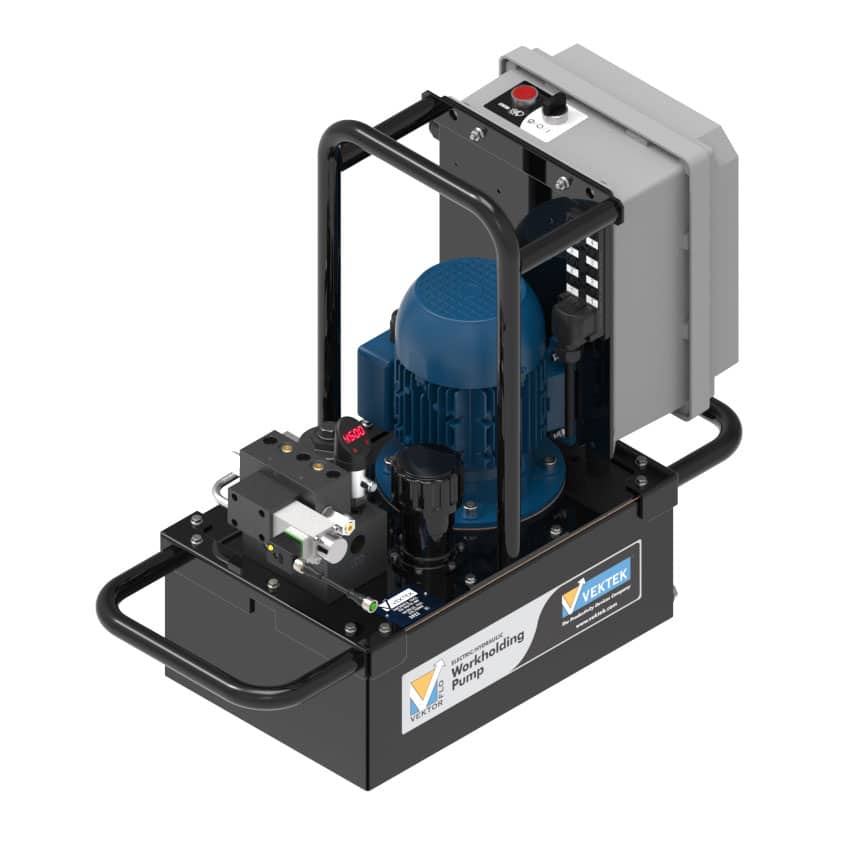

2HP Low Pressure Advanced Workholding Pump:  PALLET DECOUPLER ONE HOSE S/A

• Single acting live systems.
• Use with manual pallet decouplers, tombstone top plates, and self-closing (single hose) decouplers.
• Operator interface is by remote pendant or can be wired into a machine controller.

NOTE:  All decoupled valves are de-energized when not in use to avoid heat build-up between cycles.

Efficient ON DEMAND pump with NO DUTY CYCLE

Vektek’s NEW LOW PRESSURE Advanced Workholding Pump is an efficient ON DEMAND pump with NO DUTY CYCLE limitations due to it’s Variable Frequency Drive (VFD). Once pressure is met, the pump turns off while holding pressure, if a pressure decay occurs the on-demand pump will re-start and build pressure to the correct pressure setting.

This gear pump’s flow rate pushes 250 cu. in. of oil up to 1500 PSI all in a single stage. For your Low Pressure Applications you can count on Vektek’s NEW Low Pressure Advanced Workholding Pumps.

Pump Add-on Options

• Valve Wiring Cable (one for each valve).
• Pump/Machine Tool Interface Cable (all pump control in one cable).
• Upgrade to fluid level temperature switch.
• Upgrade to Electronic clog indicator return line filter.
• Mechanical pressure switch (no power required).
• Electronic pressure switch (24V power required).
• Manual or solenoid directional control valve functions.
• Check Valve (for multiple manual valves in stack).
• Pressure reducing valves for each circuit.
• Accumulator (for small or low pressure systems).
• Extra pendant switches (1 supplied with each different solenoid valve on pump for setup and testing).
• Return Line Water Absorbing Filter with models available for use without cart and with cart.
