Manual Shutoff Valve Decouplers
Palletized Fixture Accessories

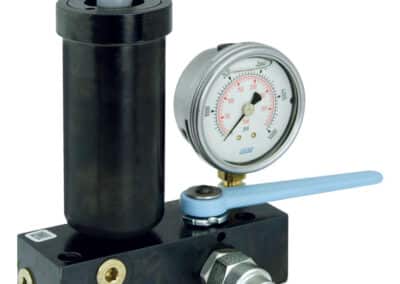

Manual Shutoff Valve Decoupler for Single Acting Systems
- This Decoupler is a convenient, self-contained package that includes a quick connect coupling, manual shutoff valve with handle, accumulator (choose from horizontal or vertical arrangement), filter screen, pressure gauge and over-pressure relief valve.
- Models available for circuits operating at 2,000-5,000 psi and 1,000-3,500 psi with standard and small accumulators.
- Includes auxiliary ports that can be used for double acting pallet circuits or compressed air.
Decoupler with External Accumulator: For operation with Female Quick Connect Coupling Model No. 30-7827-66.
NOTE: This Manual Shutoff Valve Decoupler must be used with a suitable pump which includes a 2-Position/3-Port, directional control valve for operation of one single acting circuit. Contact Vektek for considerations in the use of this Manual Shutoff Decoupler to control double acting circuits.
* Depending on where the Decoupler is mounted, a spacer (not furnished) may be needed to offset the overhang of the accumulator
| Model No. | Pressure Range (psi.) | Accumulator Capacity |
|---|---|---|
| 56-0001-01 | 2000 - 5000 | 3.2 cu. in. |
| 56-0001-02 | 1000 - 3500 | 3.6 cu. in. |
| 56-0001-03 | 2000 - 5000 | 1.0 cu. in. |

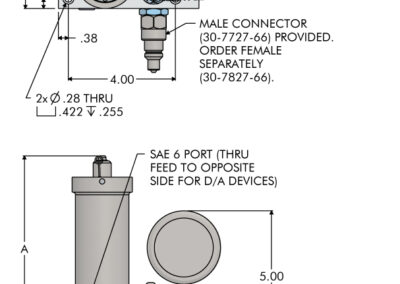

| Model No. | A |
|---|---|
| 56-0001-01 | 6.91 |
| 56-0001-02 | 6.91 |
| 56-0001-03 | 5.72 |
