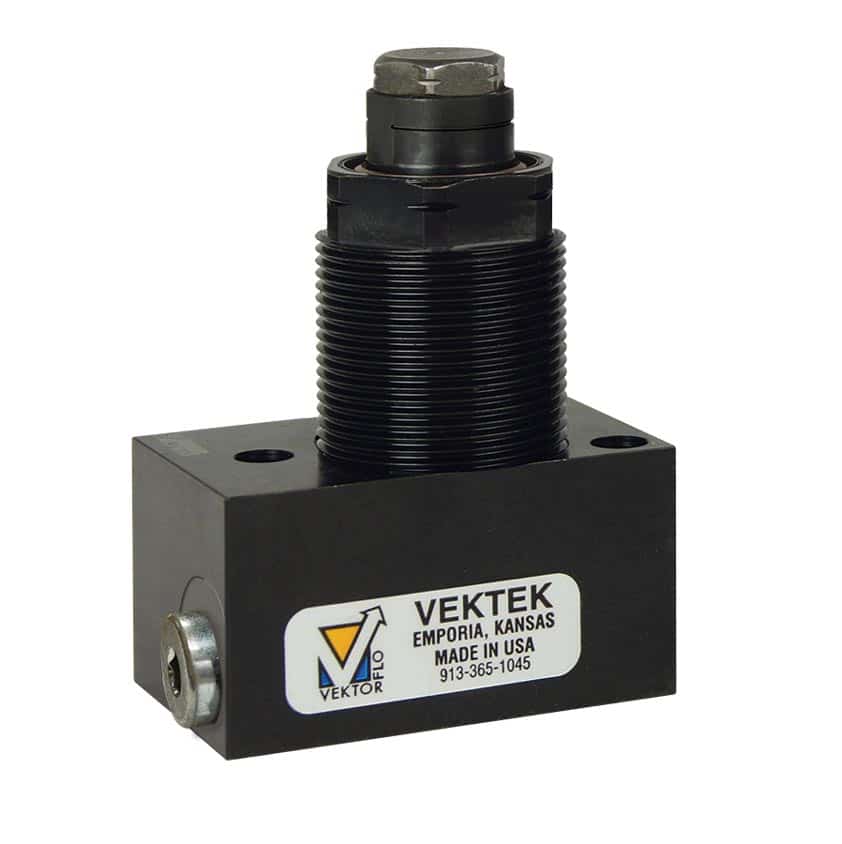

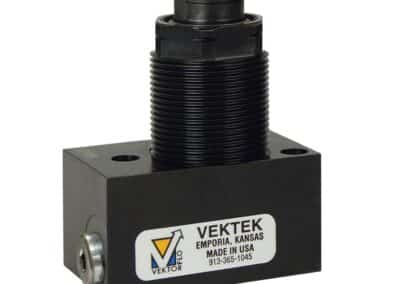

TuffGrip™ High Capacity, Fluid Advance Work Supports, 3-Bolt Base
Work Supports
Replace older models with higher capacity cartridges or complete with bases!

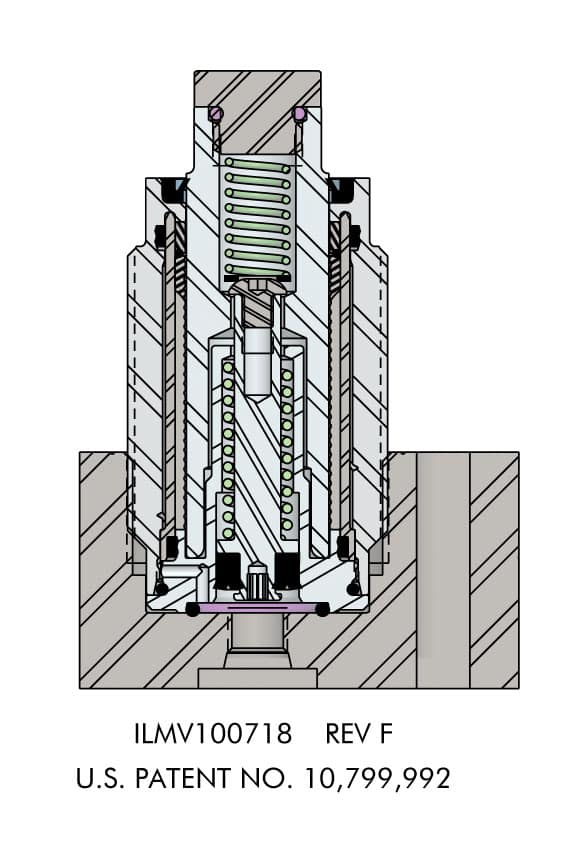

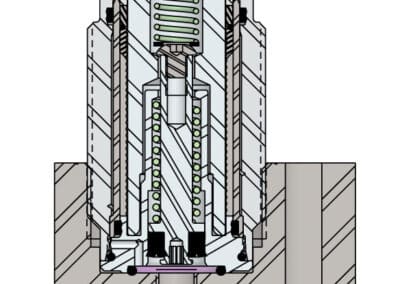

Normally retracted plungers do not interfere with part loading. Advance them with hydraulic pressure, exerting only spring force to bring the plunger into contact with your part. Hydraulic pressure then automatically sequences, “freezing” the plunger properly against the part.
- Available in 8.9 kN or 17.8 kN capacity.
- Order with base or cartridge only.
- Ventless configuration and built in wipers protect the plunger movement from chips and debris.
- Up to 3X capacity of competitor’s version.
- Uses Vektek’s BHC technology to guard against corrosion.
- O-Ring face seal design makes machining cavities easier.
Standard G Series porting and alternate O-Ring manifold face seal is located in the base of the support for bolt down installation. The base can be removed for direct cartridge mounting.
Manifold Mounting Instructions
For proper sealing, all mating surfaces should be flat within 0.08 mm, with a maximum surface roughness of 1.6 μm. Ra. Hydraulic oil feed holes for manifold mounting Ø 2.3 to Ø 5mm.
For mounting dimensions please see Legacy Fluid Advance Work Support Section.
* Support capacities are listed at 350 bar (35 MPa) maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart
** Restrict flow rate to a maximum of 2.13 l/min.
*** For cartridge mount models, see cavity dimensions drawings in this catalog section.
**** For complete dimensions, see fluid advance work support section (B) in the Precision Hydraulic Clamping Metric catalog.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 0.7 bar (0.07 MPa) Returning back-pressure greater than 0.7 bar (0.07 MPa) may cause slow or failed retraction.
| Model No. | Direct Replacement for Older Model | Support Capacity (kN) | Contact Force (N) | Stroke (mm) | Base Dimension (mm) | Retracted Height (mm) | Oil Capacity (cm³) |
|---|---|---|---|---|---|---|---|
| 41-0806-10 | 41-0070-04 | 8.9 High Capacity | 4.4 - 26.7 | 6.5 | 23 X 33.5 X 44.5 | 62.5 | 0.8 |
| 41-0806-16 | 41-0070-14 | 8.9 High Capacity Long Stroke | 4.4 - 26.7 | 12.5 | 23 X 33.5 X 44.5 | 75.2 | 1.2 |
| 41-0808-10 | 41-0070-03 | 17.8 High Capacity | 13.5 - 44.5 | 6.5 | 31.5 X 41.5 X 58.5 | 82.6 | 1.9 |
| 41-0808-16 | 41-0070-13 | 17.8 High Capacity Long Stroke | 13.5 - 44.5 | 12.5 | 31.5 X 41.5 X 58.5 | 95.3 | 2.5 |
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0806-10 | M26 X 1.5 | 62.5 | 6.5 | 28.5 | 23 | 5.5 | 23 | 16 | 3.5 | 33.5 | 16.5 | 24.4 | 12.2 | 44.5 | 17.5 | 31 | 13 | 5.6 | 13 | M8 X 1.25 X 5 | G 1/8 | 9 | 8.5 | 7 | 9.7 | 17.5 |
| 41-0806-16 | M26 X 1.5 | 75 | 12.5 | 41 | 23 | 5.5 | 23 | 16 | 3.5 | 33.5 | 16.5 | 24.4 | 12.2 | 44.5 | 17.5 | 31 | 13 | 5.6 | 13 | M10 X 1.5 X 5 | G 1/8 | 9 | 8.5 | 7 | 9.7 | 17.5 |
| 41-0808-10 | M35 X 1.5 | 82.5 | 6.5 | 34 | 31.5 | 9 | 30 | 20.5 | 5 | 41.5 | 21 | 30.2 | 15.1 | 58.5 | 24 | 43.1 | 18.3 | 7.1 | 19 | M12 X 1.75 X 6.5 | G 1/8 | 10.5 | 10.5 | N/A | N/A | N/A |
| 41-0808-16 | M35 X 1.5 | 95.5 | 12.5 | 47 | 31.5 | 9 | 30 | 20.5 | 5 | 41.5 | 21 | 30.2 | 15.1 | 58.5 | 24 | 43.1 | 18.3 | 7.1 | 19 | M12 X 1.75 X 6.5 | G 1/8 | 10.5 | 10.5 | N/A | N/A | N/A |
| Model No. | Support Capacity (kN) | O-Ring Part Number | O-Ring Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| 41-0806-10 | 8.9 High Capacity | 39-0510-59 | 6 X 1.5 mm | 9.75 | 5.0 | 6.05 | 1.19 | M8 X 1.25 - 6G |
| 41-0806-16 | 8.9 High Capacity Long Stroke | 39-0000-69 | 7.65 x 1.63 mm | 11.43 | 5.0 | 7.67 | 1.19 | M10 X 1.5 - 6G |
| 41-0808-10 | 17.8 High Capacity | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 1.75 - 6G |
| 41-0808-16 | 17.8 High Capacity Long Stroke | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 1.75 - 6G |
