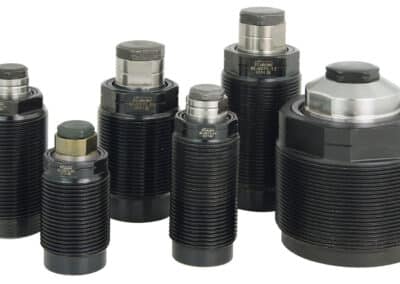

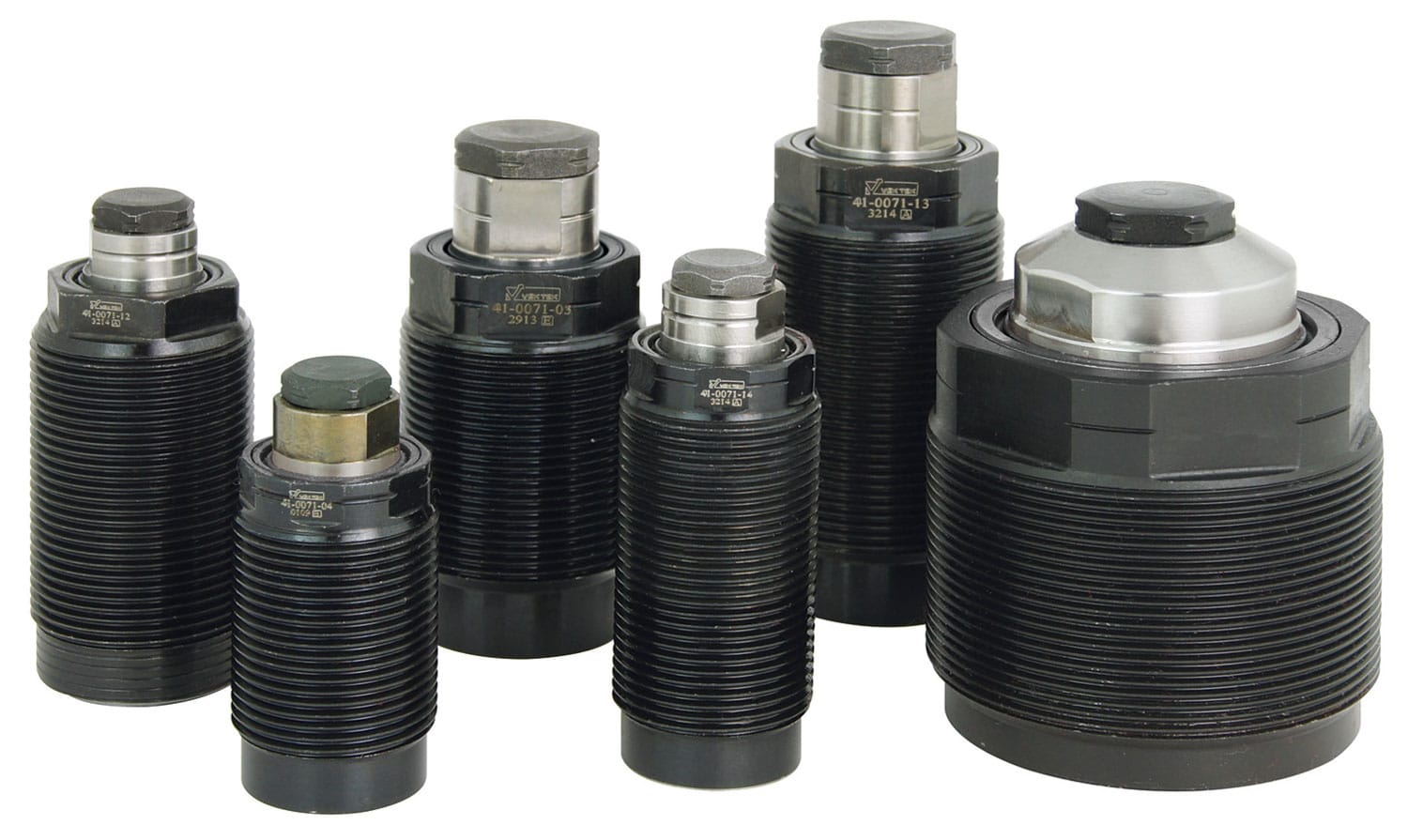

Fluid Advance, Cartridge
Work Supports

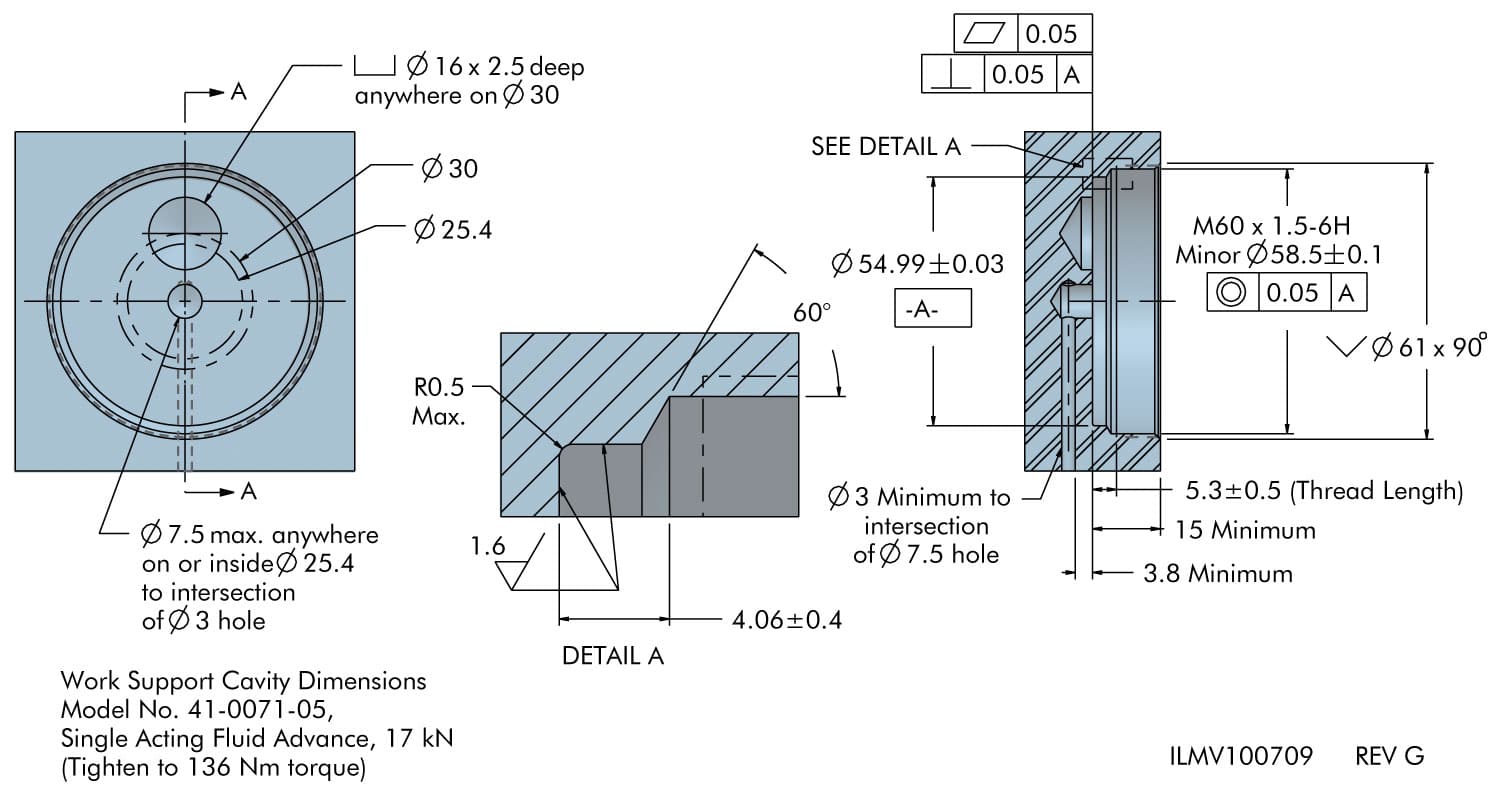

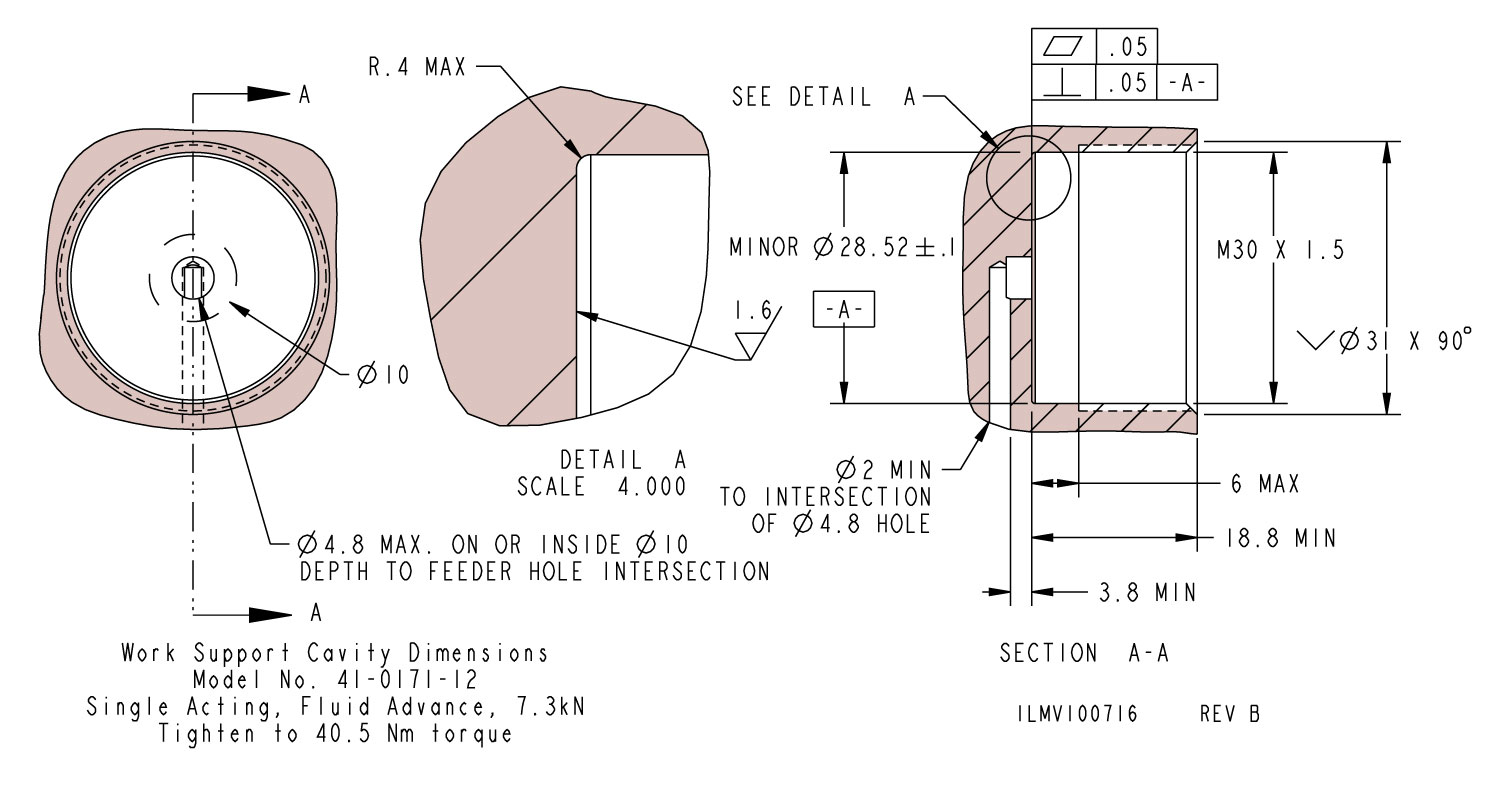

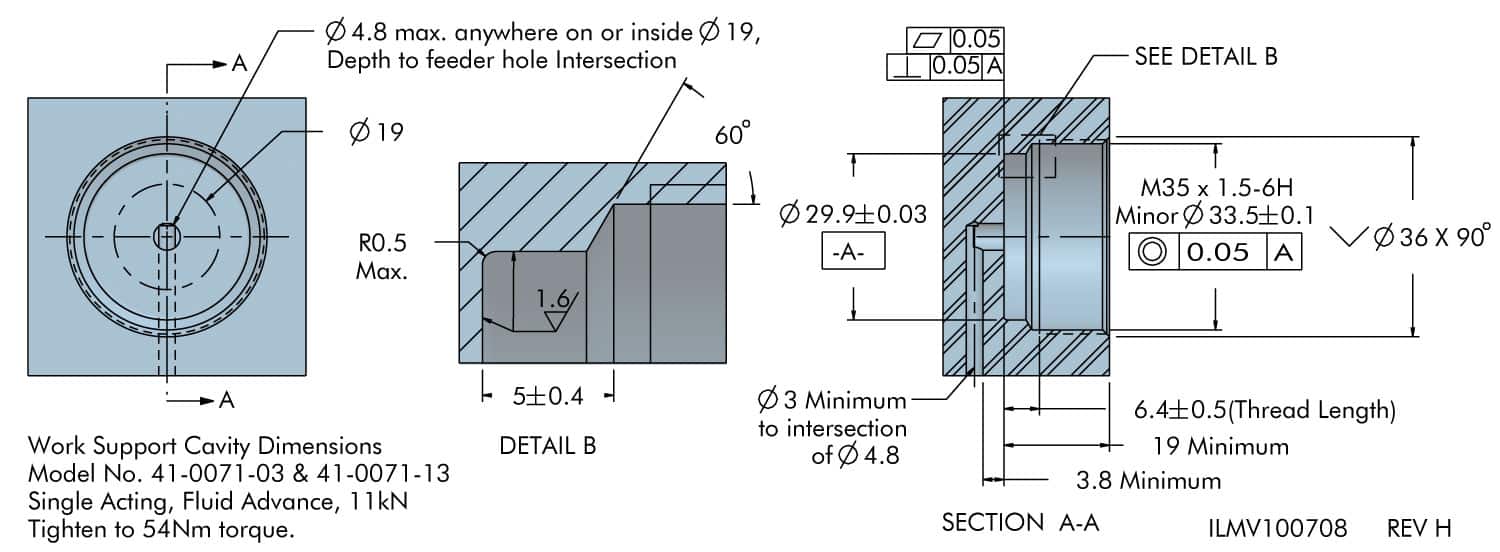

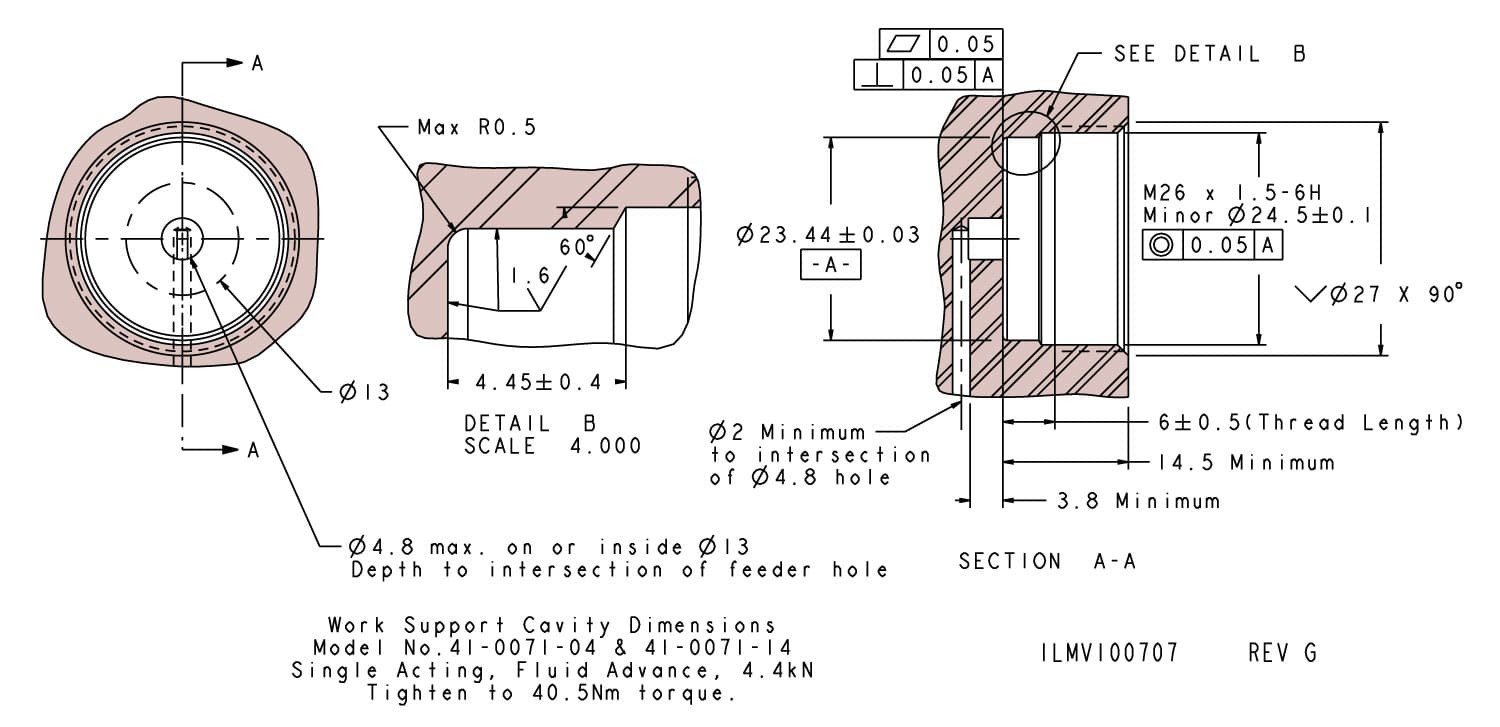

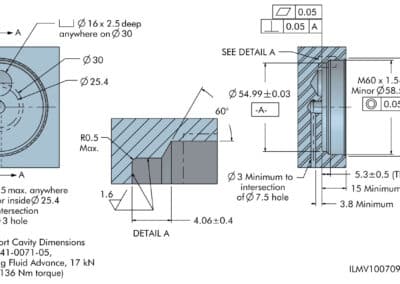

- Confirm capacity of item selected.
- Note the sealing surface finish requirements.
- Minimum depth specification represents the nominal depth of the standard Vektek base dimension.

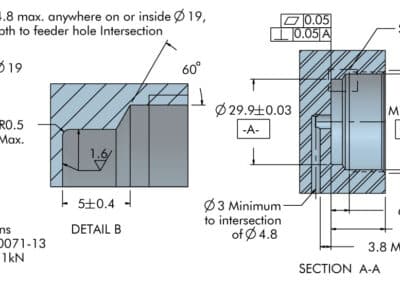

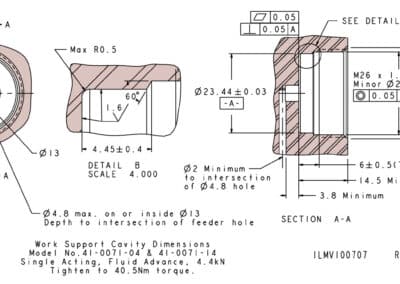

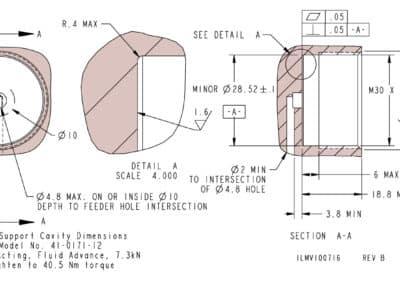

- Confirm cavity drawing is appropriate for the model number used.
- Note specified thread depth when cutting threads.
- When using a bottoming tap tool modifications may be required.
- When hand tapping threads, perpendicularity is essential.
- Fluid passage is located in the center.
| Model No. | Support Capacity (kN) | Mounting Style | Contact Force (N) | Stroke (mm) | Retracted Height (mm) | Oil Capacity (cm³) |
|---|---|---|---|---|---|---|
| 41-0071-03 | 11 | Cartridge - Cavity | 13.5 - 44.5 | 6.5 | 72 | 2 |
| 41-0071-04 | 4.4 | Cartridge - Cavity | 4.4 - 26.7 | 6.5 | 53.5 | 1.3 |
| 41-0071-05 | 17 | Cartridge - Cavity | 26.5 - 53.5 | 12.5 | 72.5 | 9.7 |
| 41-0071-13 | 13.4 | Cartridge - Cavity | 13.5 - 44.5 | 12.5 | 84.5 | 2.3 |
| 41-0071-14 | 6.2 | Cartridge - Cavity | 4.4 - 26.7 | 12.5 | 66.5 | 1.5 |
| 41-0171-12 | 7.3 | Cartridge - Cavity | 4.4 - 26.7 | 12.5 | 67 | 1.5 |

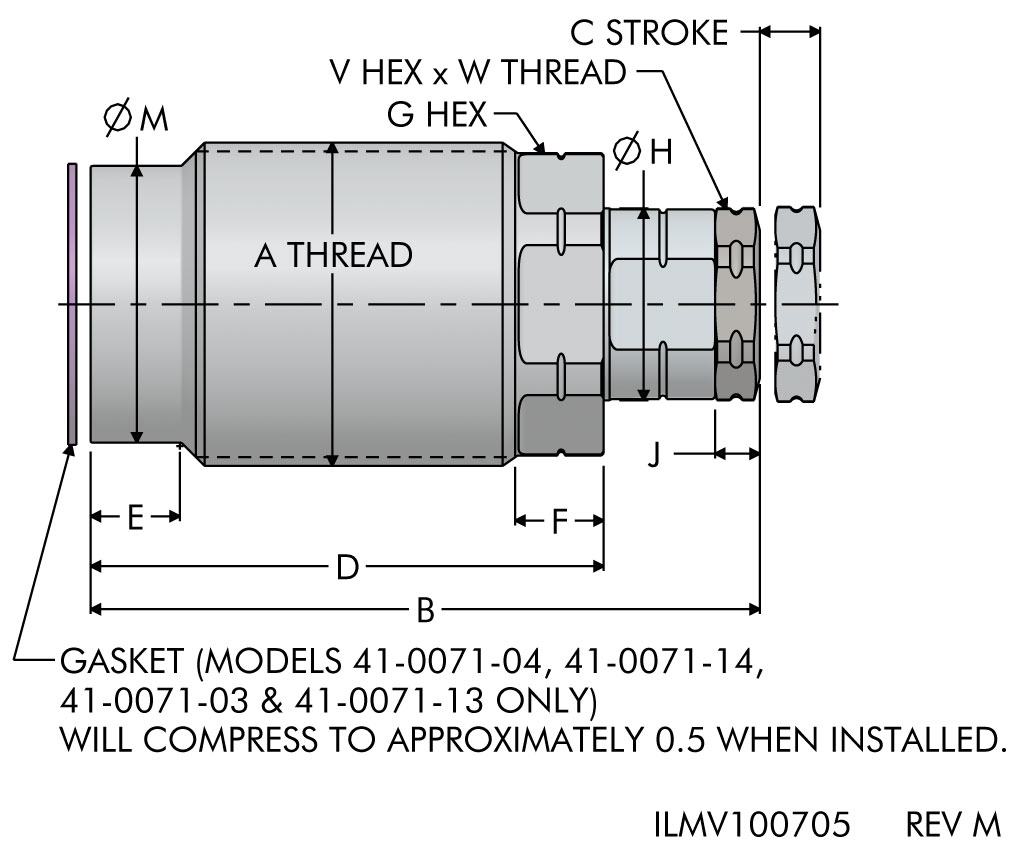

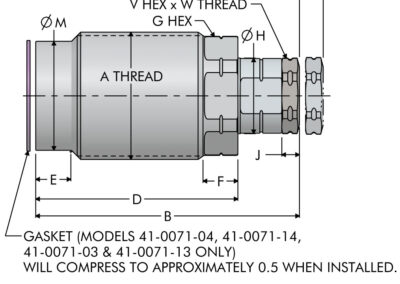

| Model No. | A | B | C | D | E | F | G | H | J | M | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0071-03 | M35 X 1.5 | 72 | 6.5 | 55 | 9.5 | 9 | 30 | 20.5 | 5 | 29.7 | 19 | M12 X 1.75 X 6.5 |
| 41-0071-04 | M26 X 1.5 | 53.5 | 6.5 | 42.5 | 7 | 5.5 | 23 | 16 | 3.5 | 23.3 | 13 | M8 X 1.25 X 5 |
| 41-0071-05 | M60 X 1.5 | 72.5 | 12.5 | 55 | 6.5 | 12.5 | 54 | 38 | 5 | 54.8 | 19 | M12 X 1.75 X 6.5 |
| 41-0071-13 | M35 X 1.5 | 84.5 | 12.5 | 68 | 9.5 | 9 | 30 | 20.5 | 5 | 29.7 | 19 | M12 X 1.75 X 6.5 |
| 41-0071-14 | M26 X 1.5 | 66.5 | 12.5 | 55.5 | 7 | 5.5 | 23 | 16 | 3.5 | 23.3 | 13 | M10 X 1.5 X 5 |
| 41-0171-12 | M30 X 1.5 | 67 | 12.5 | 56.5 | 9 | 5.5 | 24 | 16 | 3.5 | 28.3 | 13 | M10 X 1.5 X 5 |
| Model No. | Support Capacity (kN) | O-Ring Part Number | O-Ring Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| 41-0071-03 | 11 | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 175 - 6G |
| 41-0071-04 | 4.4 | 39-0510-59 | 6 X 1.5 mm | 9.75 | 5.0 | 6.05 | 1.19 | M8 X 1.25 - 6G |
| 41-0071-05 | 17 | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 175 - 6G |
| 41-0071-13 | 13.4 | 39-0020-09 | 9.25 X 1.78 mm | 14.1 | 6.35 | 9.91 | 1.78 | M12 X 175 - 6G |
| 41-0071-14 | 6.2 | 39-0000-69 | 7.65 X 1.63 mm | 11.43 | 5.0 | 7.67 | 1.19 | M10 X 1.5 - 6G |
| 41-0171-12 | 7.3 | 39-0000-69 | 7.65 X 1.63 mm | 11.43 | 5.0 | 7.67 | 1.19 | M10 X 1.5 - 6G |
