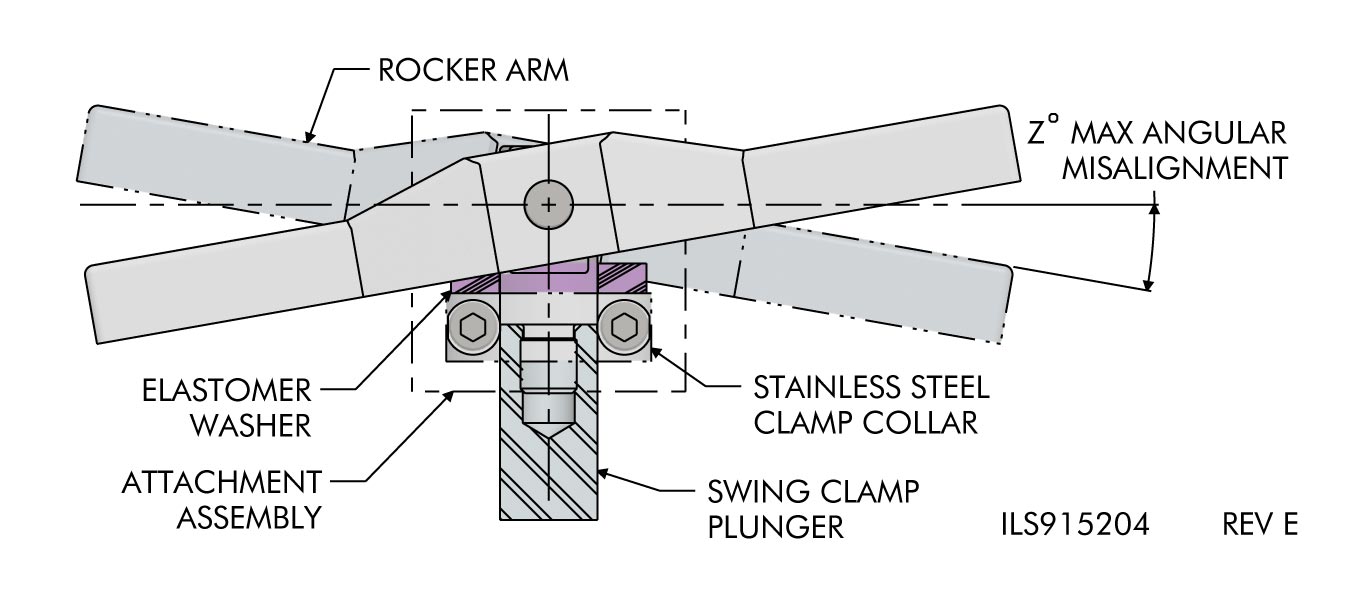

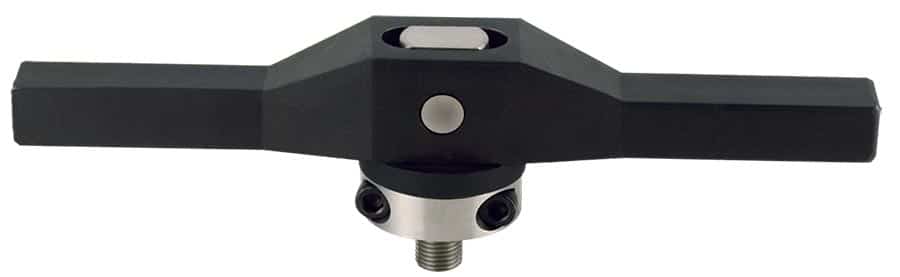

Swing Clamp Arms, Double Ended Rocker Assembly
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.

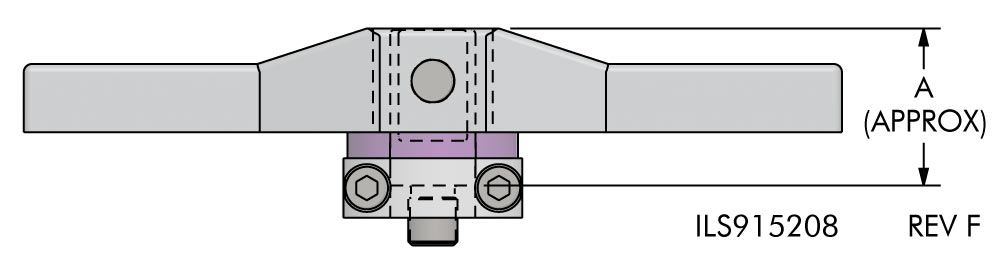

| Model No. | Clamp Capacity (lb.) | A | Z |
|---|---|---|---|
| 91-5205-10 | 450 | 0.81 | 10 |
| 91-5209-10 | 1100 | 1.14 | 6 |
| 91-5213-10 | 2600 | 1.59 | 6 |
| 91-5218-10 | 5000 | 2.31 | 5 |
