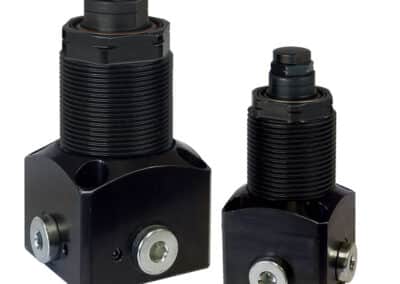

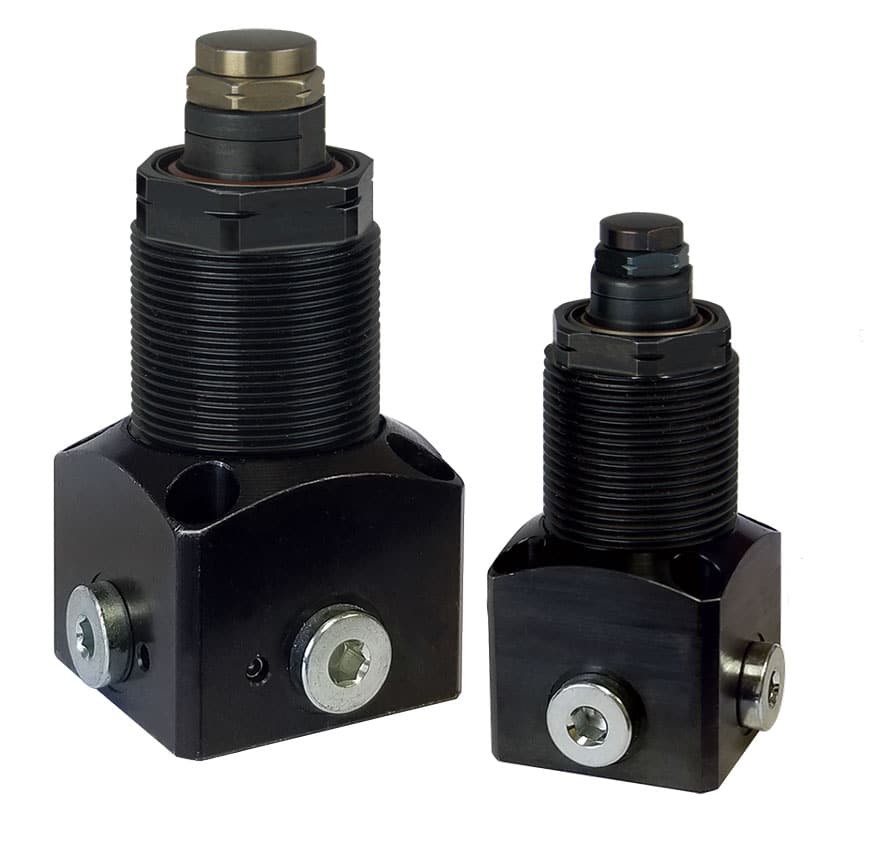

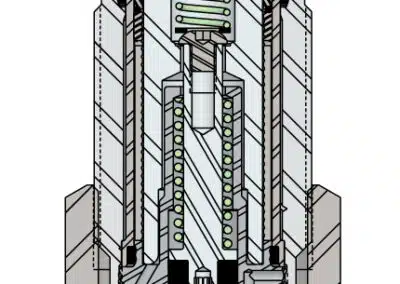

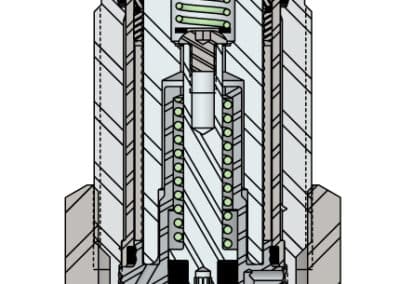

Part Present Sensing, High Capacity, Fluid Advance, Base
Confirm part is present and contacted even on as-cast surfaces!
Now with Part Present Sensing built in!

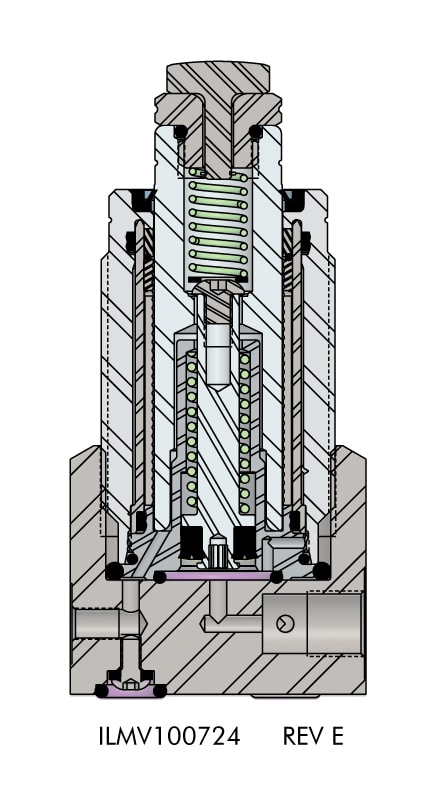

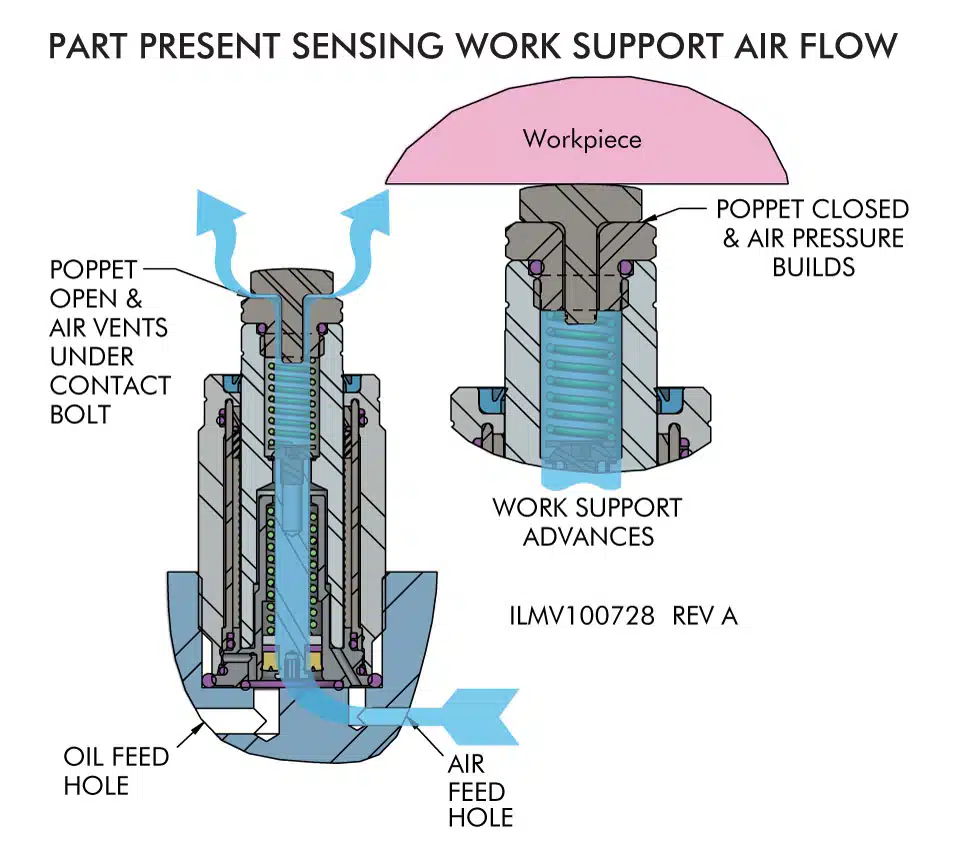

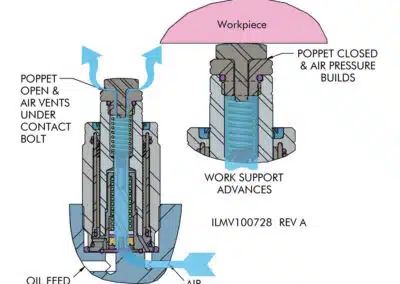

Plungers stay retracted during part loading while air flow travels through the work support. Hydraulic pressure advances the plunger exerting only spring force as it makes contact with the part. This closes the integral air valve to indicate part is present and contacted. Hydraulic pressure then automatically sequences, freezing the plunger.
- Available in 8.9 kN or 17.8 kN capacity.
- Order with four bolt base or cartridge only.
- Once support is locked, air sensing positively confirms both contact and part present.

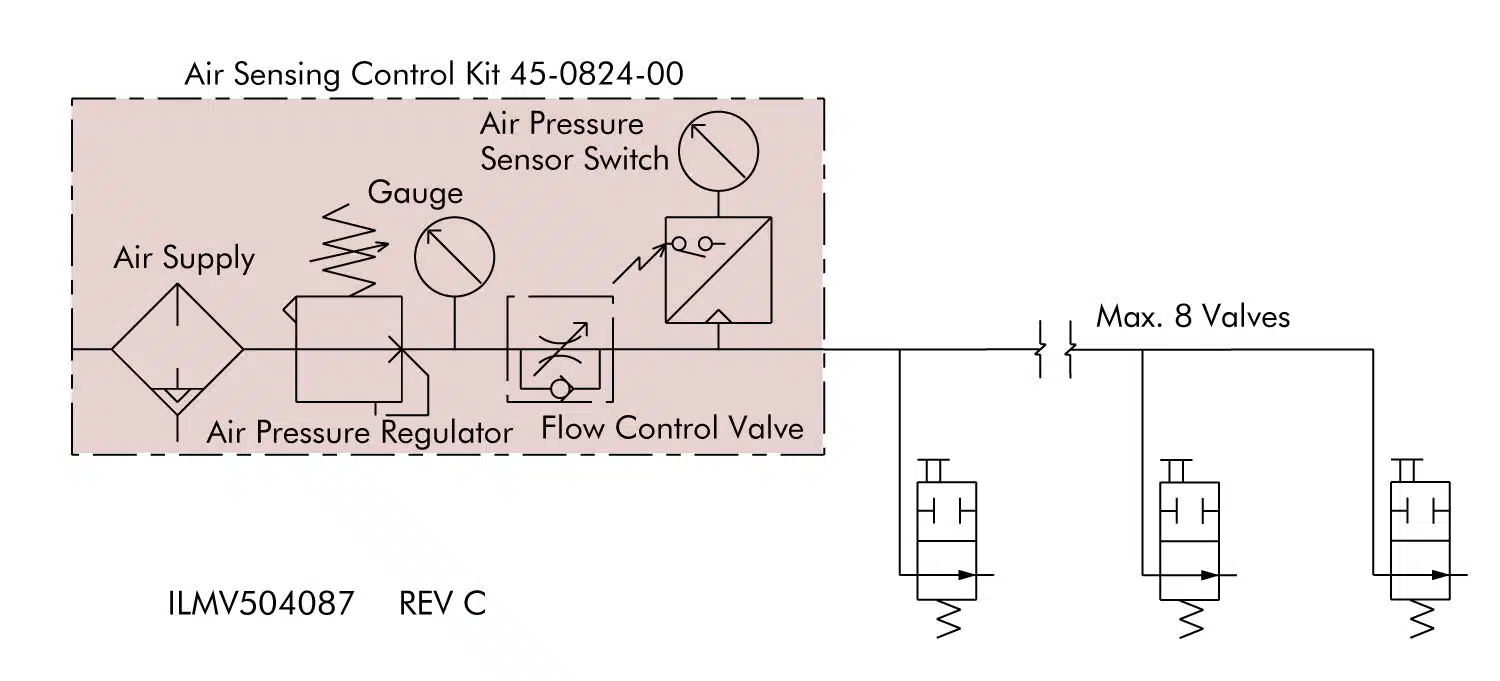

- Use Vektek’s Air Sensing Control Kit 45-0824-00 for easy setup.
- Four bolt base is compatible with Vektek In The Port Flow Control and In The Port Sequence Valves.
- Uses Vektek’s BHC technology to guard against corrosion.
- O-Ring face seal design makes machining cavities easier.
- Max air operating pressure is 1 bar.
Standard G-Series porting and alternate O-Ring manifold face seal is located in the base of the support for bolt down installation. The base can be removed for direct cartridge mounting.

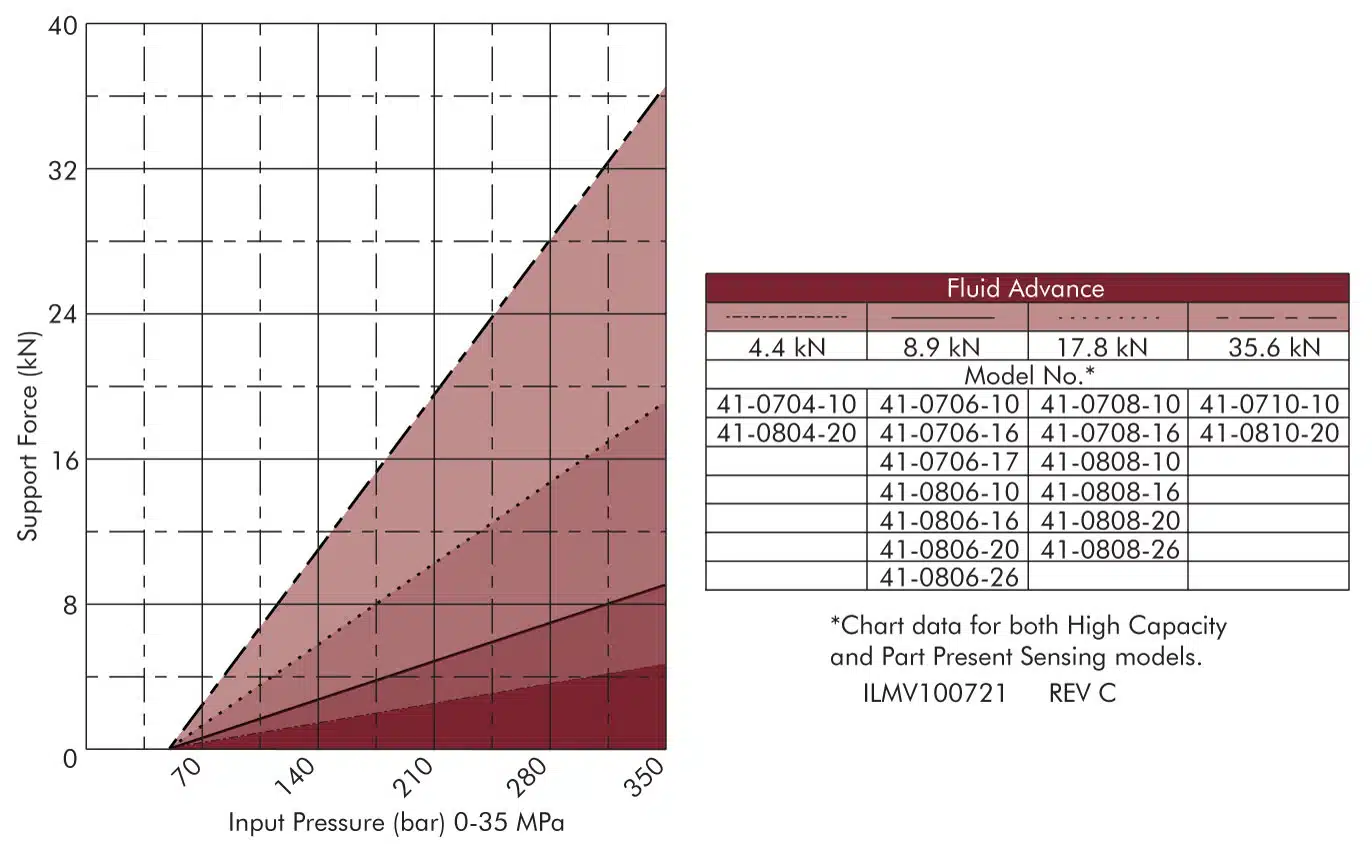

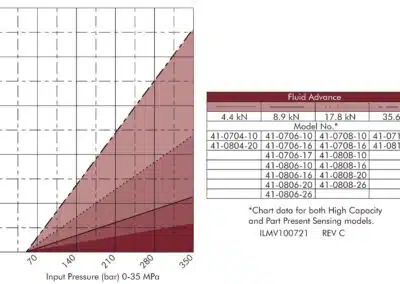

* Support capacities are listed at 350 Bar maximum pressure. Support capacities for other pressures are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart.
** Restrict flow rate to a maximum of 2.13 l/min.
**** In-Port Valves require the use of manifold mount ports.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 0.7 bar (0.07 MPa) Returning back-pressure greater than 0.7 bar (0.07 MPa) may cause slow or failed retraction.
For proper sealing, all mating surfaces should be flat within 0.08 mm, with a maximum surface roughness of 1.6 μm. Ra. Hydraulic oil feed holes for manifold mounting Ø 2.3 to Ø 5mm.
* Retaining ring, adapter, and o-ring may be ordered as needed.

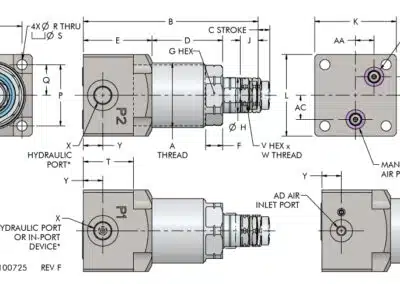

| Model No. | Support Capacity (kN) | Contact Force (N) | Stroke (mm) | Base Dimension (mm) | Retracted Height (mm) | Oil Capacity (cm³) | Port X For Optional In-Port Valves |
|---|---|---|---|---|---|---|---|
| 41-0806-20-PS | 8.9 | 4.4 - 26.7 | 6.5 | 37 X 36 X 36 | 74.8 | 0.8 | G 1/8 X 15.16 |
| 41-0806-26-PS | 8.9 | 4.4 - 26.7 | 12.5 | 37 X 36 X 36 | 87.5 | 1.1 | G1/8 X 15.16 |
| 41-0808-20-PS | 17.8 | 13.5 - 44.5 | 6.5 | 37 X 44 X 44 | 94.2 | 3.3 | G 1/8 X 15.16 |
| 41-0808-26-PS | 17.8 | 13.5 - 44.5 | 12.5 | 37 X 44 X 44 | 106.8 | 3.7 | G 1/8 X 15.16 |
| 41-0810-20-PS | 35.6 | 18-57.8 | 15.9 | 37 X 55 X 55 | 125.7 | 9.3 | G 1/8 X 15.16 |

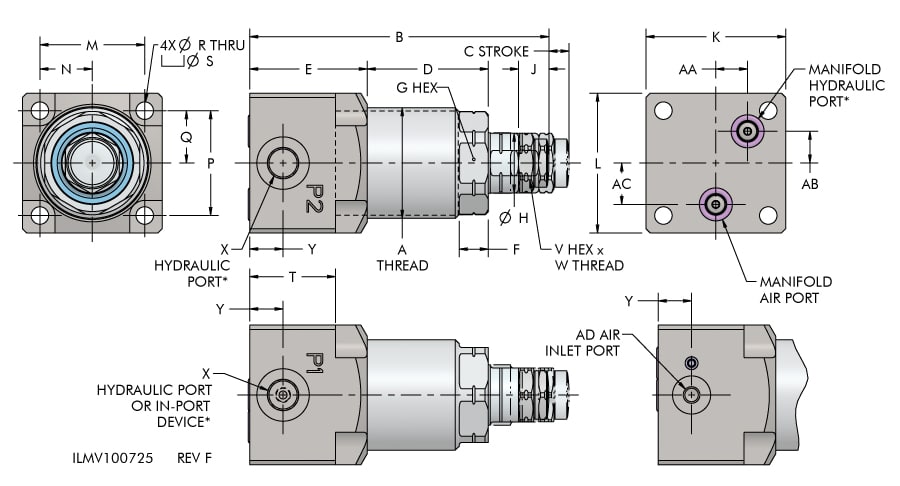

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | AA | AB | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0806-20-PS | M26 X 1.5 | 74.8 | 6.5 | 23.7 | 37 | 5.3 | 23 | 14.3 | 7.1 | 36 | 36 | 27 | 13.5 | 27 | 13.5 | 4.5 | 8 | 28 | 11 | M8 X 1.25 X 5 | G 1/8 | 10.5 | 7 | 7 | 9 | M5 X 0.8 |
| 41-0806-26-PS | M26 X 1.5 | 87.5 | 12.5 | 35.4 | 37 | 5.3 | 23 | 14.3 | 7.1 | 36 | 36 | 27 | 13.5 | 27 | 13.5 | 4.5 | 8 | 28 | 13 | M10 X 1.50 X 5 | G 1/8 | 10.5 | 7 | 7 | 9 | M5 X 0.8 |
| 41-0808-20-PS | M35 X 1.5 | 94.2 | 6.5 | 38.1 | 37 | 9.3 | 30 | 19 | 9.5 | 44 | 44 | 33 | 16.5 | 33 | 16.5 | 5.5 | 9.5 | 27 | 17 | M12 X 1.75 X 6.5 | G 1/8 | 10.5 | 10 | 10 | 13 | M5 X 0.8 |
| 41-0808-26-PS | M35 X 1.5 | 106.8 | 12.5 | 47.9 | 37 | 9.3 | 30 | 19 | 9.5 | 44 | 44 | 33 | 16.5 | 33 | 16.5 | 5.5 | 9.5 | 27 | 17 | M12 X 1.75 X 6.5 | G 1/8 | 10.5 | 10 | 10 | 13 | M5 X 0.8 |
| 41-0810-20-PS | M45 X 1.5 | 125.7 | 15.9 | 61.7 | 37 | 10.2 | 38 | 25.2 | 15.1 | 55 | 55 | 44 | 22 | 44 | 22 | 5.5 | 9.5 | 27 | 21 | M15 X 1.0 X 8 | G 1/8 | 10.5 | 10 | 10 | 16 | M5 X 0.8 |

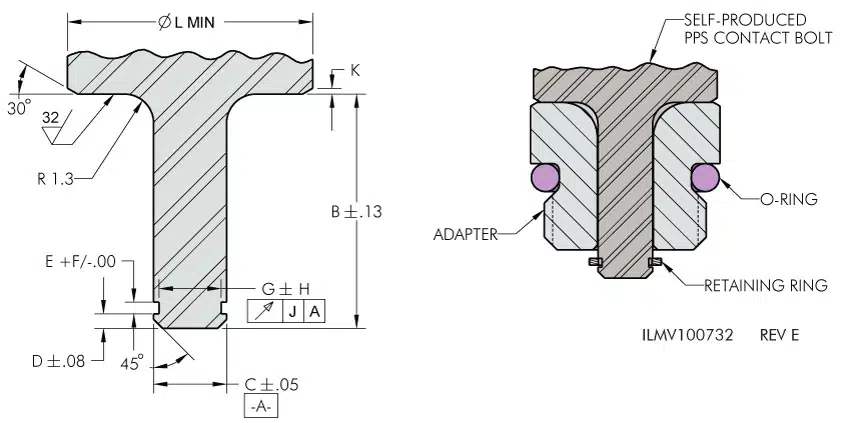

| Model No. | Retaining Ring No. | Adapter No. | O-Ring Part Number | O-Ring Size | Max Weight | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-0806-20-PS | 23-0100-07 | 41-0606-01 | 39-0510-59 | 6 X 1.5 mm | 113 g | 10.2 | 3.2 | 0.64 | 0.51 | 0.05 | 2.7 | 0.038 | 0.038 | 0.25 | 10.3 |
| 41-0806-26-PS | 23-0100-07 | 41-0606-01 | 39-0510-59 | 6 X 1.5 mm | 113 g | 10.2 | 3.2 | 0.64 | 0.51 | 0.05 | 2.7 | 0.038 | 0.038 | 0.25 | 10.3 |
| 41-0808-20-PS | 23-0100-08 | 41-0608-01 | 39-0020-69 | 9.2 X 1.8 mm | 122 g | 12.6 | 4.0 | 0.64 | 0.51 | 0.05 | 3.4 | 0.038 | 0.038 | 0.38 | 15.2 |
| 41-0808-26-PS | 23-0100-08 | 41-0608-01 | 39-0020-69 | 9.2 X 1.8 mm | 122 g | 12.6 | 4.0 | 0.64 | 0.51 | 0.05 | 3.4 | 0.038 | 0.038 | 0.38 | 15.2 |
| 41-0810-20-PS | 23-0100-06 | 41-0108-40 | 39-0511-76 | 12 x 2 mm | 204 g | 18.3 | 6.35 | 0.76 | 0.74 | 0.08 | 5.6 | 0.051 | 0.051 | 0.51 | 17.4 |
