Combination Block Cylinders
Metric Cylinders
Double Acting with Bottom Manifold and Standard Side Porting

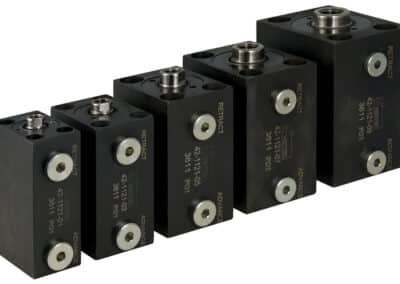

- Combination block cylinders are available in 5 sizes with 2 stroke lengths each.
- Flush top design makes this cylinder ideal for use in close push or pull applications.
- Push or pull from the fixture surface using manifold ports.
- The G 1/4 side ports provide easy access to standard plumbing alternate ports.
- End manifold provides an alternative to other side manifold block cylinders.
- Stock end attachments available or make your own.
* Cylinder capacities are listed at 350 bar (35 MPa) maximum operating pressure. The output force is adjustable by varying the hydraulic system pressure. To determine approximate output force for your application, multiply the Piston Area times Your System Operating Pressure. Actual force may vary slightly due to friction loss, seal and wiper drag.

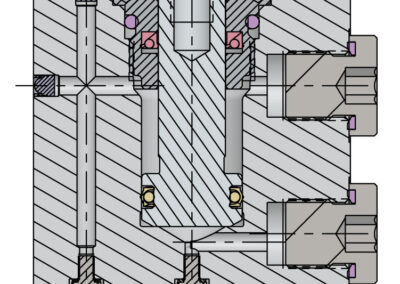

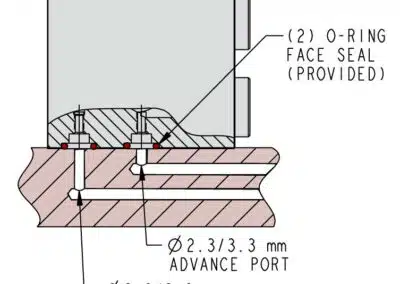

For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Clamp Capacity (kN) Extend | Clamp Capacity (kN) Retract | Stroke (mm) | Body Size (mm) | Minimum Length (mm) | Piston Area (cm²) Extend | Piston Area (cm²) Retract | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) |
|---|---|---|---|---|---|---|---|---|---|
| 42-1121-00 | 10 | 5.5 | 16 | 35 X 60 | 68 | 2.9 | 1.6 | 4.6 | 2.5 |
| 42-1121-01 | 10 | 5.5 | 50 | 35 X 60 | 102 | 2.9 | 1.6 | 14.3 | 7.9 |
| 42-1121-02 | 17.7 | 10.8 | 20 | 45 X 65 | 71 | 5.1 | 3.1 | 10.1 | 6.2 |
| 42-1121-03 | 17.7 | 10.8 | 50 | 45 X 65 | 101 | 5.1 | 3.1 | 25.3 | 15.4 |
| 42-1121-04 | 27.7 | 17.7 | 25 | 55 X 75 | 85 | 7.9 | 5.1 | 19.8 | 12.7 |
| 42-1121-05 | 27.7 | 17.7 | 50 | 55 X 75 | 110 | 7.9 | 5.1 | 39.6 | 25.3 |
| 42-1121-06 | 46.8 | 29 | 25 | 63 X 85 | 89 | 13.4 | 8.3 | 33.5 | 20.8 |
| 42-1121-07 | 46.8 | 29 | 50 | 63 X 85 | 114 | 13.4 | 8.3 | 66.9 | 41.6 |
| 42-1121-08 | 70.9 | 43.2 | 25 | 75 X 100 | 100 | 20.3 | 12.4 | 50.7 | 30.9 |
| 42-1121-09 | 70.9 | 43.2 | 50 | 75 X 100 | 125 | 20.3 | 12.4 | 101.3 | 61.8 |

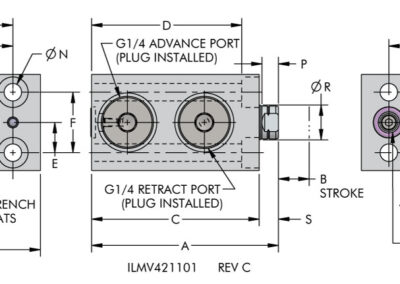

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42-1121-00 | 68 | 16 | 61 | 54.6 | 11 | 22 | 20 | 40 | 17.5 | 35 | 30 | 60 | 6.3 | 6 | 10 | 12.7 | 7 | M8 X 1.25 X 15 |
| 42-1121-01 | 102 | 50 | 95 | 88.6 | 11 | 22 | 20 | 40 | 17.5 | 35 | 30 | 60 | 6.3 | 6 | 10 | 12.7 | 7 | M8 X 1.25 X 15 |
| 42-1121-02 | 71 | 20 | 64 | 55.5 | 15 | 30 | 25 | 50 | 22.5 | 45 | 32.5 | 65 | 8.5 | 6 | 13 | 15.8 | 7 | M10 X 1.5 X 15 |
| 42-1121-03 | 101 | 50 | 94 | 85.5 | 15 | 30 | 25 | 50 | 22.5 | 45 | 32.5 | 65 | 8.5 | 6 | 13 | 15.8 | 7 | M10 X 1.5 X 15 |
| 42-1121-04 | 85 | 25 | 75 | 64.5 | 17.5 | 35 | 27.5 | 55 | 27.5 | 55 | 37.5 | 75 | 10.5 | 9 | 16 | 19 | 10 | M12 X 1.75 X 15 |
| 42-1121-05 | 110 | 50 | 100 | 89.5 | 17.5 | 35 | 27.5 | 55 | 27.5 | 55 | 37.5 | 75 | 10.5 | 9 | 16 | 19 | 10 | M12 X 1.75 X 15 |
| 42-1121-06 | 89 | 25 | 79 | 68.5 | 20 | 40 | 31.5 | 63 | 31.5 | 63 | 42.5 | 85 | 10.5 | 9 | 22 | 25.4 | 10 | M16 X 2 X 25 |
| 42-1121-07 | 114 | 50 | 104 | 93.5 | 20 | 40 | 31.5 | 63 | 31.5 | 63 | 42.5 | 85 | 10.5 | 9 | 22 | 25.4 | 10 | M16 X 2 X 25 |
| 42-1121-08 | 100 | 25 | 90 | 77 | 22.5 | 45 | 38 | 76 | 37.5 | 75 | 50 | 100 | 13 | 9 | 27 | 31.7 | 10 | M20 X 2.5 X 30 |
| 42-1121-09 | 125 | 50 | 115 | 102 | 22.5 | 45 | 38 | 76 | 37.5 | 75 | 50 | 100 | 13 | 9 | 27 | 31.7 | 10 | M20 X 2.5 X 30 |
