Swing Clamp and Link Clamp Spacers
Hardware

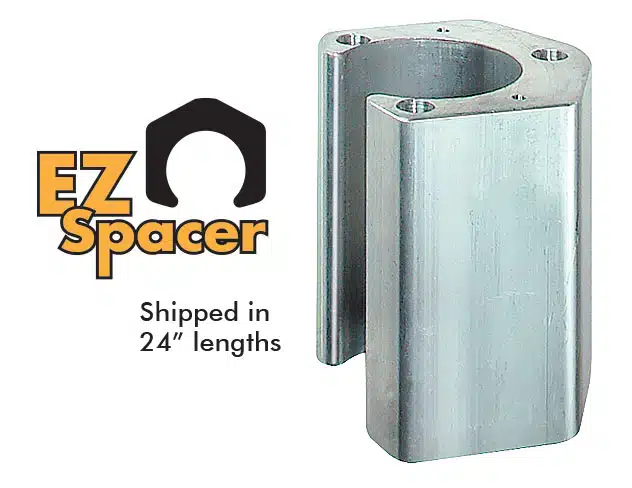

- Spacers ship in 24″ lengths. Customer required to cut spacer to the appropriate length and drill mounting and oil feed holes to the correct size for the applicable clamp.
- Material is extruded aluminum alloy.
Top Flange Swing Clamp and Push/Pull Cylinder EZ Spacer
| Spacer Model Number | Standard Swing Clamp Model Number | TuffCam Swing Clamp Model Number | Push/Pull Cylinder Model Number |
| 64-0409-01 | 15-XX05-00 – L/R/S | 15-6X05-XX – L/R/S | 25-XX05-00 |
| 64-0414-01 | 15-XX09-08 – L/R/S | 15-6X09-XX – L/R/S | 25-XX09-08 |
| 64-0417-01 | 15-XX13-11 – L/R/S | 15-6X13-XX – L/R/S | 25-XX13-11 |
High Pressure Link Clamp EZ Spacer
| Spacer Model Number | Link Clamp Model Number |
| 64-0410-01 | 16-6X04-00 |
| 64-0415-01 | 16-6X06-00 |
| 64-0418-01 | 16-6X09-00 |
| 64-0425-01 | 16-6X14-00 |
| 64-0431-01 | 16-6X16-00 |

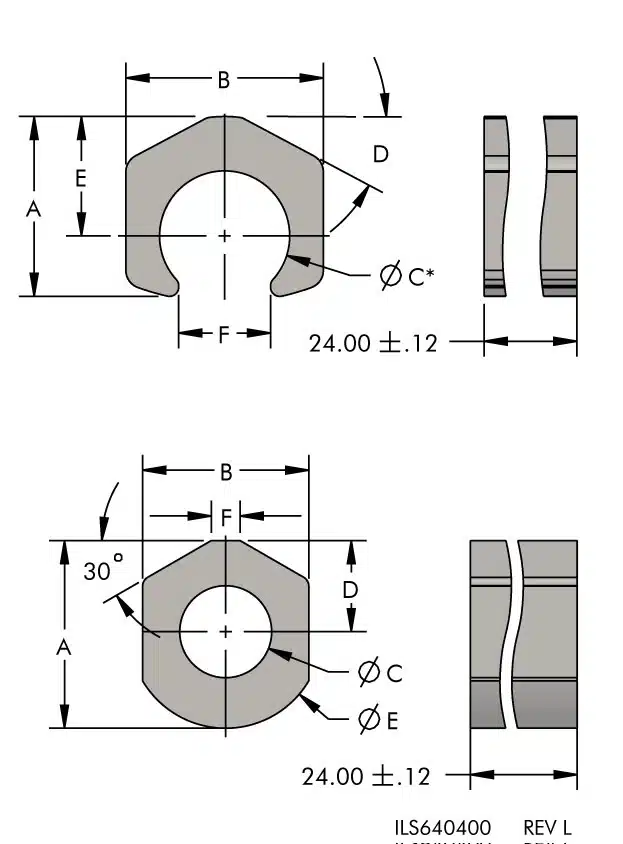

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 64-0409-01 | 450 | 1.45 | 1.88 | 1.02 | 28° | 1.02 | 0.75 |
| 64-0414-01 | 1100 | 1.97 | 2.31 | 1.45 | 28° | 1.32 | 1.25 |
| 64-0417-01 | 2600 | 2.45 | 2.69 | 1.77 | 28° | 1.63 | 1.25 |
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 64-0410-01 | 450 | 2.19 | 1.94 | 1.07 | 1.06 | 2.25 | 0.34 |
| 64-0415-01 | 1100 | 2.81 | 2.50 | 1.51 | 1.31 | 3.00 | 0.55 |
| 64-0418-01 | 2600 | 3.50 | 3.25 | 1.89 | 1.63 | 3.75 | 0.22 |
| 64-0425-01 | 5000 | 4.50 | 4.13 | 2.51 | 2.13 | 4.75 | 0.23 |
| 64-0431-01 | 6800 | 5.44 | 5.13 | 3.14 | 2.56 | 5.75 | 0.36 |
