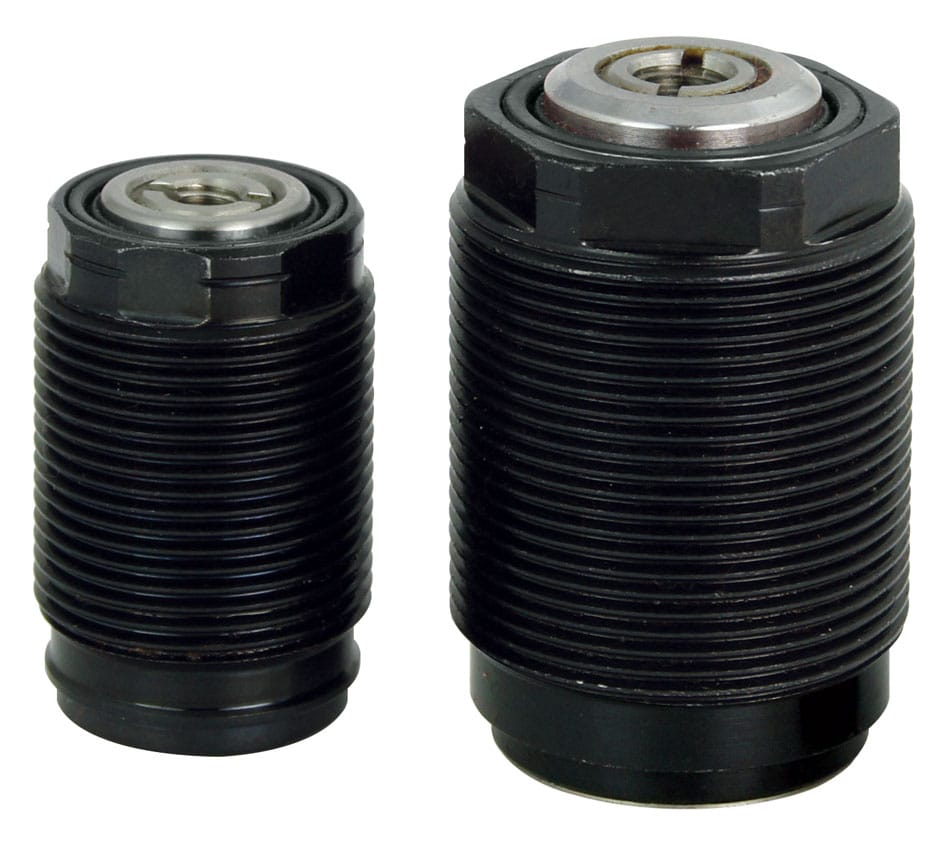

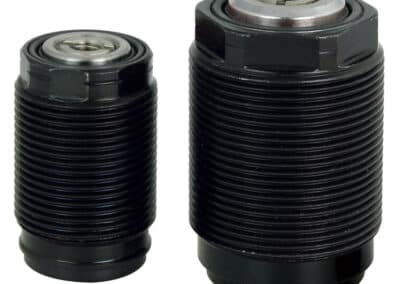

Air Advance, Cartridge
Work Supports
- Confirm capacity of item selected.
- Note the sealing surface finish requirements.
- Minimum depth specification represents the nominal depth of the standard Vektek base dimension.
- Confirm cavity drawing is appropriate for the model number used.
- Note specified thread depth when cutting threads.
- When using a bottoming tap tool modifications may be required.
- When hand tapping threads, perpendicularity is essential.
- The ‘fluid’ passage is located on the outer diameter and ‘vent’ passage is in the center.
Note: DIN ISO 2768 T1 and T2 not applicable
| Model No. | Support Capacity (kN) | Mounting Style | Hydraulic Connection | Contact Force (N) | Stroke (mm) | Retracted Height (mm) | Oil Capacity (cm³) | Minimum Pressure to Fully Extend |
|---|---|---|---|---|---|---|---|---|
| 41-0061-06 | 11 | Cartridge - Cavity | Thru Cavity | 35.5 | 9.5 | 52.5 | 0.33 | 0.69 |
| 41-0061-07 | 4.4 | Cartridge - Cavity | Thru Cavity | 17.5 | 6.5 | 41 | 0.16 | 0.48 |

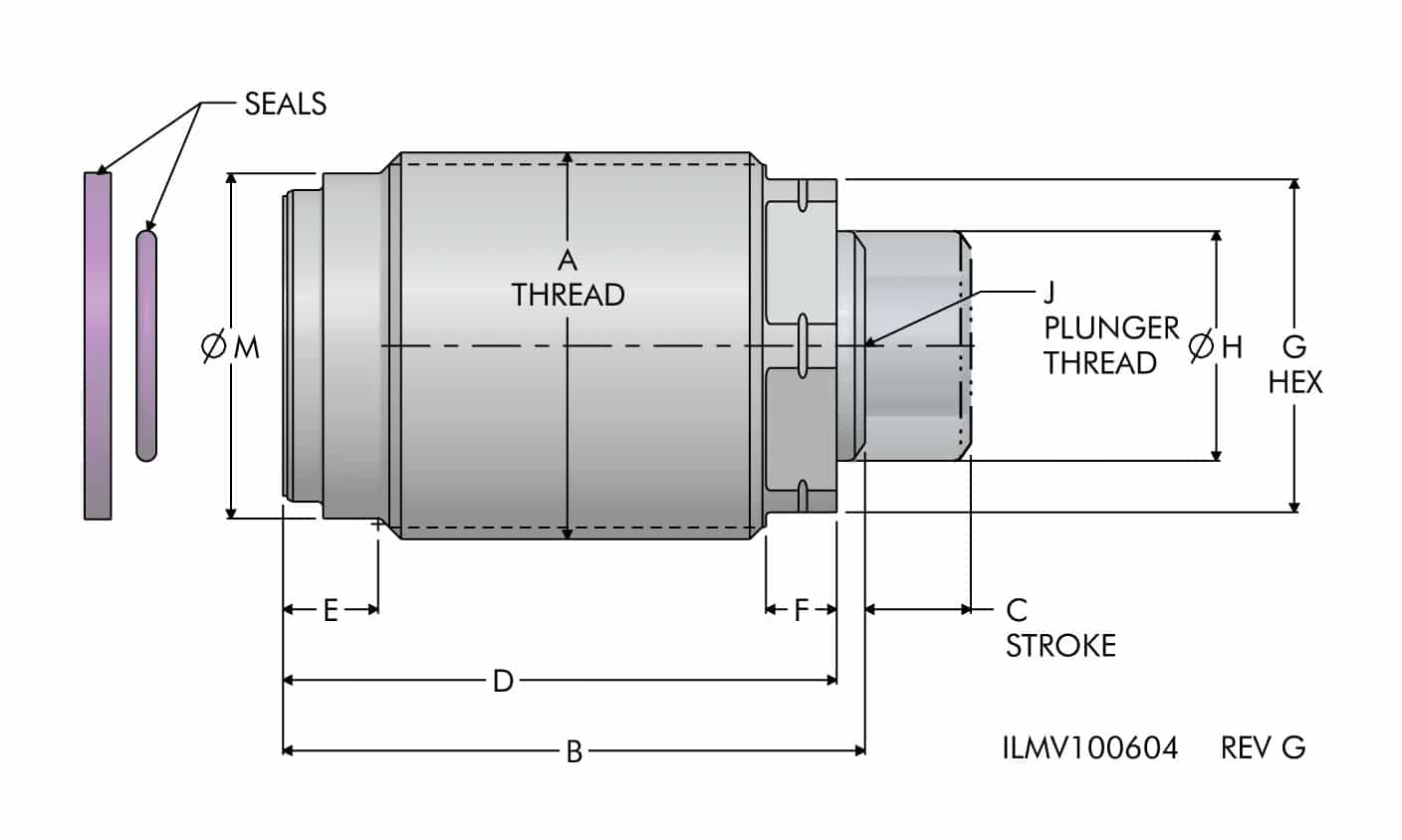

| Model No. | A | B | C | D | E | F | G | H | J | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 41-0061-06 | M35 X 1.5 | 52.5 | 9.5 | 49.5 | 8.5 | 6.5 | 30 | 20.5 | M8 X 1.25 X 6 | 31 |
| 41-0061-07 | M26 X 1.5 | 41 | 6.5 | 40.5 | 7.5 | 5.5 | 23 | 16 | M6 X 1 X 7.5 | 24 |
