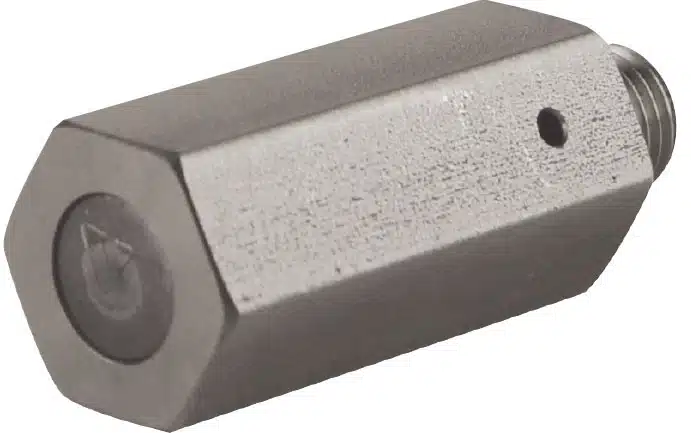

Over Pressure Relief
Accessory Valves
Protect Your Low Pressure Devices running within a High Pressure System
- SAE 4 male connection.
- Valve cartridge has a tamper proof plug.
- A set point of approximately 20% higher than system pressure is recommended.
- Leak-free operation before and after reseat condition.
- The only valve cartridge designed to bleed off excess pressure and re-seat at approximately 80% of set point.
- Valve cartridge will open to bleed off excess pressure in the event of over-pressurization.
- Screw in valve cartridge adds an extra element of assurance in systems where you must use a pressure sensitive device.

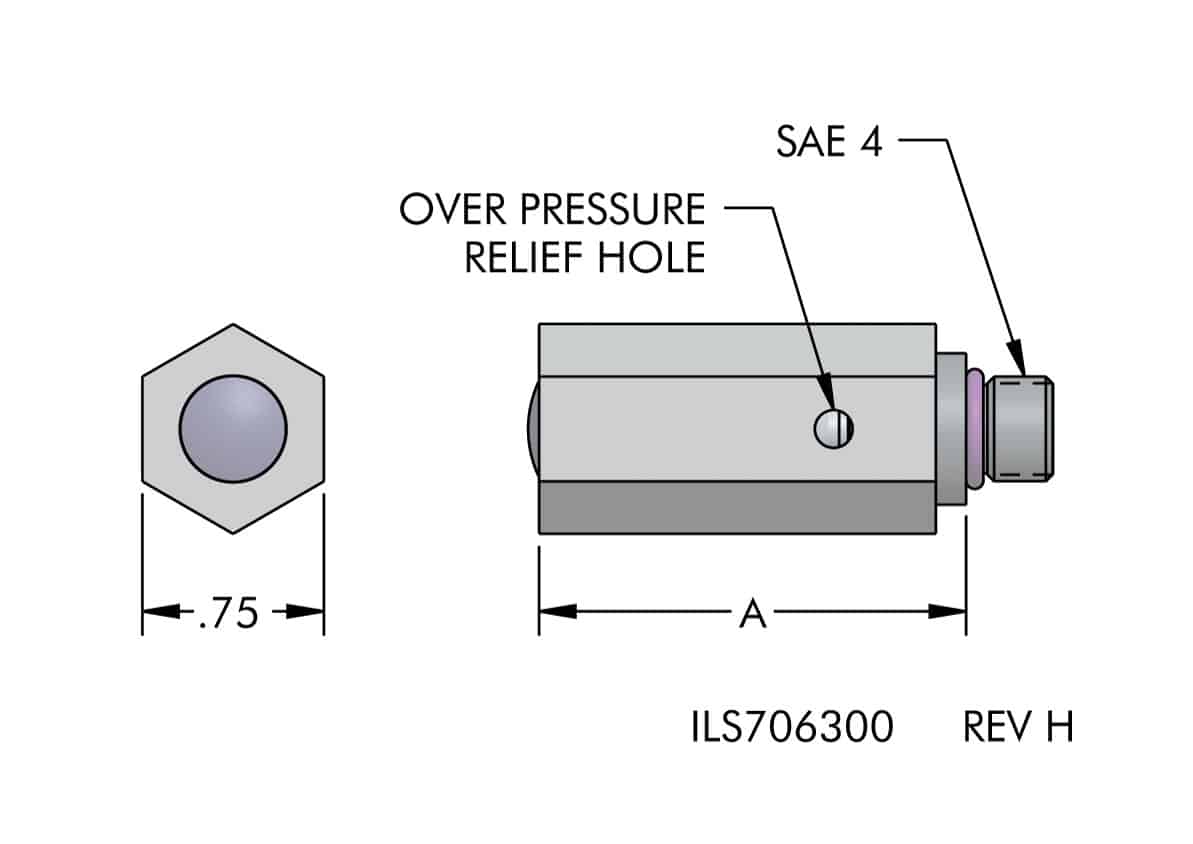

| Model No. | Set Point | A |
|---|---|---|
| 70-6336-70-45 | 4500 psi | 1.64 |
| 70-6336-70-50 | 5000 psi | 1.64 |
| 70-6336-70-55 | 5500 psi | 1.64 |
| 70-6336-70-60 | 6000 psi | 1.64 |
| 70-6336-71-03 | 300 psi | 1.77 |
| 70-6336-71-04 | 400 psi | 1.77 |
| 70-6336-71-05 | 500 psi | 1.77 |
| 70-6336-71-06 | 600 psi | 1.77 |
| 70-6336-71-07 | 700 psi | 1.77 |
| 70-6336-71-08 | 800 psi | 1.77 |
| 70-6336-71-09 | 900 psi | 1.77 |
| 70-6336-71-10 | 1000 psi | 1.77 |
| 70-6336-71-11 | 1100 psi | 1.77 |
| 70-6336-71-12 | 1200 psi | 1.77 |
| 70-6336-71-13 | 1300 psi | 1.77 |
| 70-6336-71-14 | 1400 psi | 1.77 |
| 70-6336-71-15 | 1500 psi | 1.77 |
| 70-6336-72-18 | 1750 psi | 1.77 |
| 70-6336-72-20 | 2000 psi | 1.77 |
| 70-6336-72-23 | 2250 psi | 1.77 |
| 70-6336-72-25 | 2500 psi | 1.77 |
| 70-6336-73-30 | 3000 psi | 1.77 |
| 70-6336-73-35 | 3500 psi | 1.77 |
| 70-6336-73-40 | 4000 psi | 1.77 |
