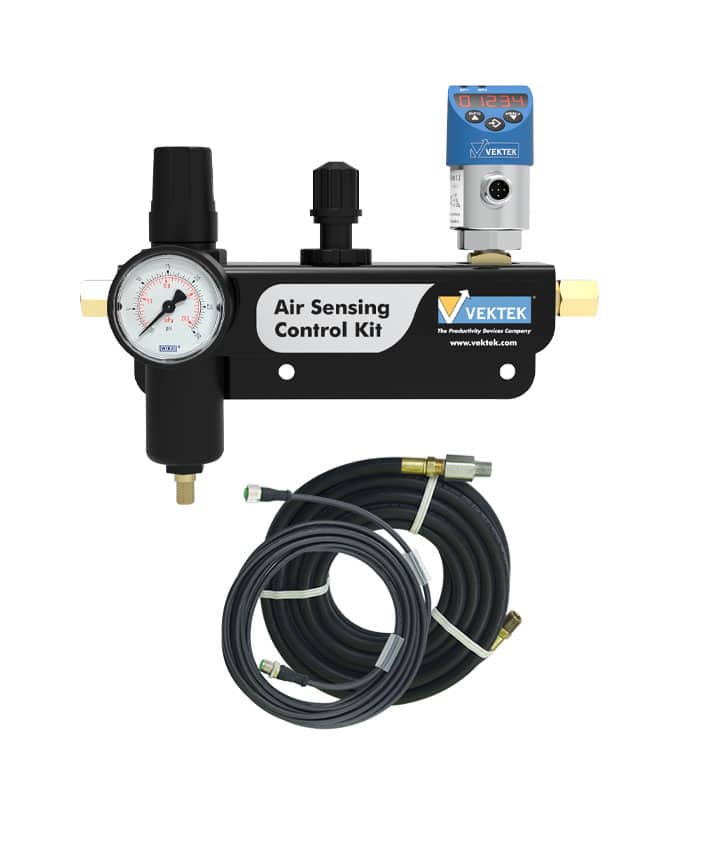

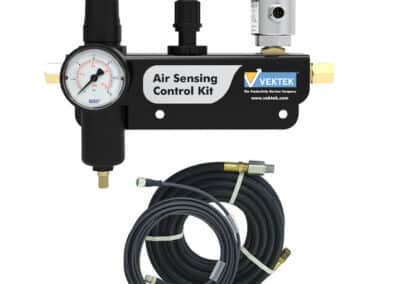

Air Sensing Control Kit
Metric Confirmation and Feedback
For Pneumatic Confirmation Systems
- Adjustable air pressure and flow gives you the ability to monitor most confirmation valves, part present or clamp position systems.
- Easy electronic pressure switch adjustment with 2 PNP/NPN digital set points and 1 analog output to meet your specific needs.
- Can be used with Pallet Decouplers, Pneumatic Confirmation Valves, Part Present Sensing Work Supports or self-made part location orifices.
- Ready-to-use kit with everything you need to feed back a confirmation signal of your choice!
| Model No. | Max Air Pressure | Pressure Range | Air Flow Rate | Filtration | Power Supply | Power Consumption | 2 Digital Contacts | 1 Analog Output |
|---|---|---|---|---|---|---|---|---|
| 45-0824-00 | 1379 kPa | 0 - 172 KPa | 20 CM/H Max | 5 micron | 15 - 32 VDC | 50 mA | N/O or N/C | 0 - 10V or 4 - 20 mA |
