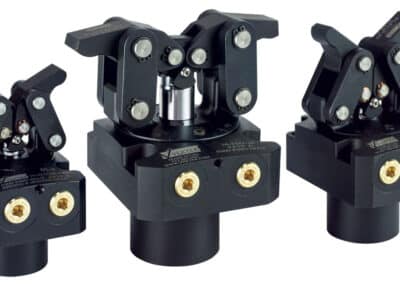

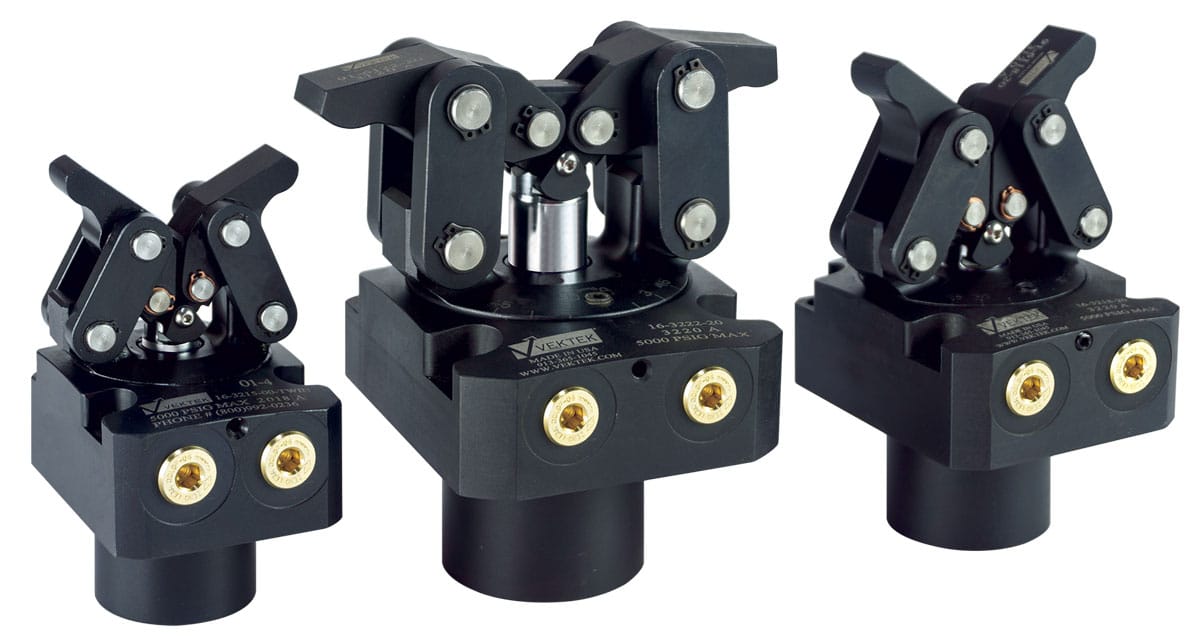

Top Flange Twin Lever Link Clamp

WORLD’S FIRST! Double Acting Rotary Lug

Made possible by Vektek’s patented equalizing system!
Patented rotary lug feature delivers 360 degrees of lever/body positioning. This simplifies internal porting and fixture design flexibility.
Available in 3 sizes, 1,100lb, 1,700lb, and 2,600lb total clamping force at 5,000 PSI.
Significantly increased vertical clamping stroke over standard link clamp allows access to clamp through a hole onto the surface of work piece.
Clamp on two parts with one link clamp.
For clamping when work piece surfaces are within 0.060 inches.
Top flange body can be manifold mounted or plumbed.
Levers sold separately.
Optional In The Port Flow Control is a meter-in device with reverse free flow check valve.
Optional In The Port Sequence Valve is a sequencing device with reverse free flow check valve.
Please reference Force Tables and Graphs.

Port Depth for Optional In-Port Valves: SAE 4 X .58 In-port valves require the use of manifold mount ports. Force equally divided between each side.

* Clamp capacities are listed at 5,000 PSI maximum operating pressure with a standard length link clamp lever installed. Total clamping force is divided equally between each side. Minimum operating pressure is 500 PSI for double acting. The clamping force is adjustable by varying the hydraulic system pressure. Use of an extended length lever will result in a reduction of clamp force. (Actual force will vary slightly due to mechanical inefficiencies, and friction.)
** Equal to ±10° with standard lever.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow to the above flow ratings when clamping. If you are unable to measure flow rates, these devices should be positioned in no less than 1/2 second. These recommendations apply when using the standard lever. When using the optional extended lever or your custom lever, please restrict the flow rates to position the lever in no less than 1 second.

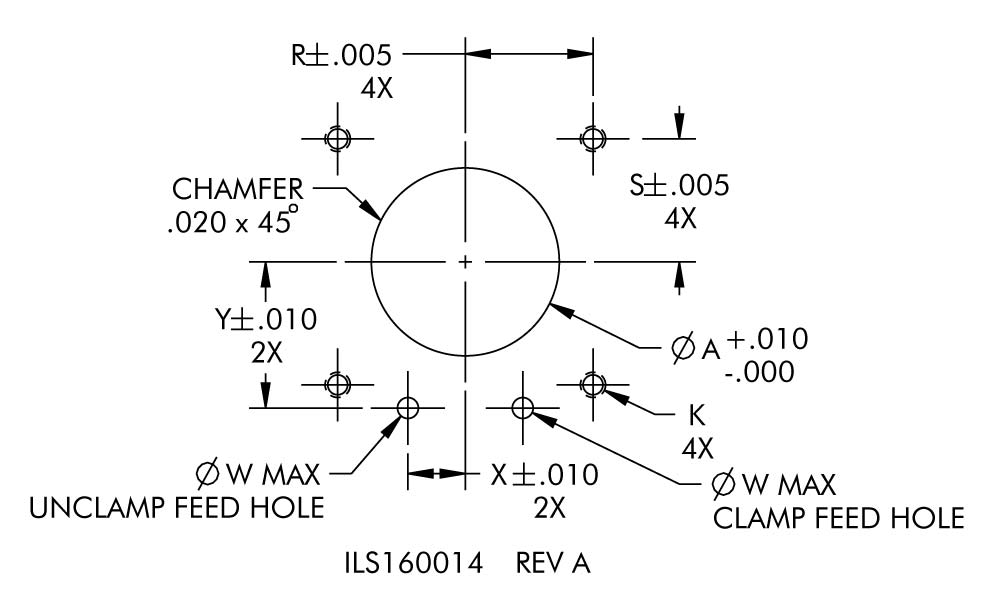

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

Top Flange Position Sensing Double Acting Mounting

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

Model No.	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Piston Area (sq. in.) Extend	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Maximum Oil Flow Rate (cu. in./min)
16-3215-20	1100	.018	0.274	0.141	0.051	17
16-3218-20	1700	0.24	0.394	0.259	0.080	31
16-3222-20	2600	0.29	0.616	0.511	0.186	61

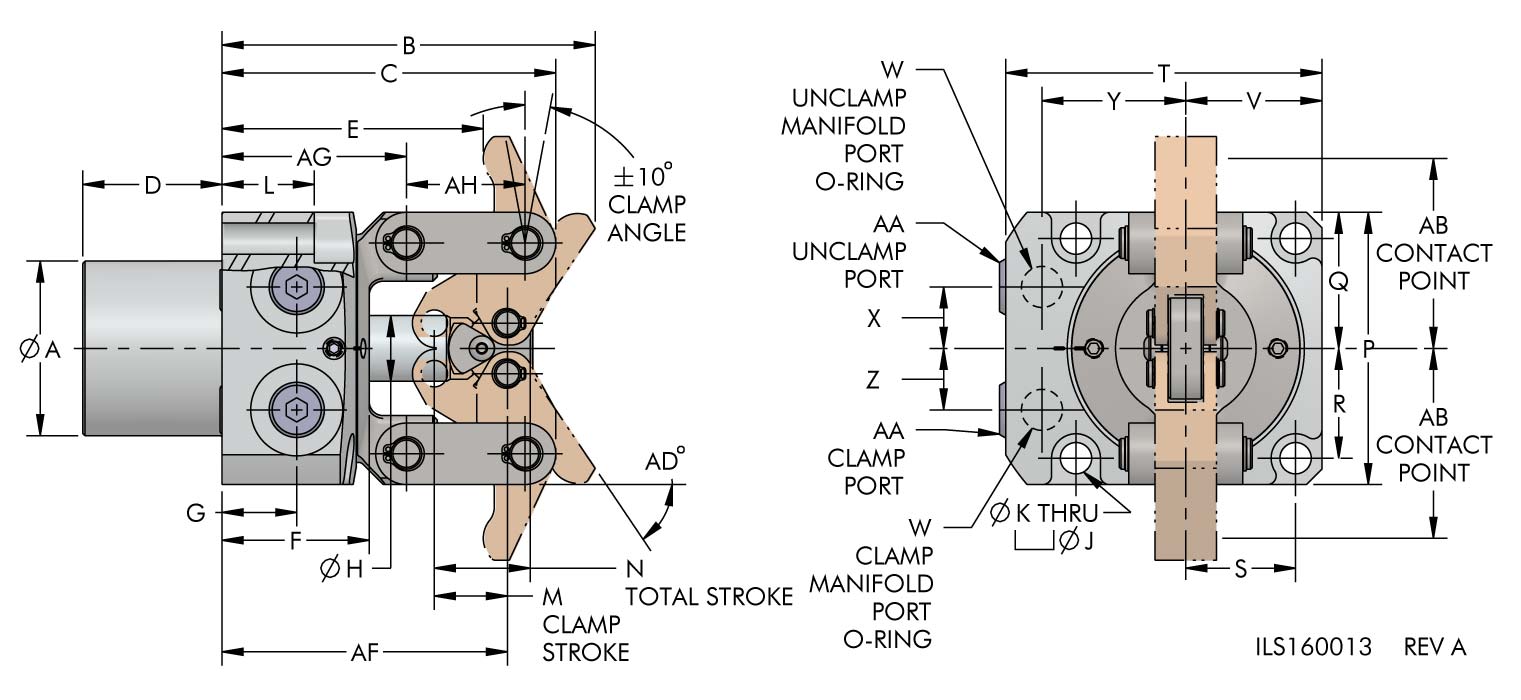

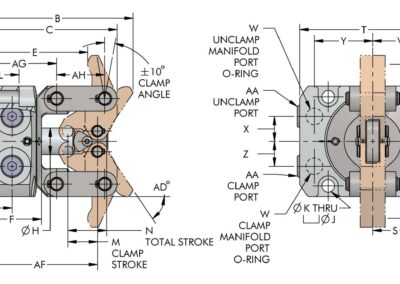

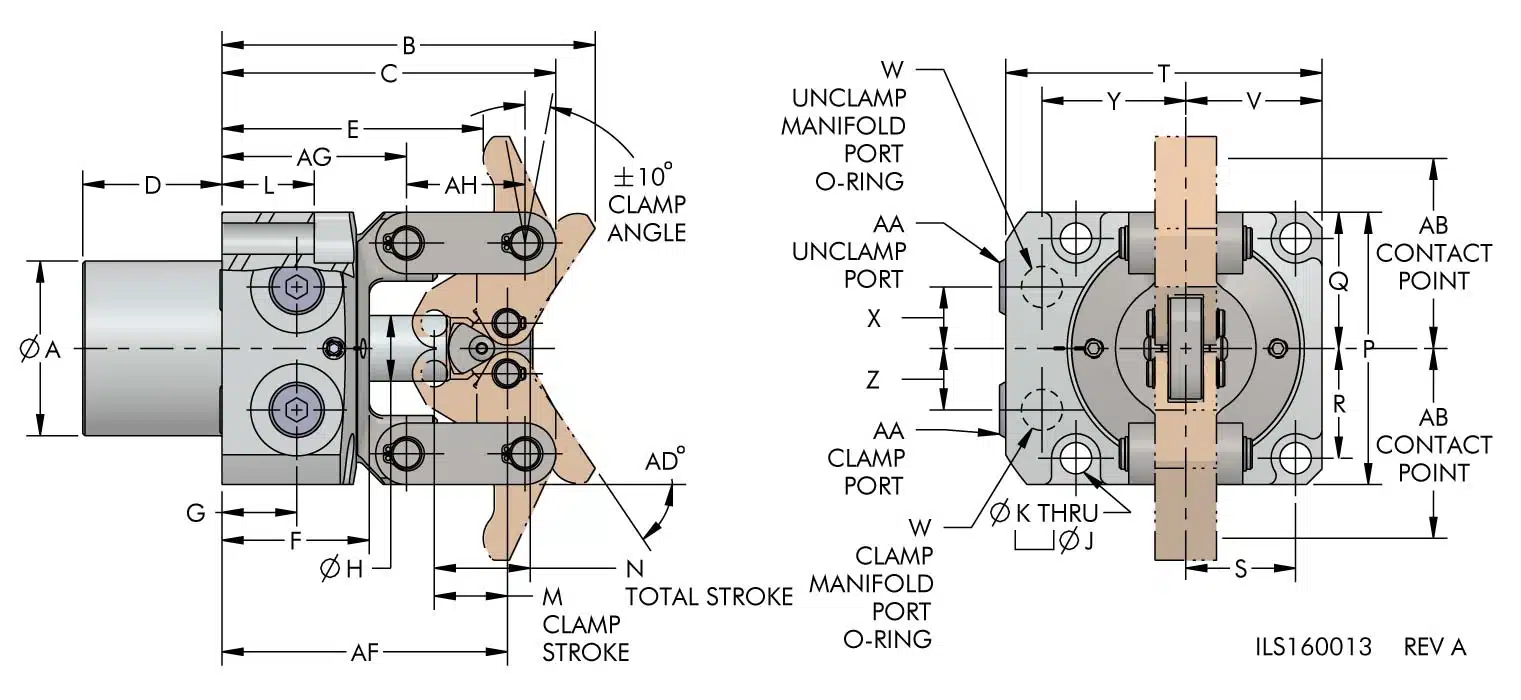

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AD	AF	AG	AH
16-3215-20	1.408	2.94	2.64	1.008	2.09	1.28	0.67	0.47	0.38	0.22	0.88	0.51	0.64	1.969	0.984	0.797	0.797	2.402	0.984	2-011	0.433	1.093	0.43	SAE 4	1.38	54	2.283	1.555	0.846
16-3218-20	1.566	3.35	2.99	1.248	2.34	1.32	0.67	0.59	0.44	0.28	0.83	0.65	0.86	2.441	1.220	0.985	0.985	2.835	1.220	2-011	0.551	1.289	0.55	SAE 4	1.70	56	2.559	1.654	1.063
16-3222-20	1.881	3.76	3.31	1.508	2.54	1.34	0.67	0.71	0.53	0.34	0.75	0.83	1.07	2.953	1.476	1.188	1.188	3.445	1.476	2-011	0.630	1.644	0.63	SAE 4	2.03	54	2.874	1.752	1.201
