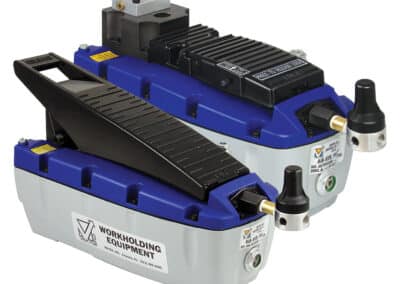

Compact Air/Hydraulic Pump
Power Supplies
- Shown mounted horizontally, to vertical mount, the air inlet must be pointed up.
- Suitable for most single fixtures and small pallet systems.
- Noise level, 75 Db. at four feet.
- Long life, shown to perform over three times longer than comparable equipment.

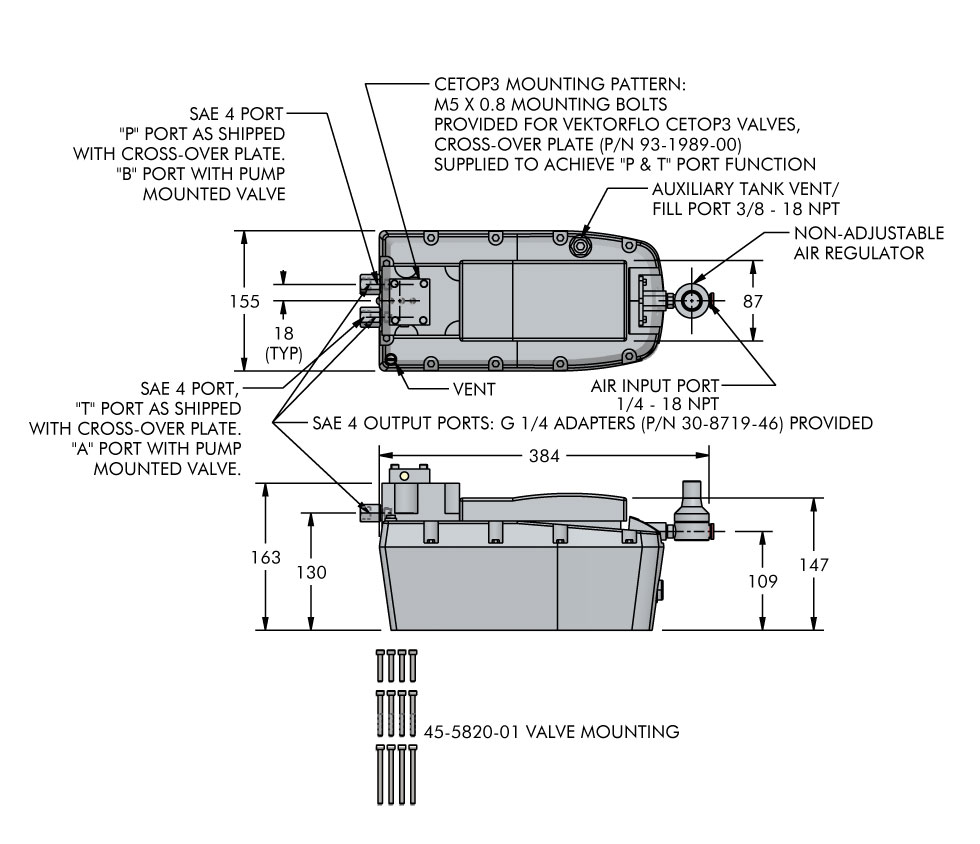

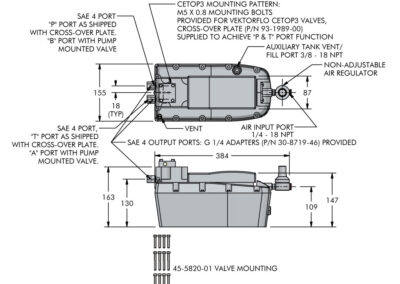

Compact Air/Hydraulic Pump
Valve Needed 45-5820-01
- Suitable for operating either single or double acting systems.
- Valves can be mounted directly on the pump or remotely, no external sub-plate is necessary.

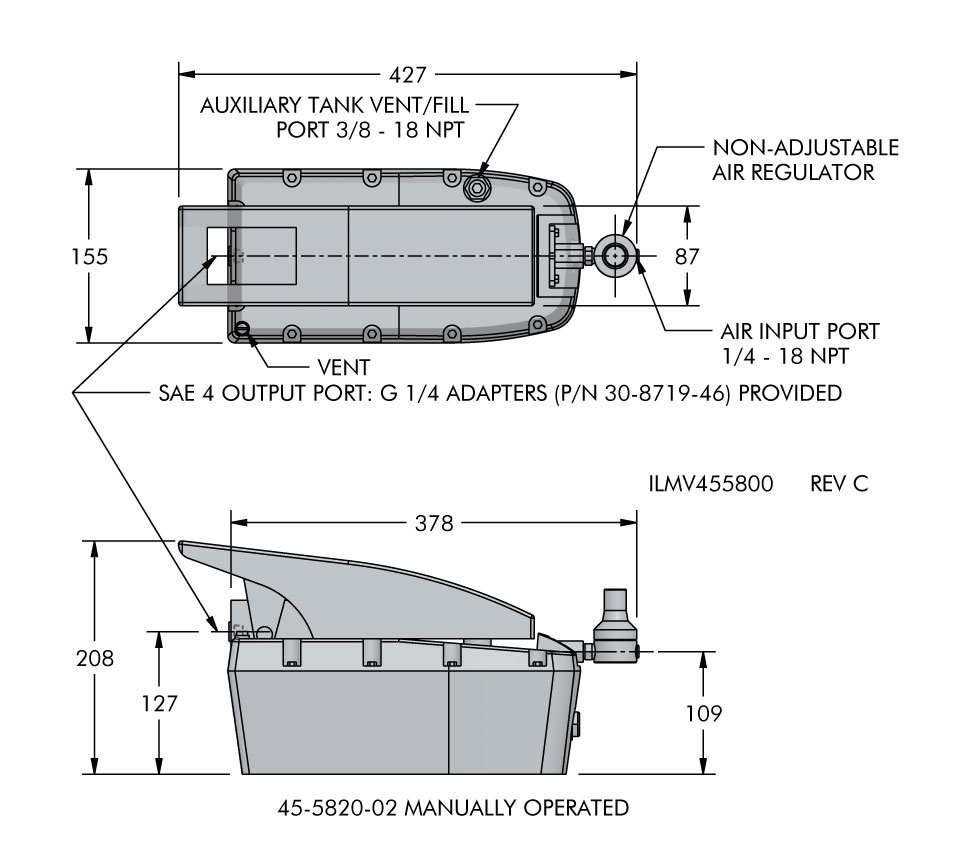

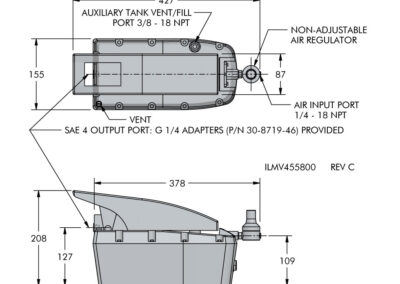

Compact Air/Hydraulic Treadle Pump
Manual 45-5820-02
- For Single Acting Systems only.
- Control valve built-in, no external valves are required or recommended.
- Mounting hardware included.
- Easily operated by hand or foot; press to pump, press to release. Pump does not run unless treadle is pressed to activate function.
WARNING! Use of spool valves invalidates the warranty on VektorFlo® pumps
| Model No. | Horizontal Reservoir Capacity | Vertical Reservoir Capacity | Minimum Air Input Pressure | Maximum Air Input Pressure | Pressure Range | Weight |
|---|---|---|---|---|---|---|
| 45-5820-01 | Gross - 2.4 L / Useable - 2.1 L | Gross - 2.2 L / Useable - 1.5 L | 2.76 bar | 5.86 bar | 138 - 345 bar | 7.4 kg |
| Model No. | Horizontal Reservoir Capacity | Vertical Reservoir Capacity | Minimum Air Input Pressure | Maximum Air Input Pressure | Pressure Range | Weight |
|---|---|---|---|---|---|---|
| 45-5820-02 | Gross - 2.4 L / Useable - 2.1 L | Gross - 2.2 L / Useable - 1.5 L | 2.76 bar | 5.86 bar | 138 - 345 bar | 7.4 kg |
