“A” Pilot Operated Check Valve

Shutoff and Check Valves

• Sealed pilot piston eliminates cross circuit leakage.
• 5:1 Ratio of Pilot to Check pressure for release.
• Filters on each port location.
• Unclamp device sequencer, provides a way to sequence single circuit unclamp timing.
• Requires a “B” pilot to open “A” line check valve (requires a double acting control valve to operate single acting systems).
• Stainless steel inner valve construction.
• Maximum operating pressure 5,000 psi.

NOTE: Field repair requires a special Check Valve Installation Tool. Please order Model No. 65-6000-00.

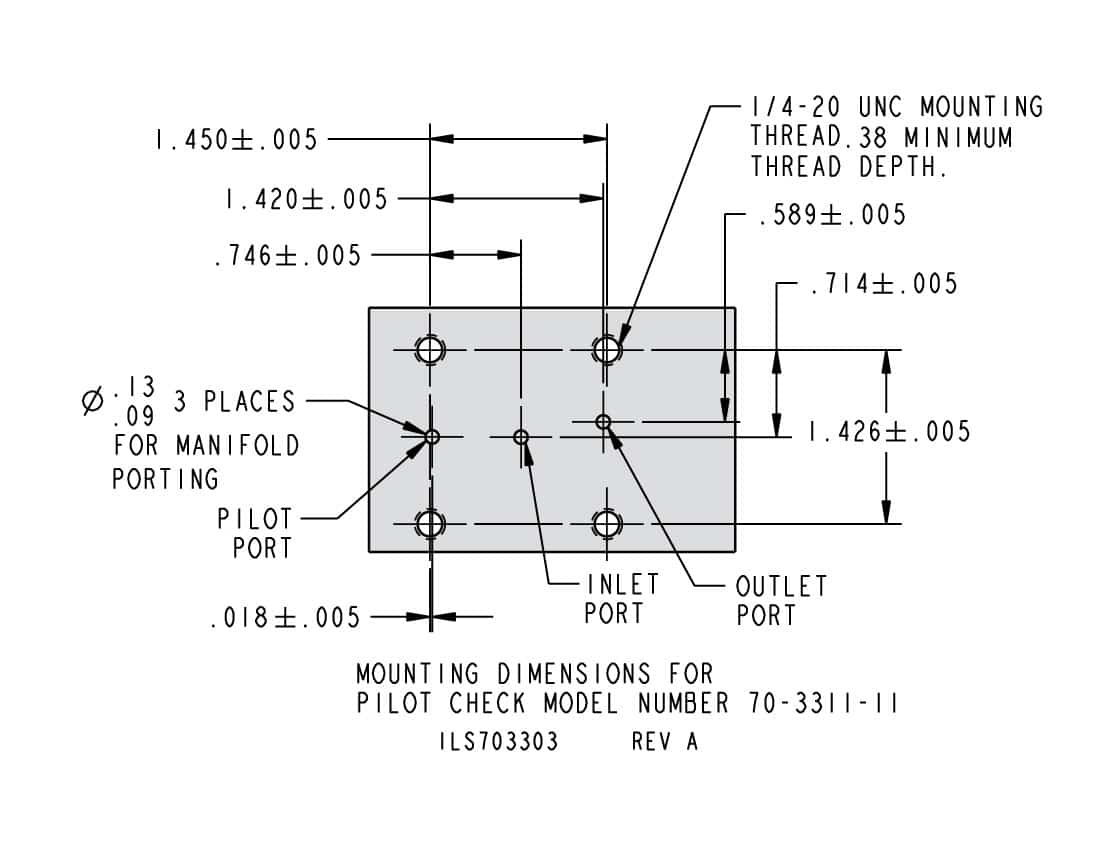

For proper sealing, mating surface must be flat within 0.003 in with a maximum 63 µ in R_a surface finish.
