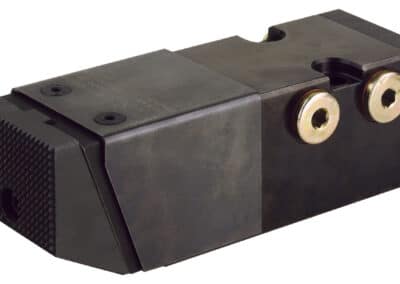

Double Acting Pull-Down Clamp
Special Use Clamps
- Use whenever lateral clamping is desired.
- Body material is burnished tempered steel with case-hardened ground pistons.
- Generates straight and pull-down clamping force.
- Pull-down force is approximately 1/3 of the respective clamping force.
- The shipped version has serrated and hardened jaws, complete with mounting bolts. Other optional jaws are available in this section.
- To protect against contamination a wiper is installed at the clamping bolt.
- Complete with four (4) fastening screws.
- Oil supply through threaded ports or manifold.

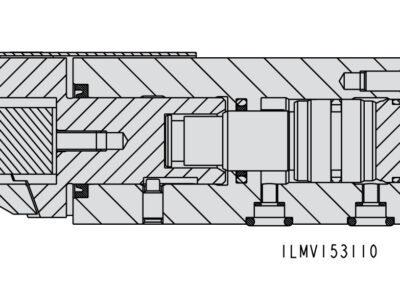

Double acting design assures clamp release for automated or time critical operation. Jaws and pistons are connected by a joint that avoids the introduction of a bending movement to the piston and extends clamp life.
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
NOTE: Do not overstress mounting bolts. Observe maximum permissible torque. Maximum operating pressure 400 bar (40 MPa).
| Model No. | Force at 400 bar (40 MPa) (kN) - Clamp | Force at 400 bar (40 MPa) (kN) - Unclamp | Stroke (mm) | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) | Mounting Bolt | Torque Maximum (Nm) | Weight |
|---|---|---|---|---|---|---|---|---|
| 41-5320-20 | 20 | 9.6 | 10 | 4.9 | 2.5 | M8 X 60 (4 pieces) | 25 | 2900 g |

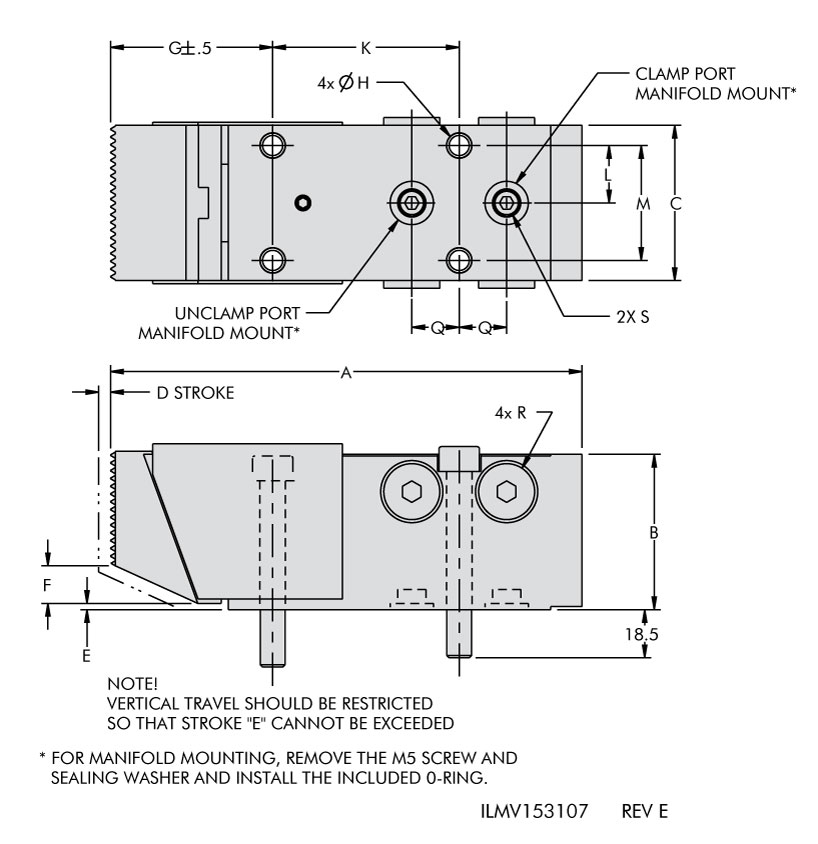

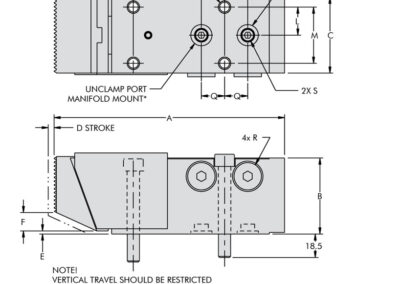

| Model No. | A | B | C | D | E | F | G | H | K | L | M | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-5320-20 | 156 | 50 | 50 | 10 | 3 | 14 | 56.5 | 8.5 | 60 | 18.5 | 37 | 15.25 | G 1/4 | M5 |
