In-Line Flow Control

Low Pressure Accessory Valves

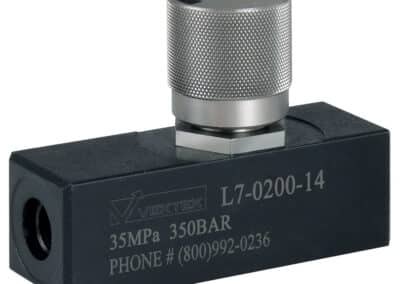

Precision Flow Control Valve

• Precision flow adjustment with 0.4 mm pitch needle valve.
• Protect sensitive components from excessive flow.
• For single component or system control.
• Flow controls used as meter-in devices in clamping systems to prevent damage.
• Flows up to 11.3 l/min at 350 bar (35 MPa) maximum pressure.
• Check valve for reverse free flow.
• Stainless steel inner valve construction.
• Fluorocarbon seals are standard.
• Locking adjustment knob preventing change in flow.
