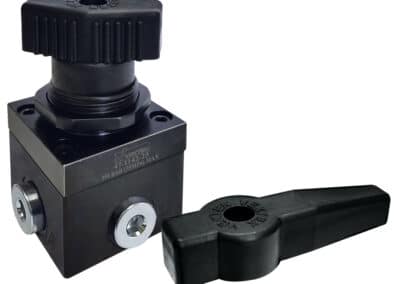

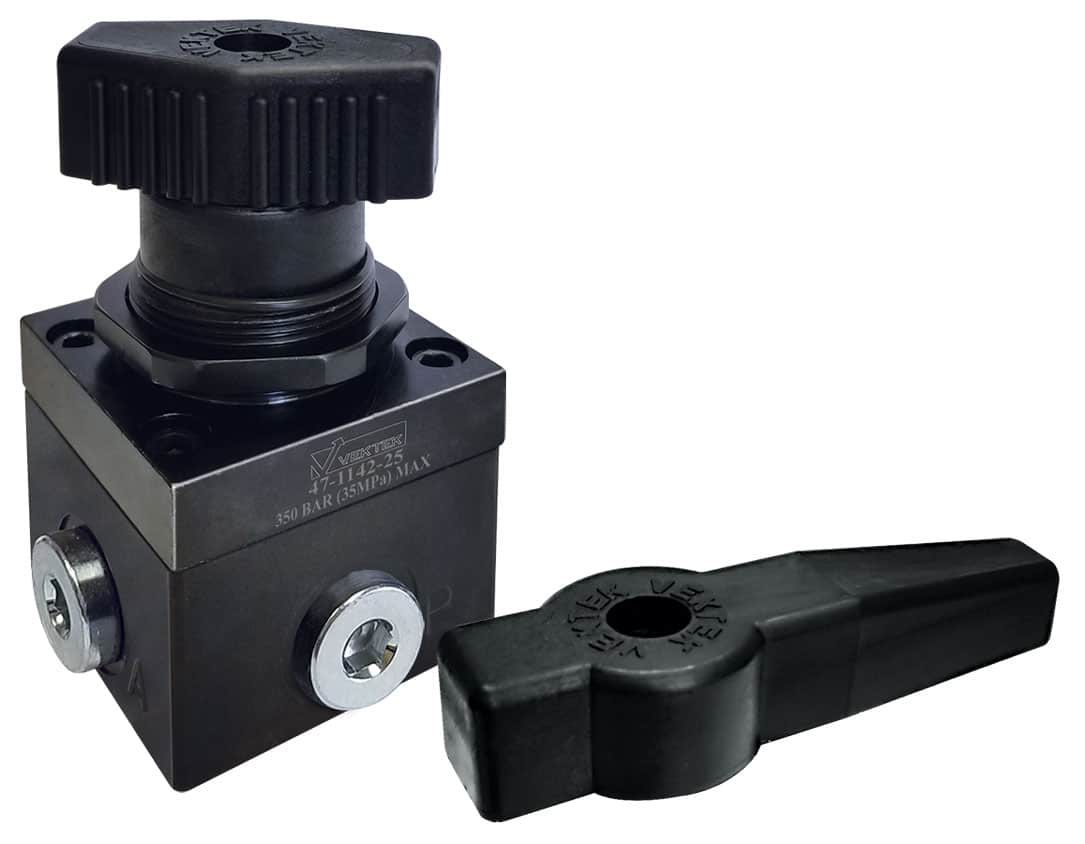

Manual Control Valve: 4-Port, 3-Position
Metric Directional Control Valves
- These valves can be used to control a double acting workholding system. (May also be used to control single acting systems).
- Rotary handle motion uses a rotary bearing.
- Heat treated rotor and poppets are spring and pressure loaded against each other to provide positive fluid control for hundreds of thousands of cycles.
- All valves ship with short and long handles.
- Handle orientation can be adjusted in 45° increments.
NOTE: Maximum system flow rate is 5.7 L/m for all VektorFlo® metric valves unless otherwise noted. Excess flow voids warranty.

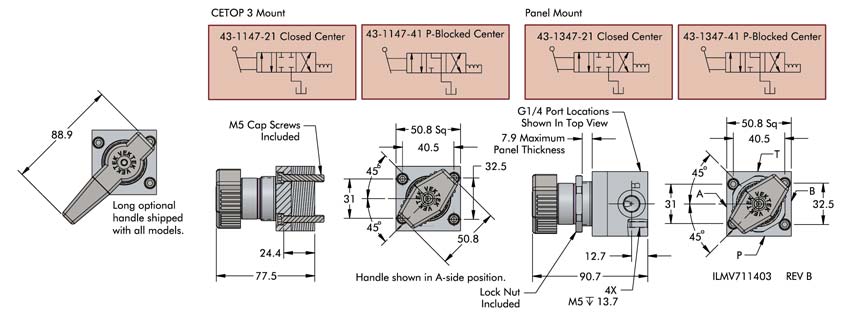

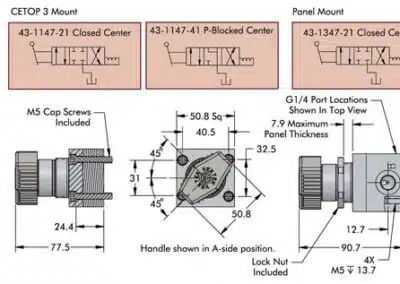

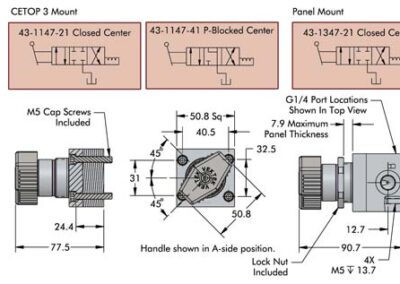

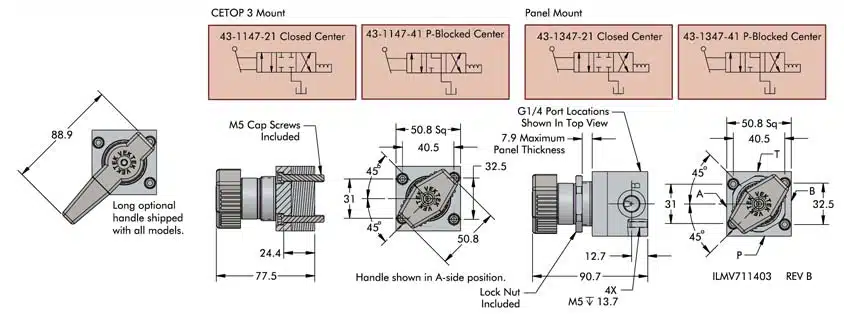

| Model No. | Valve Configuration | Valve Mounting | Fluid Flow Maximum | Tank Port Pressure |
|---|---|---|---|---|
| 43-1147-21 | Closed Center | CETOP 3 | 5.7 l/min | 17 Bar (1.7 MPa) |
| 43-1147-41 | P-Blocked Center | CETOP 3 | 5.7 l/min | 17 Bar (1.7 MPa) |
| 43-1347-21 | Closed Center | Panel Mount | 5.7 l/min | 17 Bar (1.7 MPa) |
| 43-1347-41 | P-Blocked Center | Panel Mount | 5.7 l/min | 17 Bar (1.7 MPa) |
