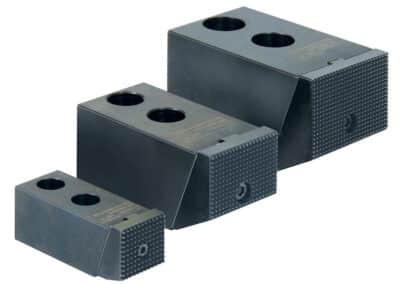

Pull-Down Counter-Hold Clamps
Special Use Clamps
- Complements the pull-down clamp by pulling the workpiece down when straight clamping force is applied.
- Clamping bolt is behind the jaw, keeps clamping jaw from rising.
NOTE: The maximum pull-down stroke of the jaw must not exceed Dimension F.
| Model No. | Description | Pull Down Force (lb.) | Recommended Mounting Bolts (not supplied) |
|---|---|---|---|
| 15-3105-02 | MECHANICAL COUNTERHOLD FOR PULL DOWN CLAMP 15-3105-00 | 290 | 5/16 |
| 15-3110-02 | MECHANICAL COUNTERHOLD FOR PULL DOWN CLAMP 15-3110-00 | 1300 | 7/16 |
| 15-3112-02 | MECHANICAL COUNTERHOLD FOR PULL DOWN CLAMP 15-3112-00 | 2100 | 5/8 |
| Model No. | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 15-3105-02 | 3.11 | 1.18 | 1.18 | 1.61 | 1.65 | 0.08 | 1.02 | 0.12 | 0.33 THRU 0.55 C`BORE x 0.31 DEEP | N/A |
| 15-3110-02 | 4.02 | 1.97 | 1.97 | 2.32 | 2.36 | 0.12 | 1.18 | 0.55 | 0.49 THRU 0.78 C`BORE x 0.51 DEEP | 1.10 C`BORE x 0.24 DEEP |
| 15-3112-02 | 4.49 | 2.56 | 2.56 | 2.40 | 2.44 | 0.12 | 1.46 | 0.67 | 0.65 THRU 1.00 C`BORE x 0.71 DEEP | 1.26 C`BORE x 0.24 DEEP |
