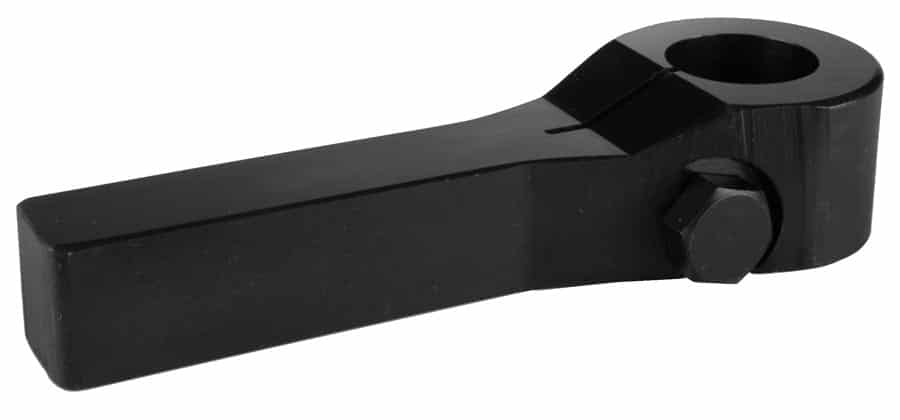

Swing Clamp Arms, Low Profile, Extended
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.
* Use 91-5218-13 with the low profile swing clamps, models 14-2718-XX and 14-2818-XX. Use 91-5221-07 with low profile swing clamps model 14-0521-XX, 14-0621-XX, 14-2121-XX,
and 14-2221-XX.
NOTE: Replacement Cap Screw for 91-5218-13 is model number 21-5000-24. Replacement Cap Screw for 91-5221-07 is model number 21-5000-28.
It is recommended that the cross bolt is replaced if the arm needs to be removed after it has been in service

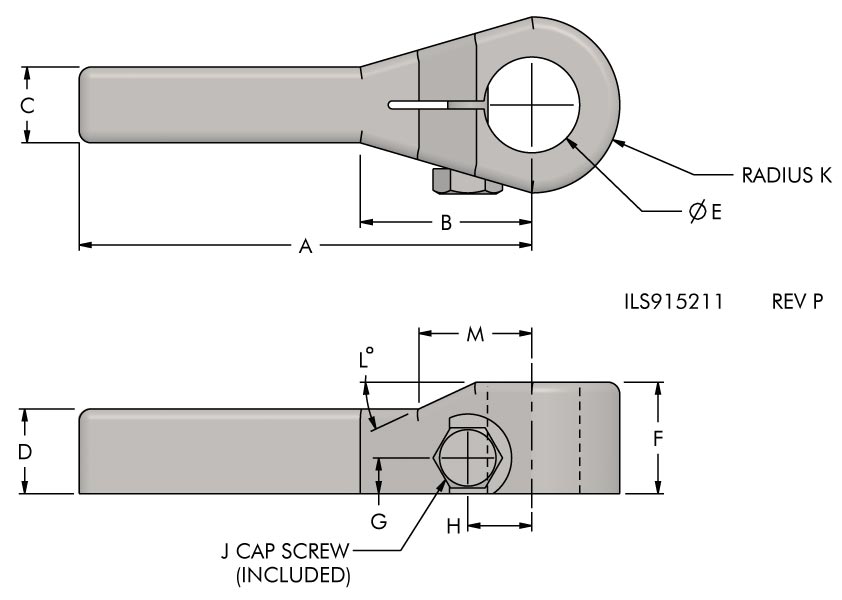

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5218-13 | 5000 | 6.50 | 2.69 | 1.13 | 0.73 | 1.2500 / 1.2520 | 1.73 | 0.50 | 0.88 | M16 X 1.50 | 1.00 | 25° | 2.92 |
| 91-5221-07 | 7500 | 7.10 | 2.77 | 1.19 | 1.33 | 1.5005 / 1.5025 | 1.75 | 0.56 | 1.00 | M16 X 1.50 | 1.38 | 25° | 1.77 |
