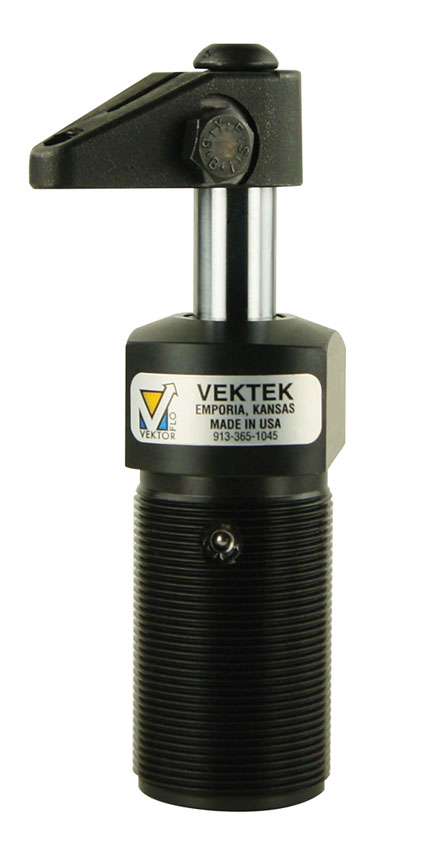

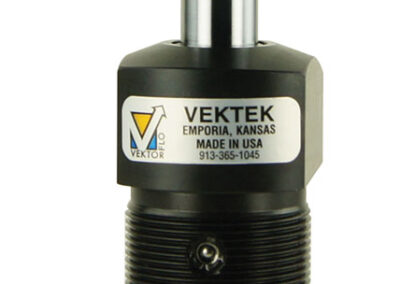

VersaCam Threaded Body 37° Flare Swing Clamps
Single and Double Acting
- Clamp position repeatability of ±0.50°
- To avoid cylinder damage and preserve warranty use recommended flow rate limits and time calculations.
- Arm clocking feature is compatible with all standard Vektek arms.
- Standard swing is 90° swing angles less than 90° require Swing Restrictors. Swings angles greater than 90° are special order products.
Download our Swing Clamp Arm Installation and Adjustment Guide for clear, step-by-step instructions on correctly installing and adjusting swing clamp arms.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
**** To ensure maximum service life and trouble-free operation, restrict fluid flow per Flow Rate Chart.
Warning: Never allow swing arm to contact workpiece or fixture during arm rotation.
*** To allow for piece part height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
**** To ensure maximum service life and trouble-free operation, restrict fluid flow per Flow Rate Chart.
Warning: Never allow swing arm to contact workpiece or fixture during arm rotation.

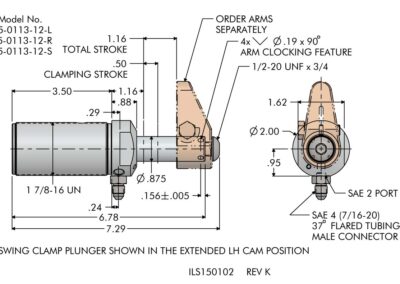

| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Body Thread | Standard Arm Length | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|---|
| 15-0113-12-L | Left | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
| 15-0113-12-R | Right | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
| 15-0113-12-S | Straight | 2600 | 1.16 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
